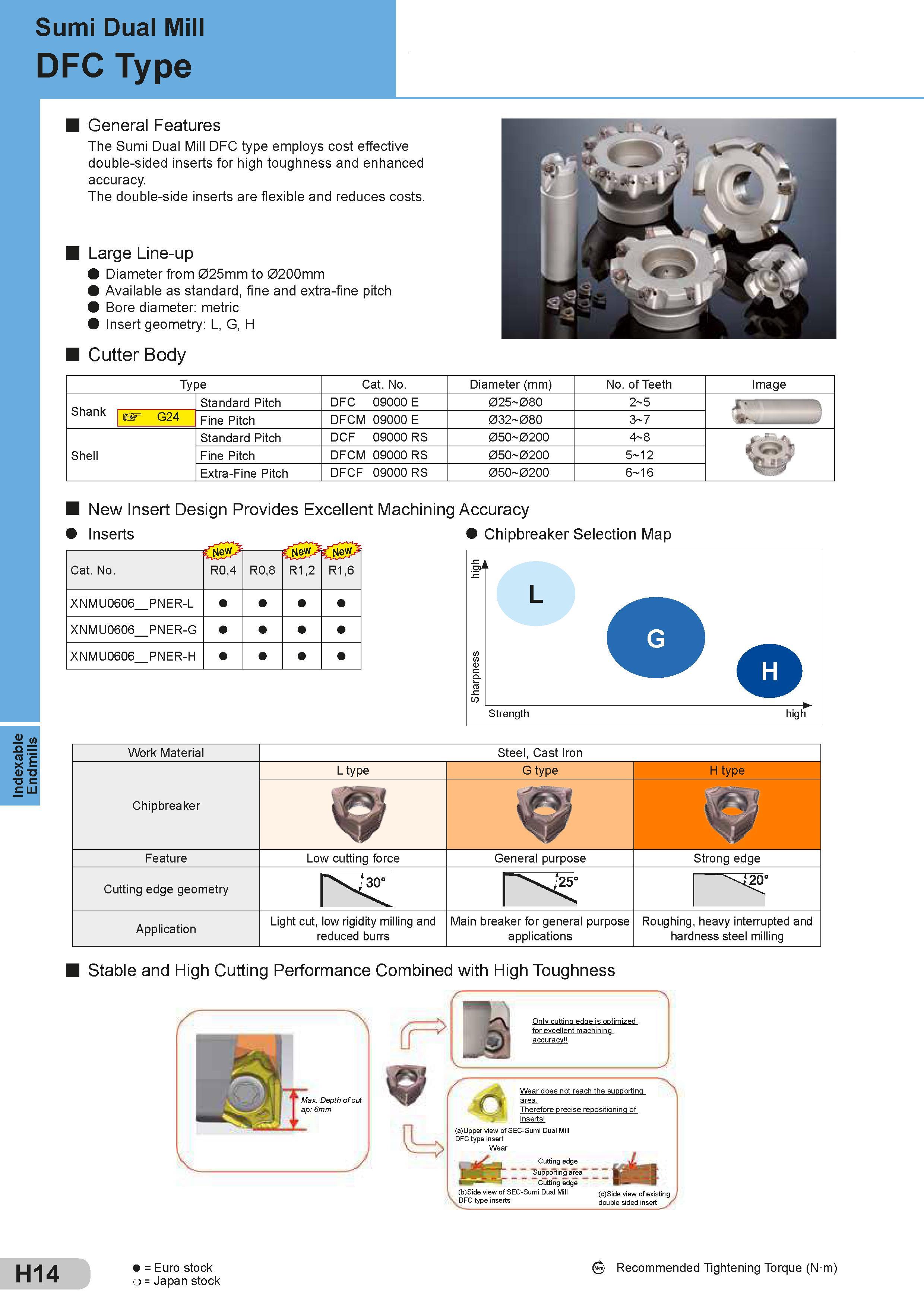

Indexable Endmills Sumi Dual Mill DFC Type H14 General Features The Sumi Dual Mill DFC type employs cost effective double-sided inserts for high toughness and enhanced accuracy. The double-side inserts are flexible and reduces costs Large Line-up Diameter from 025mm to 0200mm Available as standard, fine and extra-fine pitch Bore diameter: metric Insert geometry: L, G, H Cutter Body Type Cat. No. Diameter (mm) No. of Teeth Количество режущих зубьев Image Standard Pitch DFC 09000 E 025 080 2 5 Shank G24 Fine Pitch DFCM 09000 E 032 080 3 7 Standard Pitch DCF 09000 RS 050 0200 4 8 p- Shell Fine Pitch DFCM 09000 RS 050 0200 5 12 O r Extra-Fine Pitch DFCF 09000 RS 050 0200 6 16 New Insert Design Provides Excellent Machining Accuracy Inserts Cat. No. R0,4 R0,8 R1,2 R1,6 XNMU0606 PNER-L XNMU0606 PNER-G XNMU0606 PNER-H Chipbreaker Selection Map Work Material Steel, Cast Iron Chipbreaker L type G type H type <7 H Feature Low cutting force General purpose Strong edge Cutting edge geometry "nNs 30 “ 25° Application Light cut, low rigidity milling and reduced burrs Main breaker for general purpose applications Roughing, heavy interrupted and hardness steel milling Stable and High Cutting Performance Combined with High Toughness 'N Only cutting edge is optimized ’ for excellent machining Wear does not reach the supporting area. Therefore precise repositioning of inserts (a)Upper view of SEC-Sumi Dual Mill DFC type insert Wear Cutting edge Supporting area Cutting edge (b)Side view of SEC-Sumi Dual Mill (c)Side view of existing DFC type inserts double sided insert accuracy = Euro stock Recommended Tightening Torque (N m) o = Japan stock
