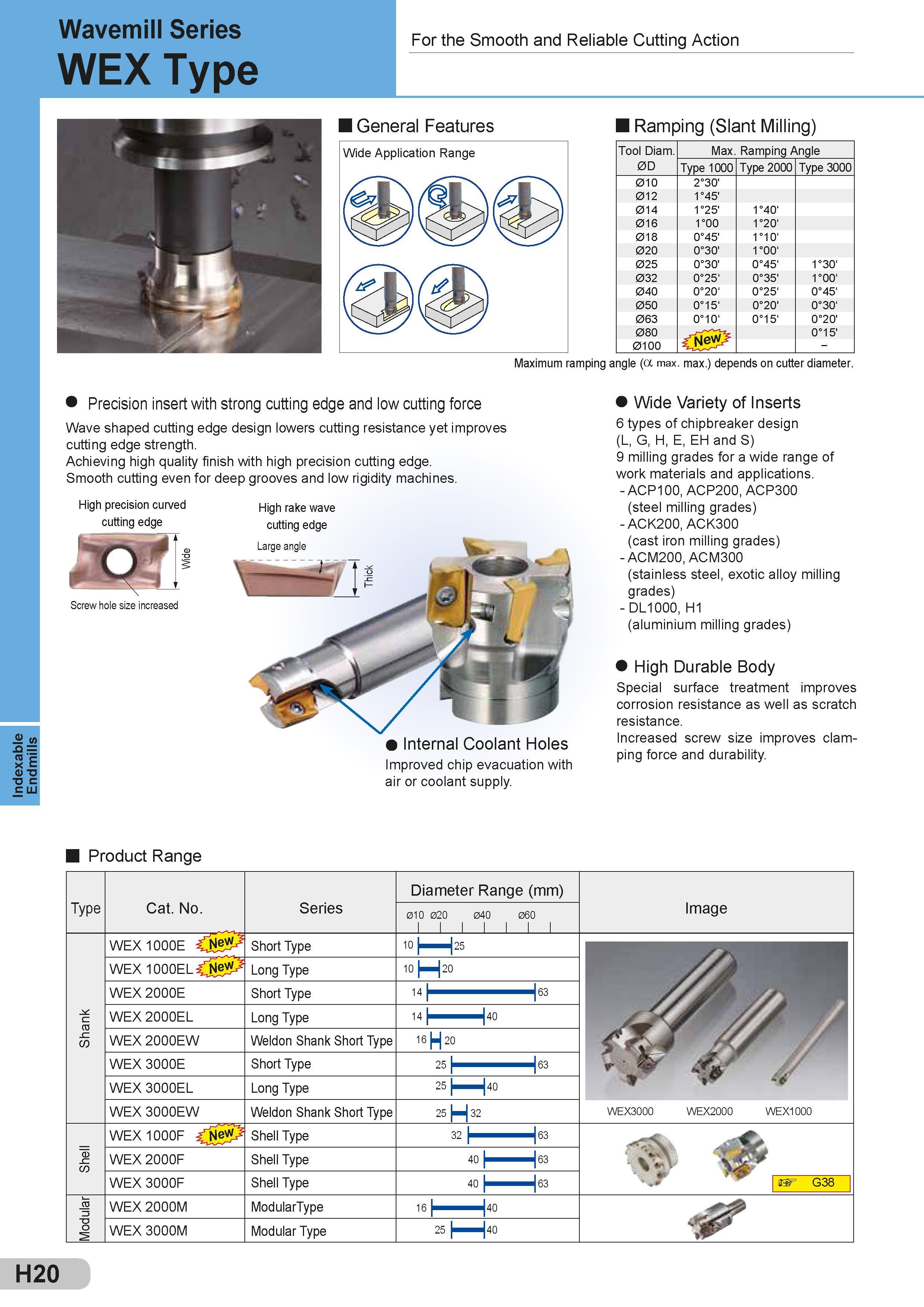

Indexable Endmills Wavemill Series WEX Type For the Smooth and Reliable Cutting Action General Features Ramping (Slant Milling) Tool Diam. 0D Max. Ramping Angle Type 1000 Type 2000 Type 3000 010 2°30' 012 1°45' 014 1°25' 1°40‘ 016 1°00 1°20‘ 018 0°45' 1°10‘ 020 0°30' 1°00‘ 025 0°30' 0°45‘ 1°30‘ 032 0°25‘ 0°35' 1°00‘ 040 0°20‘ 0°25‘ 0°45‘ 050 0°15‘ 0°20' 0°30‘ 063 0°10‘ 0°15‘ 0°20' 080 0100 0°15' Maximum ramping angle (a max. max.) depends on cutter diameter. Precision insert with strong cutting edge and low cutting force Wave shaped cutting edge design lowers cutting resistance yet improves cutting edge strength. Achieving high quality finish with high precision cutting edge. Smooth cutting even for deep grooves and low rigidity machines. High precision curved cutting edge Screw hole size increased High rake wave cutting edge Large angle Internal Coolant Holes Improved chip evacuation with air or coolant supply. Wide Variety of Inserts 6 types of chipbreaker design (L, G, H, E, EH and S) 9 milling grades for a wide range of work materials and applications. - ACP100, ACP200, ACP300 (steel milling grades) - ACK200, ACK300 (cast iron milling grades) - ACM200, ACM300 (stainless steel, exotic alloy milling grades) - DL1000, H1 (aluminium milling grades) High Durable Body Special surface treatment improves corrosion resistance as well as scratch resistance. Increased screw size improves clamping force and durability. Product Range Type Cat. No. Series Diameter Range (mm) Image 010 020 040 060 1 1 1 1 1 1 1 Shank WEX 1000E NeW Short Type 10 25 WEX 1000EL NeW Long Type 10 20 WEX 2000E Short Type WEX 2000EL Long Type WEX 2000EW Weldon Shank Short Type 16 20 WEX 3000E Short Type WEX 3000EL Long Type 25 40 WEX 3000EW Weldon Shank Short Type 25 32 WEX3000 WEX2000 WEX1000 Shell WEX 1000F NeW Shell Type 3 6 1 2 3 WEX 2000F Shell Type 40 63 WEX 3000F Shell Type 40 63 G38 Modular WEX 2000M ModularType WEX 3000M Modular Type 25 40 H20
