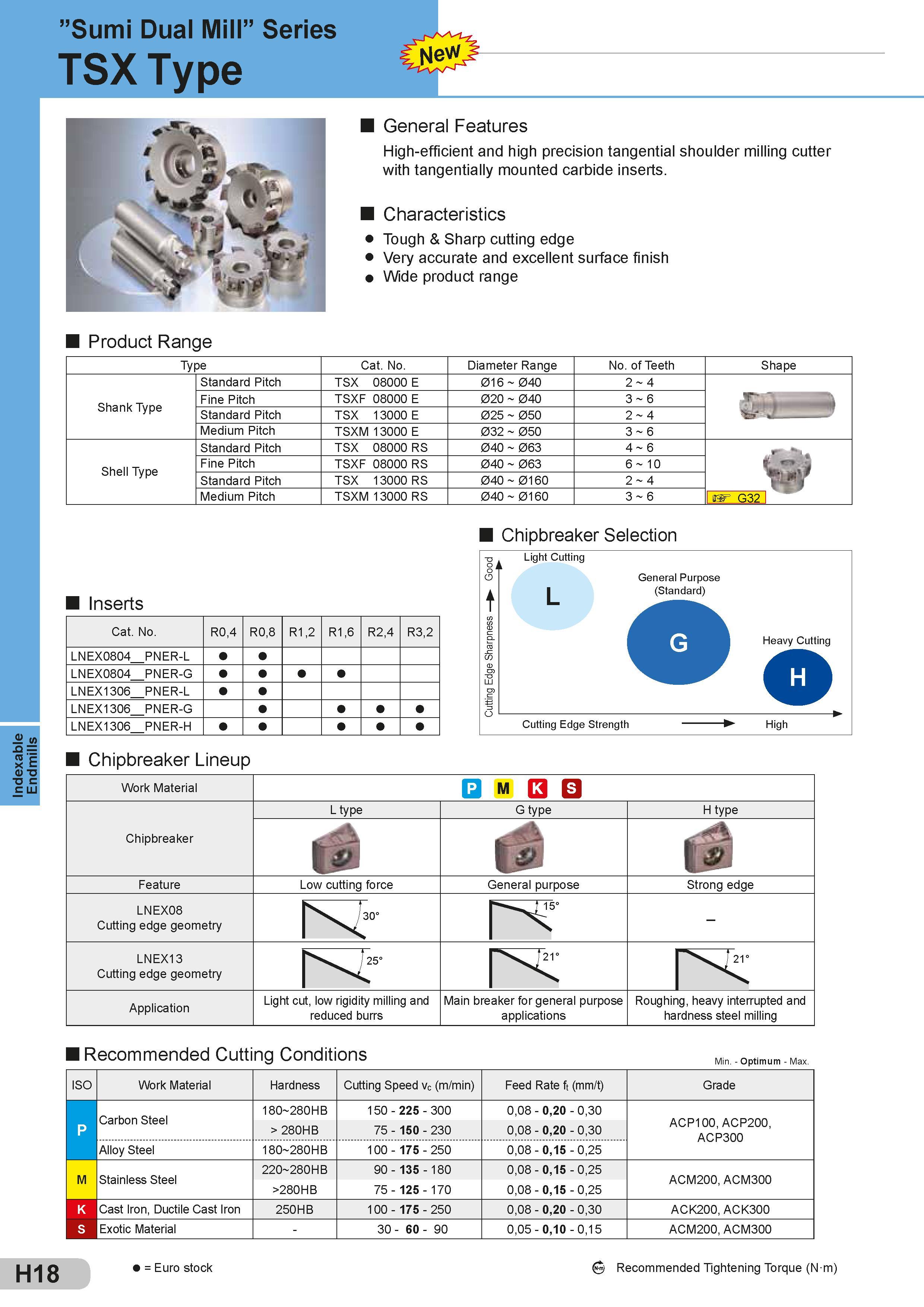

Indexable Endmills "Sumi Dual Mill" Series TSX Type Product Range General Features High-efficient and high precision tangential shoulder milling cutter with tangentially mounted carbide inserts. Characteristics Tough & Sharp cutting edge Very accurate and excellent surface finish Wide product range Type Cat. No. Diameter Range No. of Teeth Количество режущих зубьев Shape Shank Type Standard Pitch TSX 08000 E 016 040 2 4 Fine Pitch TSXF 08000 E 020 040 3 6 £. Standard Pitch TSX 13000 E 025 050 2 4 Medium Pitch TSXM 13000 E 032 050 3 6 Shell Type Standard Pitch TSX 08000 RS 040 063 4 6 Tu-V Fine Pitch TSXF 08000 RS 040 063 6 10 Standard Pitch TSX 13000 RS 040 0160 2 4 Medium Pitch TSXM 13000 RS 040 0160 3 6 G32 Chipbreaker Selection Inserts Cat. No. R0,4 R0,8 R1,2 R1,6 R2,4 R3,2 LNEX0804 PNER-L LNEX0804 PNER-G LNEX1306 PNER-L LNEX1306 PNER-G LNEX1306 PNER-H Chipbreaker Lineup Work Material Q M Q Q Chipbreaker L type G type H type it tt Feature Low cutting force General purpose Strong edge LNEX08 Cutting edge geometry r30- - LNEX13 Cutting edge geometry r- Application Light cut, low rigidity milling and reduced burrs Main breaker for general purpose applications Roughing, heavy interrupted and hardness steel milling Recommended Cutting Conditions Min. - Optimum - Max. ISO Work Material Обрабатываемый материал Hardness Cutting Speed Vc (m/min) Скорость резания (м/мин) Feed Rate ft (mm/t) Grade n Carbon Steel 180 280HB 150 - 225 - 300 0,08 - 0,20 - 0,30 ACP100, ACP200, ACP300 p > 280HB 75 - 150 - 230 0,08 - 0,20 - 0,30 i Alloy Steel 180 280HB 100 - 175 - 250 0,08 - 0,15 - 0,25 M Stainless Steel Нержавеющая сталь 220 280HB 90 - 135 - 180 0,08 - 0,15 - 0,25 ACM200, ACM300 >280HB 75 - 125 - 170 0,08 - 0,15 - 0,25 K Cast Iron, Ductile Cast Iron 250HB 100 - 175 - 250 0,08 - 0,20 - 0,30 ACK200, ACK300 S Exotic Material - 30 - 60 - 90 0,05 - 0,10 - 0,15 ACM200, ACM300 H18 = Euro stock Recommended Tightening Torque (N m)
