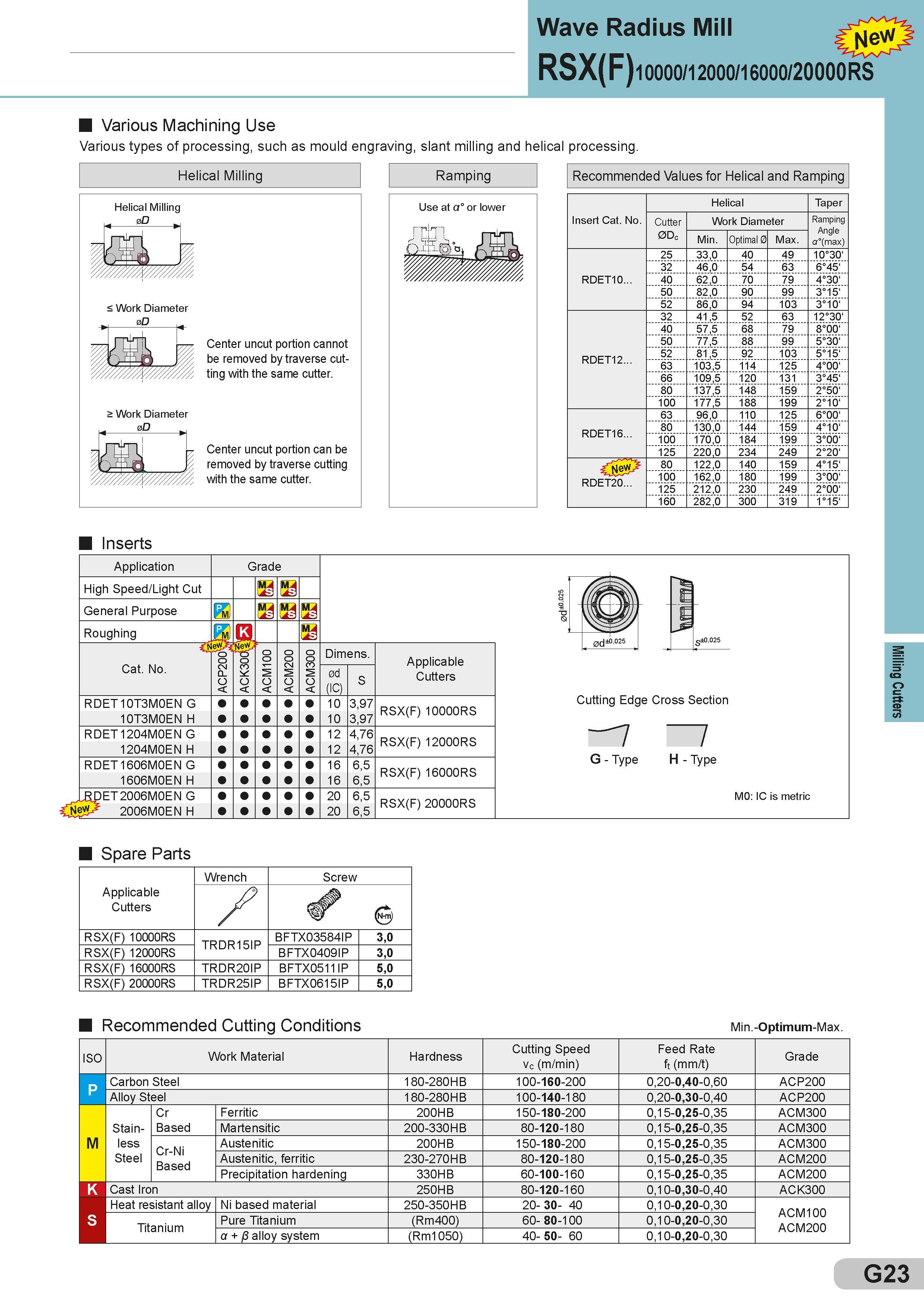

Wave Radius Mill RSX(F) 10000/12000/16000/20000RS Various Machining Use Various types of processing, such as mould engraving, slant milling and helical processing. Helical Milling Ramping Use at a0 or lower Recommended Values for Helical and Ramping Insert Cat. No. Helical Taper Cutter 0Dc Work Diameter Ramping Angle ao(max) Min. Optimal 0 Max. RDET10... 25 33,0 40 49 10°30‘ 32 46,0 54 63 6°45‘ 40 62,0 70 79 4°30‘ 50 82,0 90 99 3°15‘ 52 86,0 94 103 3°10‘ RDET12... 32 41,5 52 63 12°30‘ 40 57,5 68 79 8°00‘ 50 77,5 88 99 5°30‘ 52 81,5 92 103 5°15‘ 63 103,5 114 125 4°00‘ 66 109,5 120 131 3°45‘ 80 137,5 148 159 2°50‘ 100 177,5 188 199 2°10‘ RDET16... 63 96,0 110 125 6°00‘ 80 130,0 144 159 4°10‘ 100 170,0 184 199 3°00‘ 125 220,0 234 249 2°20‘ RDET20... 80 122,0 140 159 4°15‘ 100 162,0 180 199 3°00‘ 125 212,0 230 249 2°00‘ 160 282,0 300 319 1°15‘ Inserts Application Grade High Speed/Light Cut Bl m General Purpose pM m m Roughing Fm) si N Cat. No. e CN CL O < C < ACM100 ACM200 ACM300 Dimens. Applicable Cutters 0d (IC) S RDET10T3M0EN G 10 3,97 RSX(F) 10000RS 10T3M0EN H 10 3,97 RDET1204M0EN G 12 4,76 RSX(F) 12000RS 1204M0ENH 12 4,76 RDET1606M0EN G 16 6,5 RSX(F) 16000RS 1606M0ENH 16 6,5 RDET2006M0EN G 2006M0EN H 20 6,5 RSX(F) 20000RS 20 6,5 £±0,0 Cutting Edge Cross Section G - Type H - Type M0: IC is metric Spare Parts Запасные части Sumitomo и комплектующие Applicable Cutters Wrench Screw RSX(F) 10000RS TRDR15IP BFTX03584IP 3,0 RSX(F) 12000RS BFTX0409IP 3,0 RSX(F) 16000RS TRDR20IP BFTX0511IP 5,0 RSX(F) 20000RS TRDR25IP BFTX0615IP 5,0 Recommended Cutting Conditions Min.-Optimum-Max. ISO Work Material Обрабатываемый материал Hardness Cutting Speed Vc (m/min) Скорость резания (м/мин) Feed Rate ft (mm/t) Grade Carbon Steel 180-280HB 100-160-200 0,20-0,40-0,60 ACP200 r Alloy Steel 180-280HB 100-140-180 0,20-0,30-0,40 ACP200 Cr Ferritic 200HB 150-180-200 0,15-0,25-0,35 ACM300 Stain- Based Martensitic 200-330HB 80-120-180 0,15-0,25-0,35 ACM300 M less Cr-Ni Based Austenitic 200HB 150-180-200 0,15-0,25-0,35 ACM300 Steel Austenitic, ferritic 230-270HB 80-120-180 0,15-0,25-0,35 ACM200 Precipitation hardening 330HB 60-100-160 0,15-0,25-0,35 ACM200 K Cast Iron Чугун 250HB 80-120-160 0,10-0,30-0,40 ACK300 Heat resistant alloy Ni based material 250-350HB 20- 30- 40 0,10-0,20-0,30 ACM100 ACM200 S Titanium Pure Titanium (Rm400) 60- 80-100 0,10-0,20-0,30 a + p alloy system (Rm1050) 40- 50- 60 0,10-0,20-0,30 G23 Milling Cutters
