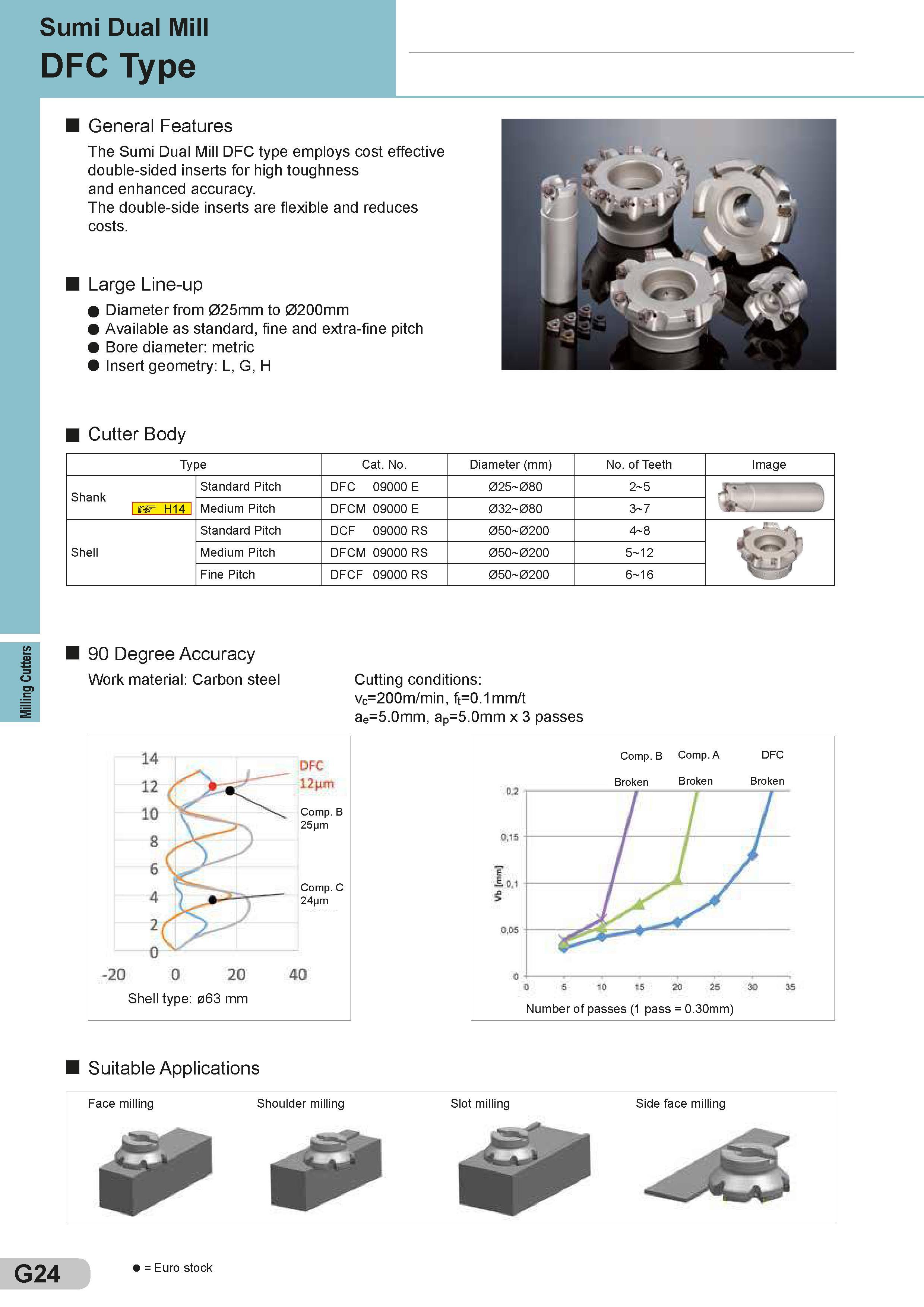

Milling Cutters Sumi Dual Mill DFC Type General Features The Sumi Dual Mill DFC type employs cost effective double-sided inserts for high toughness and enhanced accuracy. The double-side inserts are flexible and reduces costs. Large Line-up Diameter from 025mm to 0200mm Available as standard, fine and extra-fine pitch Bore diameter: metric Insert geometry: L, G, H Cutter Body Type Cat. No. Diameter (mm) No. of Teeth Количество режущих зубьев Image Shank Standard Pitch DFC 09000 E 025 080 2 5 " 3 1 H14 Medium Pitch DFCM 09000 E 032 080 3 7 Shell Standard Pitch DCF 09000 RS 050 0200 4 8 Medium Pitch DFCM 09000 RS 050 0200 5 12 Fine Pitch DFCF 09000 RS 050 0200 6 16 90 Degree Accuracy Work material: Carbon steel Cutting conditions: Vc=200m/min, ft=0.1mm/t ae=5.0mm, ap=5.0mm x 3 passes Suitable Applications G24 = Euro stock
