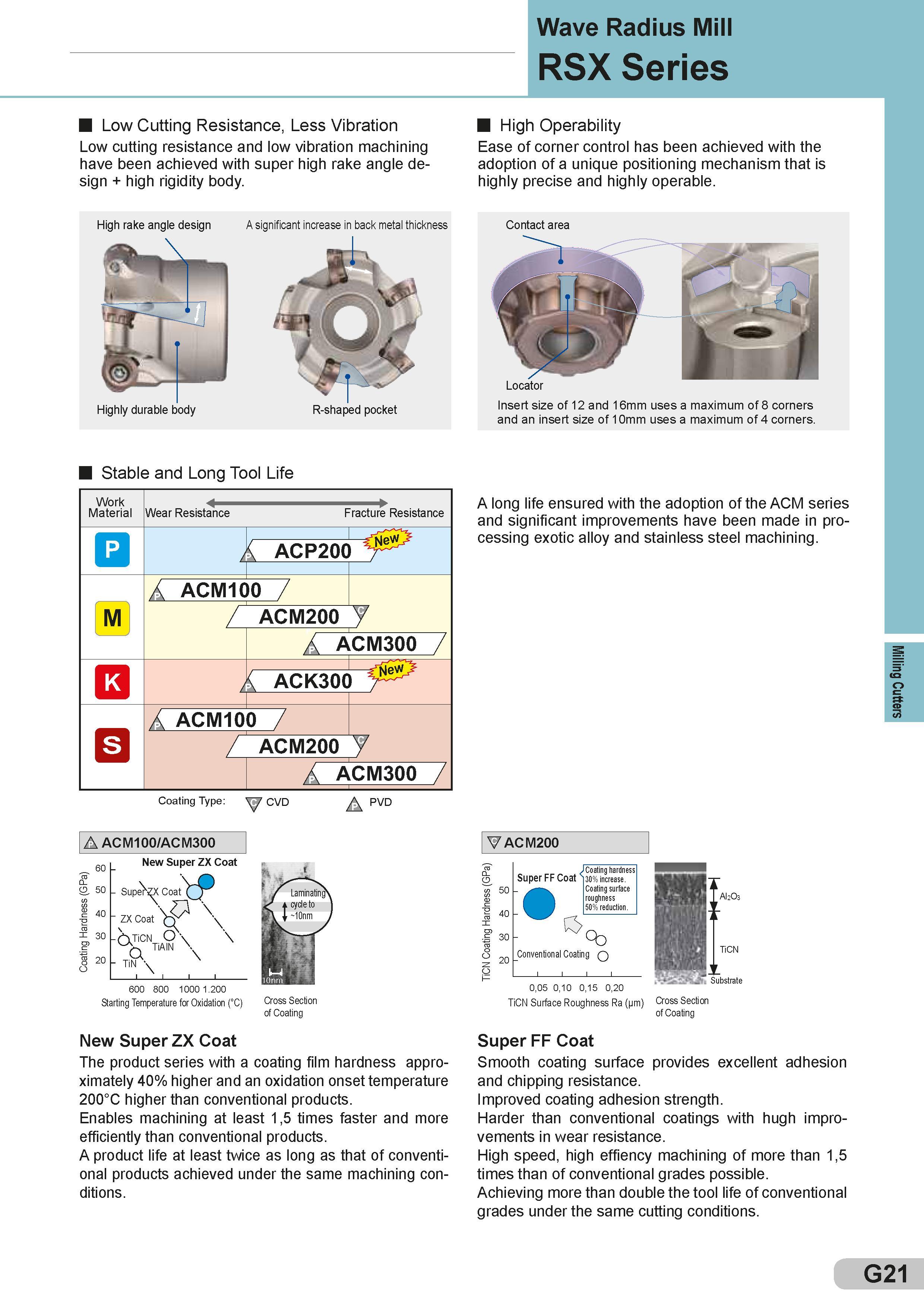

Wave Radius Mill RSX Series Low Cutting Resistance, Less Vibration Low cutting resistance and low vibration machining have been achieved with super high rake angle design + high rigidity body. High Operability Ease of corner control has been achieved with the adoption of a unique positioning mechanism that is highly precise and highly operable. Contact area Locator Insert size of 12 and 16mm uses a maximum of 8 corners and an insert size of 10mm uses a maximum of 4 corners. Stable and Long Tool Life Work Material Wear Resistance M A Fracture Resistance PP ACM100 ACM200E PP ACM300 ACM200F P ACM300 Coating Type: CVD Pi ACM100/ACM300 30 New Super ZX Coat SupeT X Coat P \ ZX Coat CXTiCN a TiN o\ TiAlN \ \ 600 800 1000 1.200 Starting Temperature for Oxidation (°C) Cross Section of Coating New Super ZX Coat The product series with a coating film hardness approximately 40% higher and an oxidation onset temperature 200°C higher than conventional products. Enables machining at least 1,5 times faster and more efficiently than conventional products. A product life at least twice as long as that of conventional products achieved under the same machining conditions. A long life ensured with the adoption of the ACM series and significant improvements have been made in processing exotic alloy and stainless steel machining. Super FF Coat Coating hardness 30% increase. Coating surface roughness 50% reduction. Conventional Coating Q 0,05 0,10 0,15 0,20 TiCN Surface Roughness Ra (pm) Al2O3 Substrate Cross Section of Coating Super FF Coat Smooth coating surface provides excellent adhesion and chipping resistance. Improved coating adhesion strength. Harder than conventional coatings with hugh improvements in wear resistance. High speed, high effiency machining of more than 1,5 times than of conventional grades possible. Achieving more than double the tool life of conventional grades under the same cutting conditions. S 60 O 50 40 20 G21 Milling Cutters
