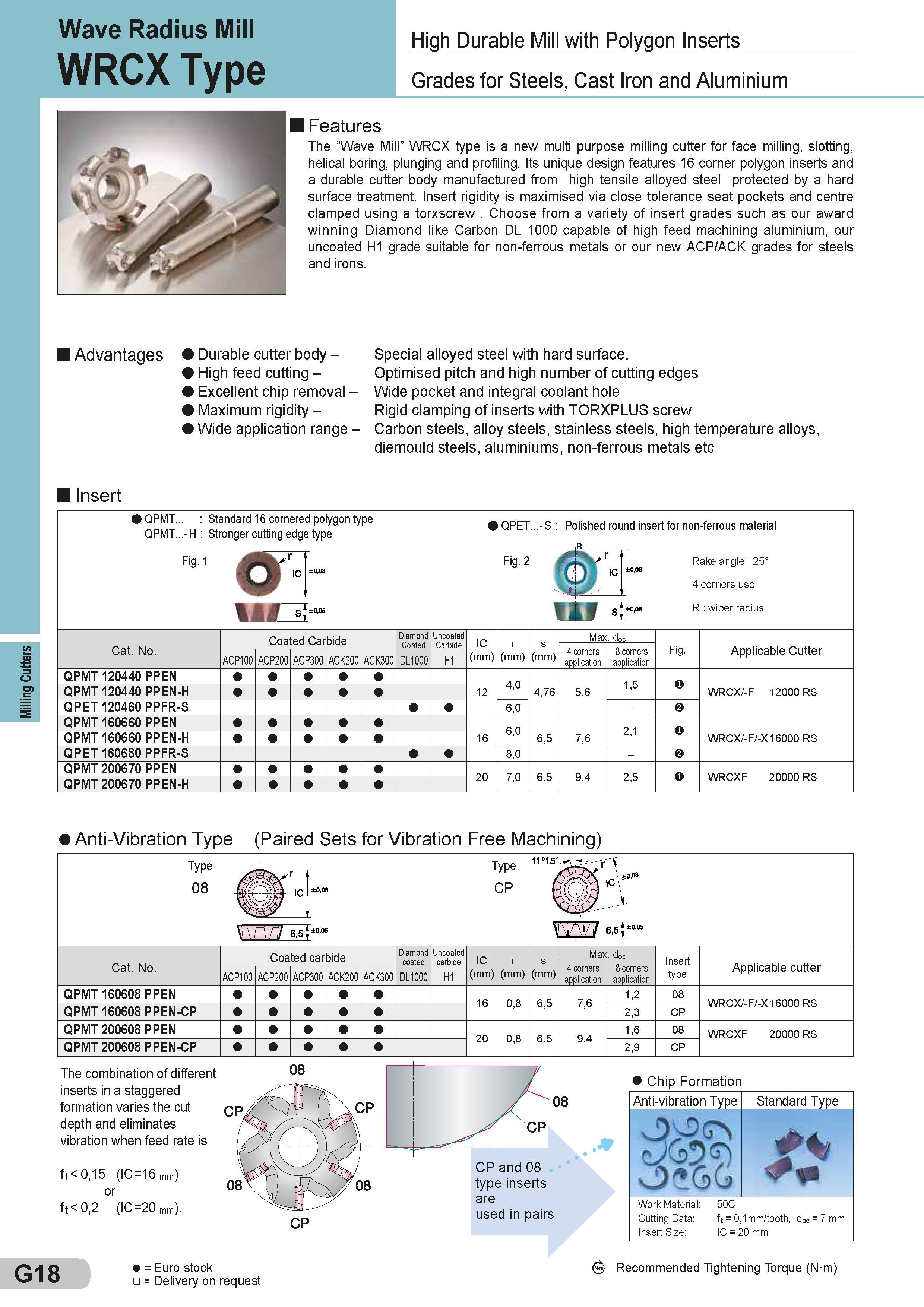

Milling Cutters Wave Radius Mill WRCX Type High Durable Mill with Polygon Inserts Grades for Steels, Cast Iron and Aluminium Features The ”Wave Mill” WRCX type is a new multi purpose milling cutter for face milling, slotting, helical boring, plunging and profiling. Its unique design features 16 corner polygon inserts and a durable cutter body manufactured from high tensile alloyed steel protected by a hard surface treatment. Insert rigidity is maximised via close tolerance seat pockets and centre clamped using a torxscrew . Choose from a variety of insert grades such as our award winning Diamond like Carbon DL 1000 capable of high feed machining aluminium, our uncoated H1 grade suitable for non-ferrous metals or our new ACP/ACK grades for steels and irons. I Advantages Durable cutter body - High feed cutting - Excellent chip removal - Maximum rigidity - Wide application range - Special alloyed steel with hard surface. Optimised pitch and high number of cutting edges Wide pocket and integral coolant hole Rigid clamping of inserts with TORXPLUS screw Carbon steels, alloy steels, stainless steels, high temperature alloys, diemould steels, aluminiums, non-ferrous metals etc Insert QPMT... : Standard 16 cornered polygon type QPMT...- H : Stronger cutting edge type Fig. 1 Q ±0,08 JL 11/ sj QPET...- S : Polished round insert for non-ferrous material Fig. 2 fSR Rake angle: 25° ±0>08 4 corners use R : wiper radius Cat. No. Coated Carbide Diamond Uncoated IC (mm) r (mm) s (mm) Max doc Fig. Applicable Cutter ACP100 ACP200 ACP300 ACK200 ACK300 DL1000 H1 4 corners application 8 corners application QPMT 120440 PPEN 4,0 1, 5 O QPMT 120440 PPEN-H 12 4,76 5, 6 WRCX/-F 12000 RS QPET 120460 PPFR-S 6,0 - v QPMT 160660 PPEN QPMT 160660 PPEN-H 16 6,0 6,5 7, 6 2,1 O WRCX/-F/-X16000 RS QPET 160680 PPFR-S 8,0 - v QPMT 200670 PPEN 20 7,0 6,5 9,4 2,5 O WRCXF 20000 RS QPMT 200670 PPEN-H Anti-Vibration Type (Paired Sets for Vibration Free Machining) Type 08 Type CP 0.08 Cat. No. Coated carbide Diamond Uncoated IC (mm) r (mm) s (mm) Max doc Insert type Applicable cutter ACP100 ACP200 ACP300 ACK200 ACK300 DL1000 H1 4 corners application 8 corners application QPMT 160608 PPEN 16 0,8 6,5 7,6 1,2 08 WRCX/-F/-X 16000 RS QPMT 160608 PPEN-CP 2,3 CP QPMT 200608 PPEN 20 0, 8 6, 5 9, 4 1,6 08 WRCXF 20000 RS QPMT 200608 PPEN-CP 2,9 CP The combination of different inserts in a staggered formation varies the cut depth and eliminates vibration when feed rate is ft < 0,15 (IC=16 mm) or ft < 0,2 (IC=20 mm). CP and 08 type inserts are used in pairs Chip Formation Anti-vibration Type Standard Type rj 69 Si Work Material: 50C Cutting Data: ft = 0,1mm/tooth, doc = 7 mm Insert Size: IC = 20 mm G18 = Euro stock = Delivery on request Recommended Tightening Torque (N m)
