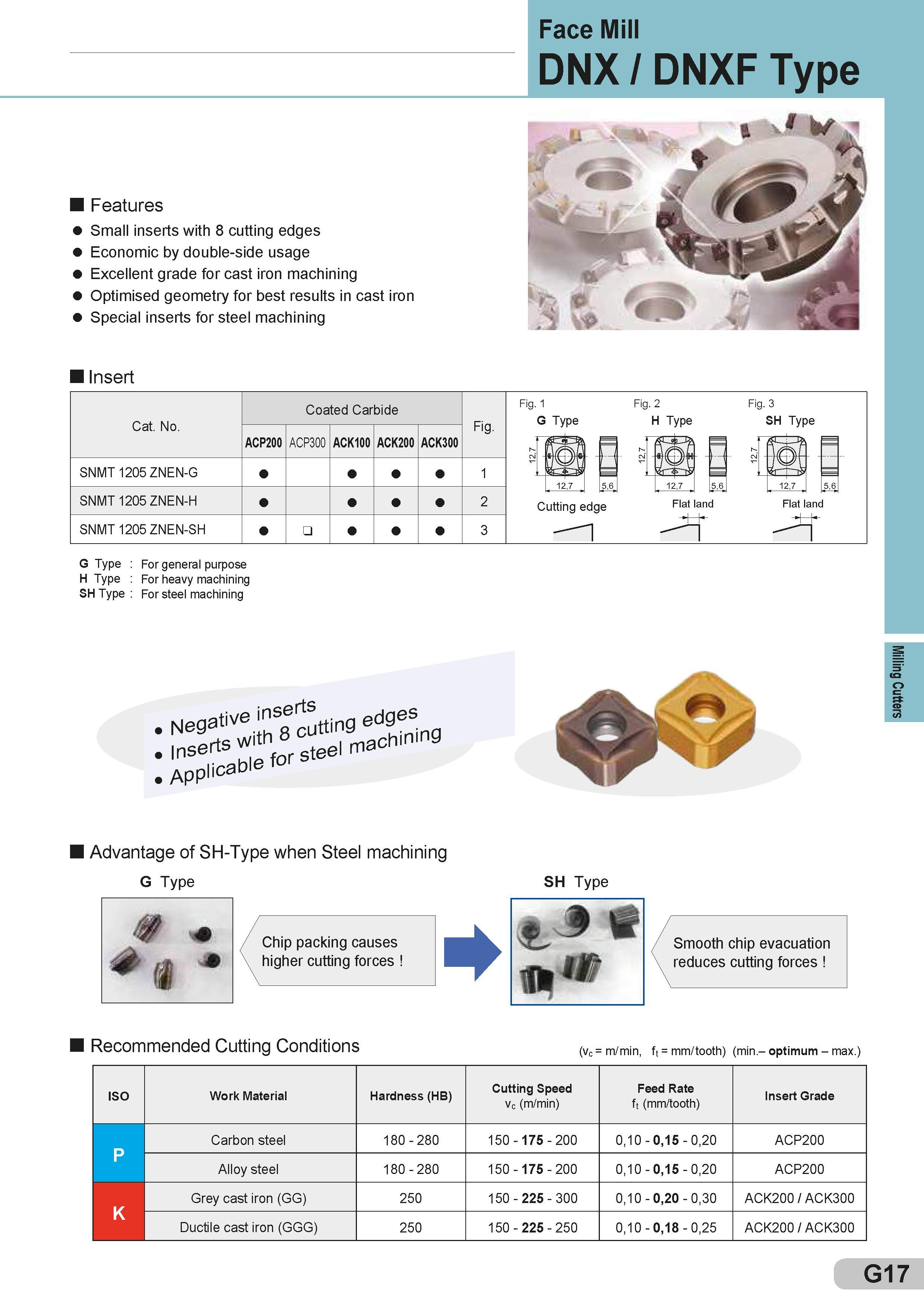

Features Small inserts with 8 cutting edges Economic by double-side usage Excellent grade for cast iron machining Optimised geometry for best results in cast iron Special inserts for steel machining Insert Face Mill DNX / DNXF Type n 4 9 Cat. No. Coated Carbide Fig. ACP200 ACP300 ACK100 ACK200 ACK300 SNMT 1205 ZNEN-G 1 SNMT 1205 ZNEN-H 2 SNMT 1205 ZNEN-SH 3 Fig. 1 G Type Cutting edge Fig. 2 H Type Flat land Fig. 3 SH Type 12,7 Flat land 5,6 G Type : For general purpose H Type : For heavy machining SH Type : For steel machining inserts Negative'u°8cutting Lg ssi Advantage of SH-Type when Steel machining G Type Chip packing causes higher cutting forces SH Type Smooth chip evacuation reduces cutting forces Recommended Cutting Conditions (vc = m/min, ft = mm/tooth) (min.- optimum - max.) ISO Work Material Обрабатываемый материал Hardness (HB) Cutting Speed vc (m/min) Feed Rate ft (mm/tooth) Insert Grade P Carbon steel 180 - 280 150 - 175 - 200 0,10 - 0,15 - 0,20 ACP200 Alloy steel 180 - 280 150 - 175 - 200 0,10 - 0,15 - 0,20 ACP200 K Grey cast iron (GG) 250 150 - 225 - 300 0,10 - 0,20 - 0,30 ACK200 / ACK300 Ductile cast iron (GGG) 250 150 - 225 - 250 0,10 - 0,18 - 0,25 ACK200 / ACK300 G17 Milling Cutters
