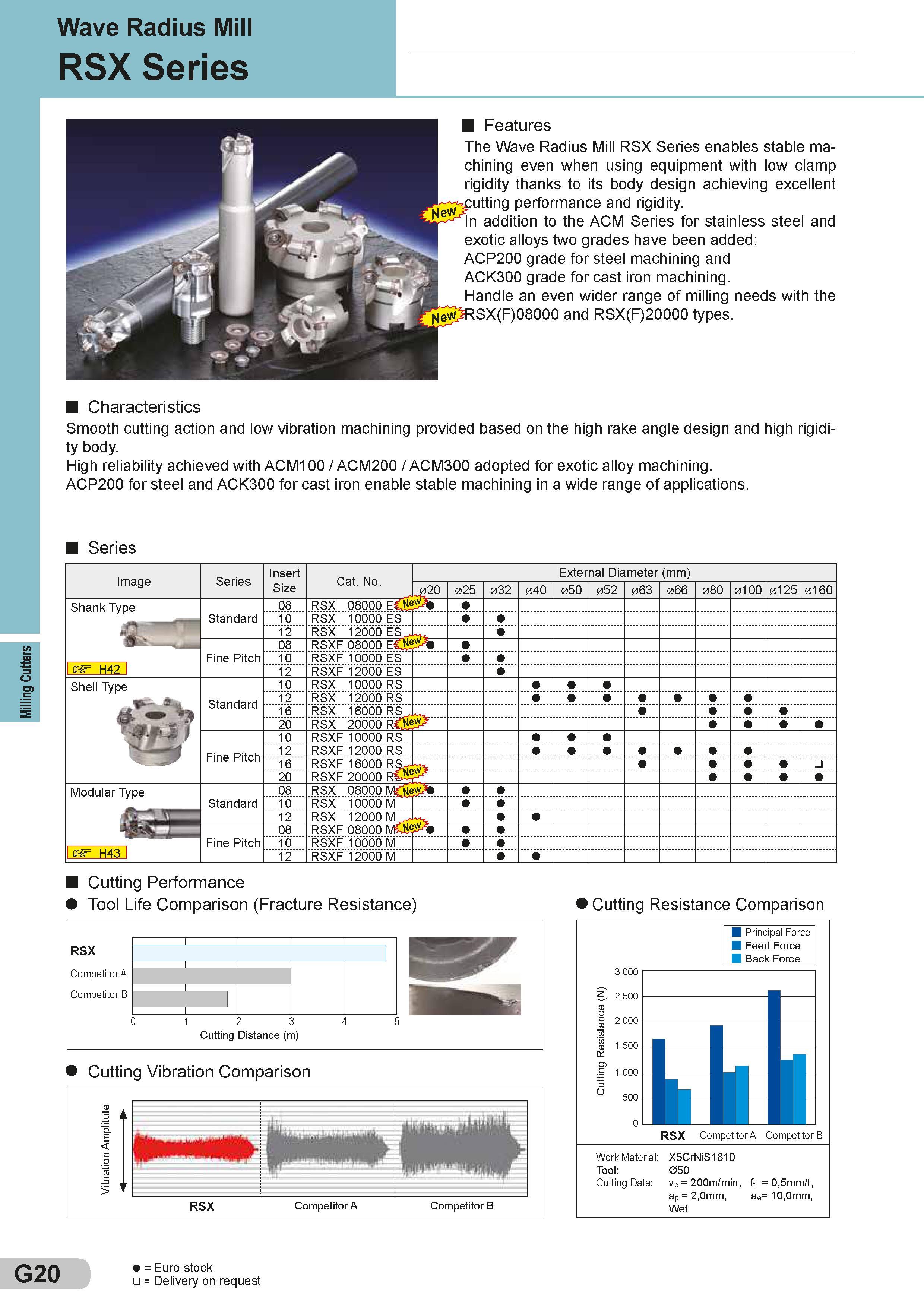

Milling Cutters Wave Radius Mill RSX Series Features The Wave Radius Mill RSX Series enables stable machining even when using equipment with low clamp rigidity thanks to its body design achieving excellent utting performance and rigidity. In addition to the ACM Series for stainless steel and exotic alloys two grades have been added: ACP200 grade for steel machining and ACK300 grade for cast iron machining. Handle an even wider range of milling needs with the SX(F)08000 and RSX(F)20000 types. Characteristics Smooth cutting action and low vibration machining provided based on the high rake angle design and high rigidity body. High reliability achieved with ACM100 / ACM200 / ACM300 adopted for exotic alloy machining. ACP200 for steel and ACK300 for cast iron enable stable machining in a wide range of applications. Series Image Series Insert Size Cat. No. External Diameter (mm) 020 025 032 040 050 052 063 066 080 0100 0125 0160 Shank Type Standard 08 RSX 08000 ES New 10 RSX 10000 ES 12 RSX 12000 ES Fine Pitch 08 RSXF 08000 ES New 10 RSXF 10000 ES H42 12 RSXF 12000 ES Shell Type isa Standard 10 RSX 10000 RS 12 RSX 12000 RS 16 RSX 16000 RS 20 RSX 20000 RS.NeW Fine Pitch 10 RSXF 10000 RS 12 RSXF 12000 RS 16 RSXF 16000 RS, 20 RSXF 20000 RsN, Modular Type Standard 08 RSX 08000 M New 10 RSX 10000 M 12 RSX 12000 M Fine Pitch 08 RSXF 08000 M N< 'H 10 RSXF 10000 M H43 12 RSXF 12000 M Cutting Performance Tool Life Comparison (Fracture Resistance) Cutting Resistance Comparison Principal Force Feed Force Back Force 0 1.500 a: Cutting Vibration Comparison I RSX Competitor A Competitor B Work Material: X5CrNiS1810 Tool: 050 Cutting Data: vc = 200m/min, ft = 0,5mm/t, ap = 2,0mm, ae= 10,0mm, Wet G20 = Euro stock = Delivery on request
