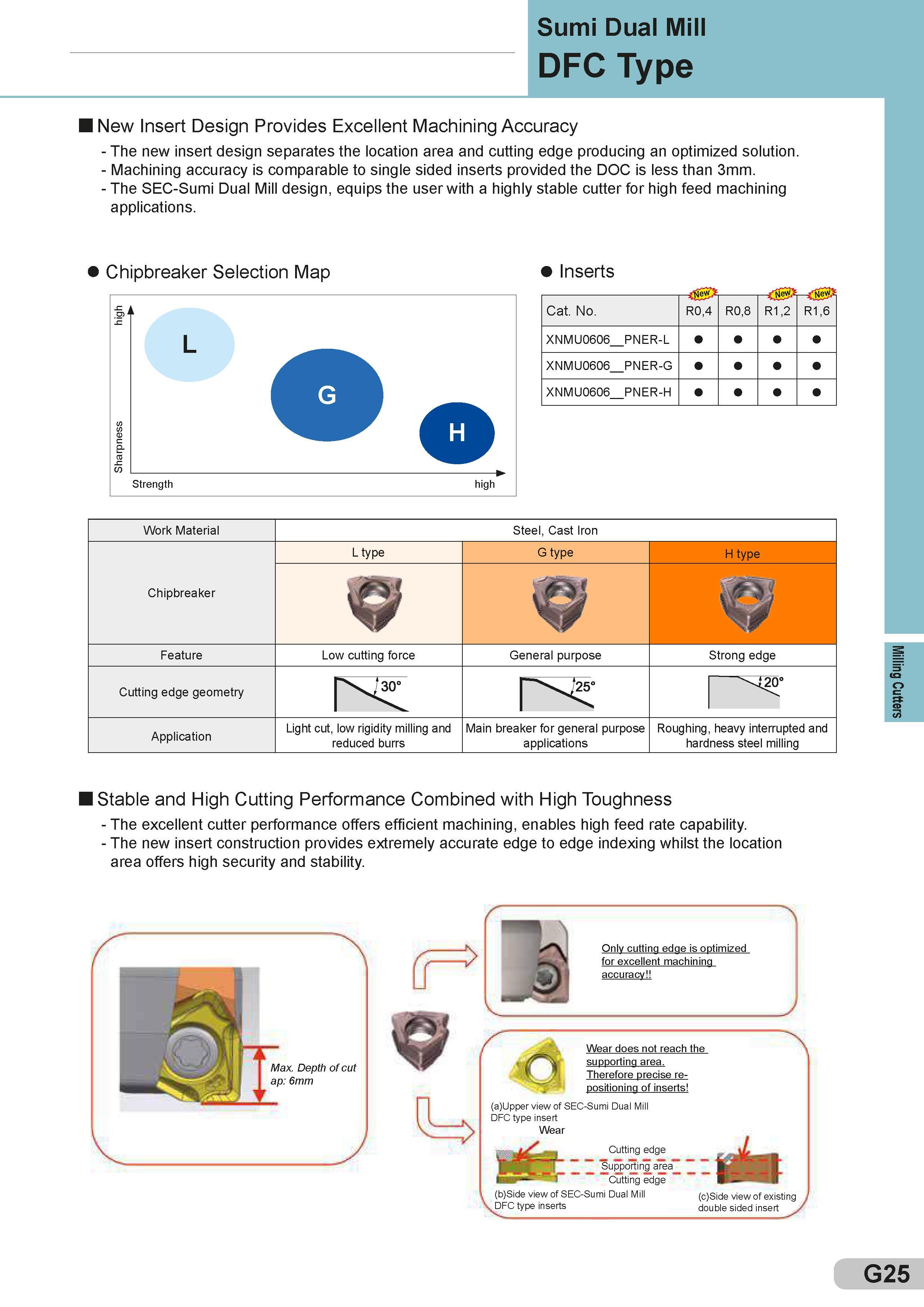

Sumi Dual Mill DFC Type New Insert Design Provides Excellent Machining Accuracy - The new insert design separates the location area and cutting edge producing an optimized solution. - Machining accuracy is comparable to single sided inserts provided the DOC is less than 3mm. - The SEC-Sumi Dual Mill design, equips the user with a highly stable cutter for high feed machining applications. Chipbreaker Selection Map Inserts Cat. No. R0,4 R0,8 R1,2 R1,6 XNMU0606 PNER-L XNMU0606 PNER-G XNMU0606 PNER-H Work Material Steel, Cast Iron Chipbreaker L type G type H type Feature Low cutting force General purpose Strong edge Cutting edge geometry 'nNs 30° "N. 25" \420° Application Light cut, low rigidity milling and reduced burrs Main breaker for general purpose applications Roughing, heavy interrupted and hardness steel milling Stable and High Cutting Performance Combined with High Toughness - The excellent cutter performance offers efficient machining, enables high feed rate capability. - The new insert construction provides extremely accurate edge to edge indexing whilst the location area offers high security and stability. Max. Depth of cut ap: 6mm o Wear does not reach the supporting area. Therefore precise repositioning of inserts (a)Upper view of SEC-Sumi Dual Mill DFC type insert Wear \ Cutting edge Supporting area Cutting edge (b)Side view of SEC-Sumi Dual Mill DFC type inserts (c)Side view of existing double sided insert G25 Milling Cutters
