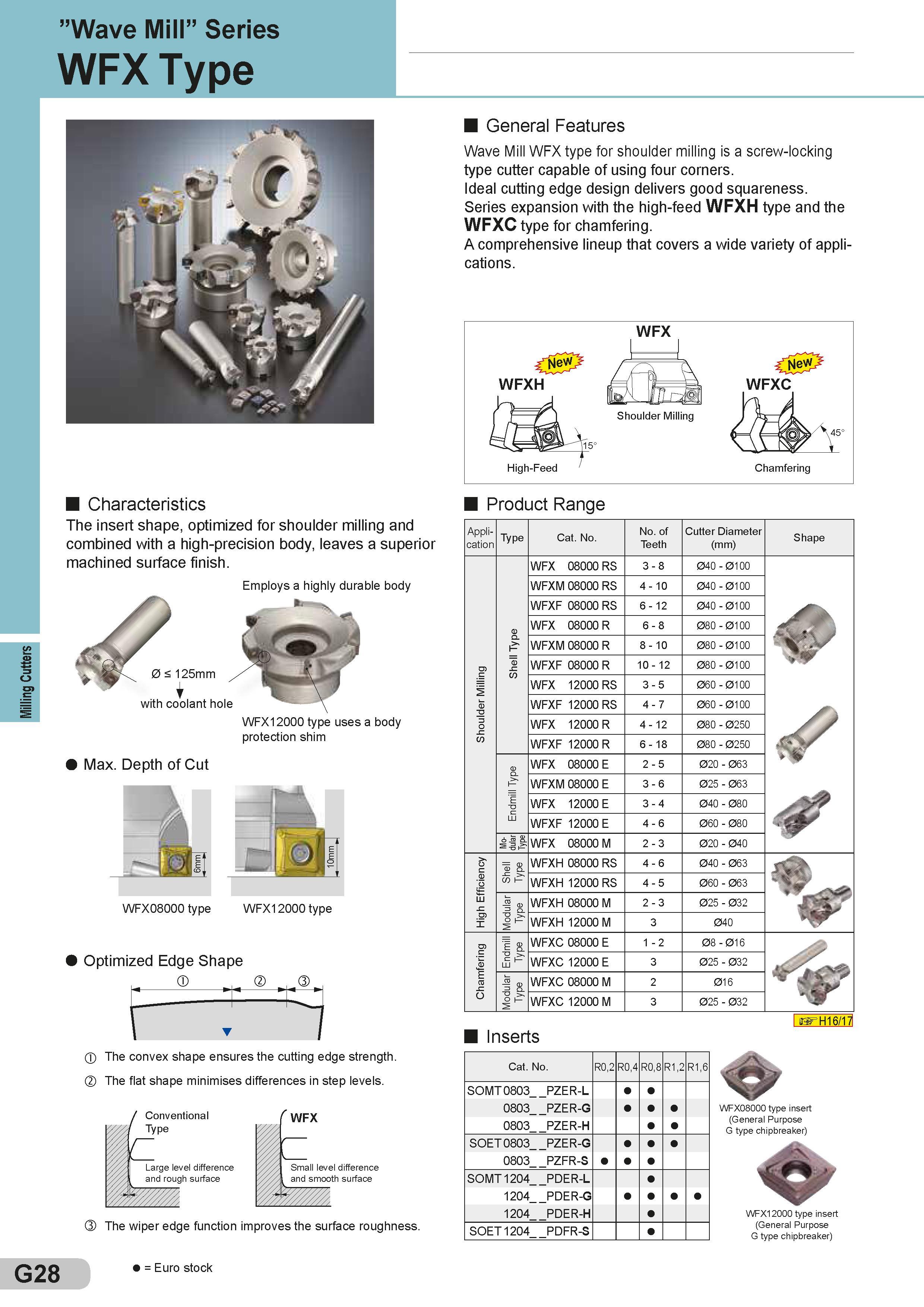

Milling Cutters ”Wave Mill” Series WFX Type General Features Wave Mill WFX type for shoulder milling is a screw-locking type cutter capable of using four corners. Ideal cutting edge design delivers good squareness. Series expansion with the high-feed WFXH type and the WFXC type for chamfering. A comprehensive lineup that covers a wide variety of applications. Characteristics The insert shape, optimized for shoulder milling and combined with a high-precision body, leaves a superior machined surface finish. Employs a highly durable body 0 < 125mm I with coolant hole Max. Depth of Cut WFX12000 type uses a body protection shim WFX08000 type WFX12000 type Optimized Edge Shape , The convex shape ensures the cutting edge strength. The flat shape minimises differences in step levels. WFX Small level difference and smooth surface Conventional Type Large level difference and rough surface The wiper edge function improves the surface roughness. Product Range Applcation m a .c C Type Cat. No. WFX 08000 RS WFXM 08000 RS WFXF 08000 RS WFX 08000 R WFXM 08000 R WFXF 08000 R WFX 12000 RS WFXF 12000 RS WFX 12000 R WFXF 12000 R WFX 08000 E WFXM 08000 E WFX 12000 E WFXF 12000 E WFX 08000 M WFXH 08000 RS WFXH 12000 RS WFXH 08000 M WFXH 12000 M WFXC 08000 E WFXC 12000 E WFXC 08000 M WFXC 12000 M No. of Teeth Количество режущих зубьев 3 - 8 4 - 10 6 - 12 6 - 8 8 - 10 10 - 12 3 - 5 4 - 7 4 - 12 6 - 18 2 - 5 3 - 6 3 - 4 4 - 6 2 - 3 4 - 6 4 - 5 2 - 3 1 - 2 Cutter Diameter (mm) 040 - 0100 040 - 0100 040 - 0100 080 - 0100 080 - 0100 080 - 0100 060 - 0100 060 - 0100 080 - 0250 080 - 0250 020 - 063 025 - 063 040 - 080 060 - 080 020 - 040 040 - 063 060 - 063 025 - 032 040 08 - 016 025 - 032 016 025 - 032 Inserts Cat. No. R0,2 R0,4 R0,8 R1,2 R1,6 SOMT 0803 PZER-L 0803 PZER-G 0803 PZER-H SOET 0803 PZER-G 0803 PZFR-S SOMT 1204 PDER-L 1204 PDER-G 1204 PDER-H SOET 1204 PDFR-S Shape H16/17 WFX08000 type insert (General Purpose G type chipbreaker) WFX12000 type insert (General Purpose G type chipbreaker) 3 3 2 3 G28 = Euro stock
