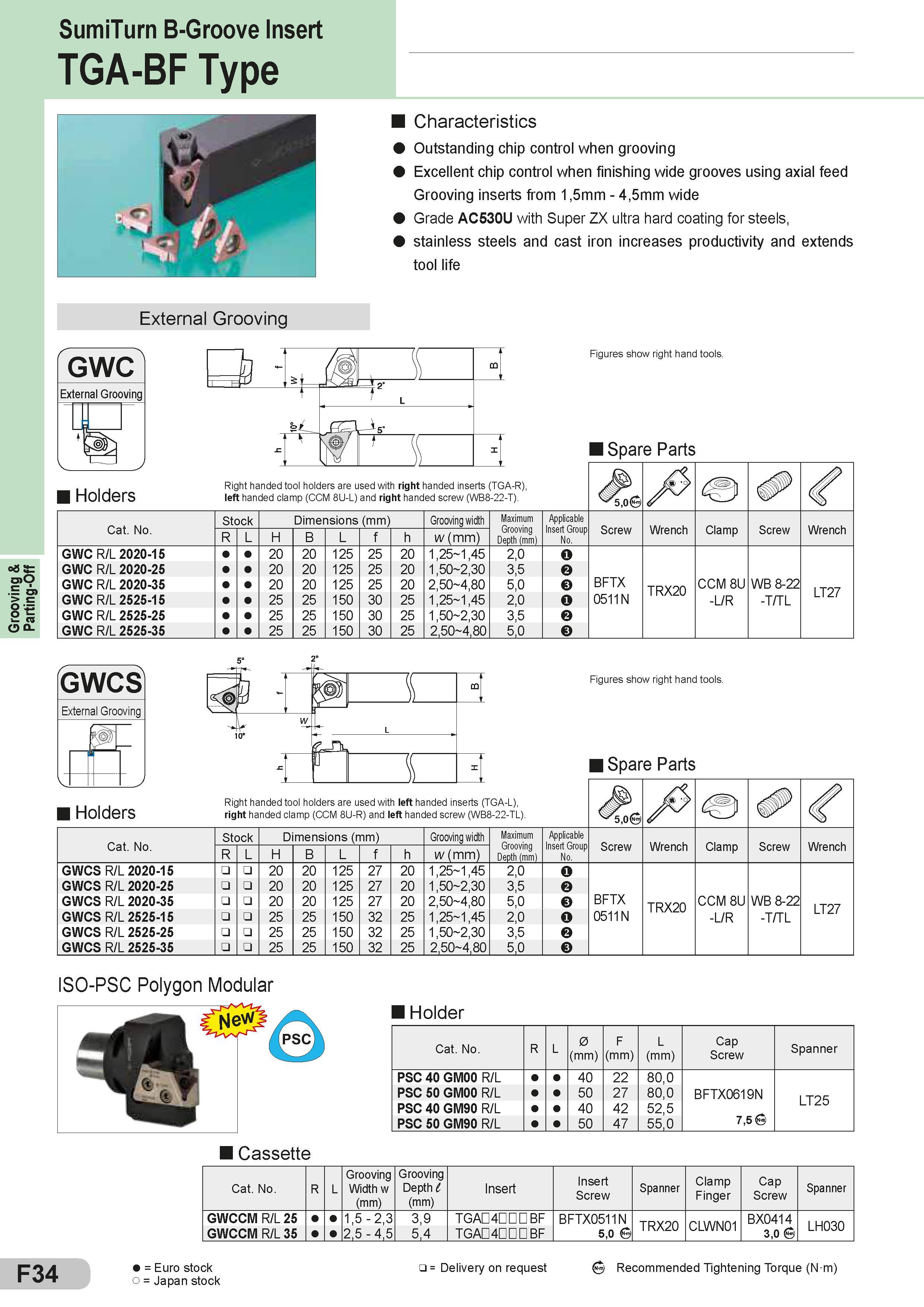

Grooving & Parting-Off SumiTurn B-Groove Insert TGA-BF Type Characteristics Outstanding chip control when grooving Excellent chip control when finishing wide grooves using axial feed Grooving inserts from 1,5mm - 4,5mm wide Grade AC530U with Super ZX ultra hard coating for steels, stainless steels and cast iron increases productivity and extends tool life External Grooving GWC External Grooving Figures show right hand tools. I Spare Parts Запасные части Sumitomo и комплектующие v J Holders " \l w Right handed tool holders are u left handed clamp (CCM 8U-L) sed with right handed inserts (TGA-R), and right handed screw (WB8-22-T). Cat. No. Stock Dimensions (mm) Размеры указаны в мм Grooving width Maximum Grooving Depth (mm) Applicable Insert Group No. Screw Wrench Clamp Screw Wrench R L H B L f h w (mm) GWC R/L 2020-15 20 20 125 25 20 1,25 1,45 2,0 o GWC R/L 2020-25 20 20 125 25 20 1,50 2,30 3,5 GWC R/L 2020-35 20 20 125 25 20 2,50 4,80 5,0 BFTX TRX20 CCM 8U WB 8-22 LT27 GWC R/L 2525-15 25 25 150 30 25 1,25 1,45 2,0 o 0511N -L/R -T/TL GWC R/L 2525-25 25 25 150 30 25 1,50 2,30 3,5 GWC R/L 2525-35 25 25 150 30 25 2,50 4,80 5,0 GWCS External Grooving hj 0 1 "I \ I Lw; L L .n u a X Figures show right hand tools. Spare Parts Запасные части Sumitomo и комплектующие V J Holders Right handed tool holders are used with left handed inserts (TGA-L), right handed clamp (CCM 8U-R) and left handed screw (WB8-22-TL). /> 9 Cat. No. Stock Dimensions (mm) Размеры указаны в мм Grooving width Maximum Grooving Depth (mm) Applicable Insert Group No. Screw Wrench Clamp Screw Wrench R L H B L f h w (mm) GWCS R/L 2020-15 20 20 125 27 20 1,25 1,45 2,0 o GWCS R/L 2020-25 20 20 125 27 20 1,50 2,30 3,5 GWCS R/L 2020-35 20 20 125 27 20 2,50 4,80 5,0 BFTX TRX20 CCM 8U WB 8-22 LT27 GWCS R/L 2525-15 25 25 150 32 25 1,25 1,45 2,0 o 0511N -L/R -T/TL GWCS R/L 2525-25 25 25 150 32 25 1,50 2,30 3,5 GWCS R/L 2525-35 25 25 150 32 25 2,50 4,80 5,0 ISO-PSC Polygon Modular Holder Cat. No. R L 0 (mm) F (mm) L (mm) Cap Screw Spanner PSC 40 GM00 R/L 40 22 80,0 PSC 50 GM00 R/L PSC 40 GM90 R/L 50 40 27 42 80,0 52,5 BFTX0619N 7,5 LT25 PSC 50 GM90 R/L 50 47 55,0 Cassette Cat. No. R L Grooving Width w (mm) Grooving Depth l (mm) Insert Insert Screw Spanner Clamp Finger Cap Screw Spanner GWCCM R/L 25 1,5 - 2,3 3,9 TGAM BF BFTX0511N TRX20 CLWN01 BX0414 LH030 GWCCM R/L 35 2,5 - 4,5 5,4 TGAM BF 5,0 3,0 F34 = Euro stock o = Japan stock = Delivery on request Recommended Tightening Torque (N m)
