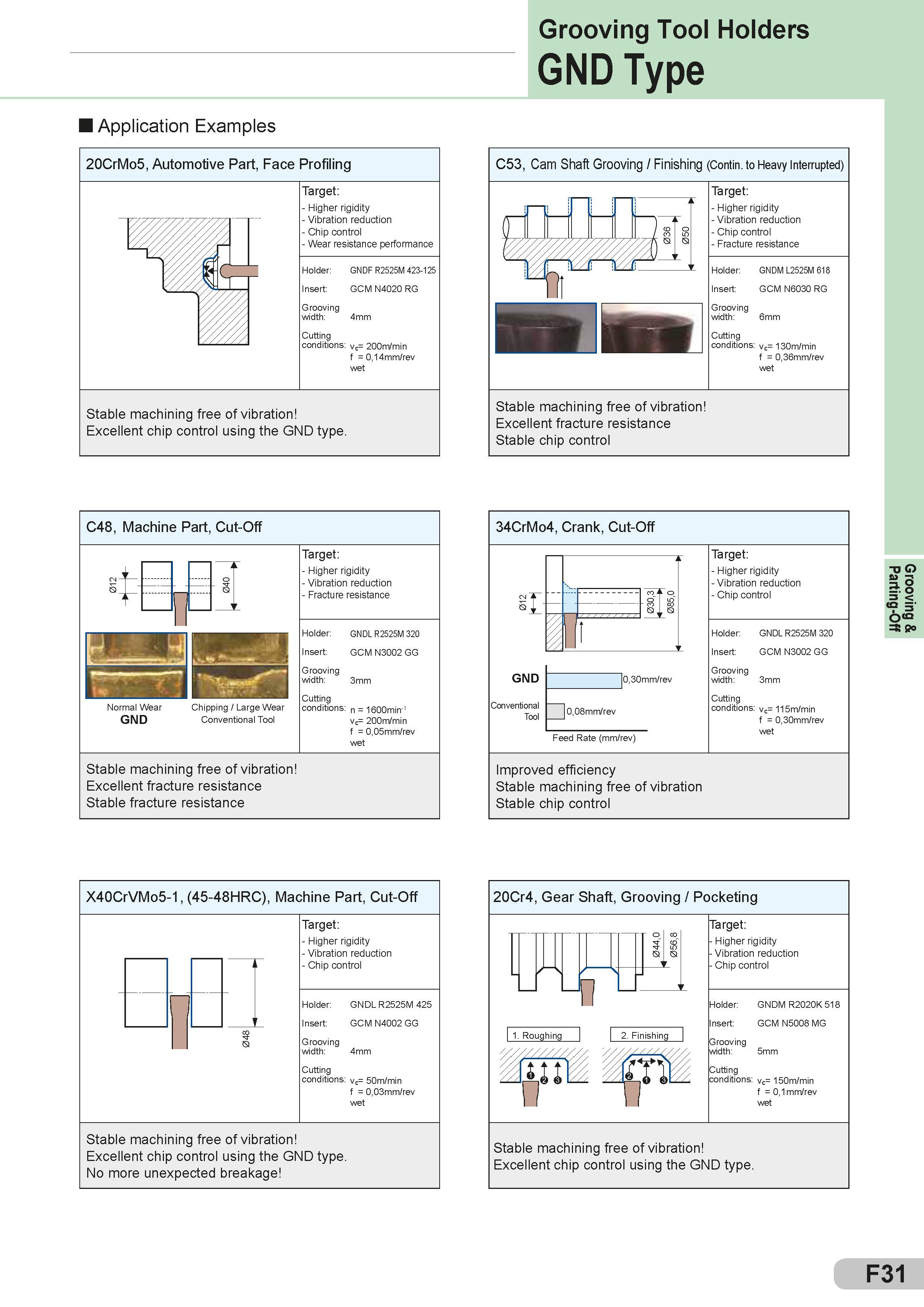

Grooving Tool Holders GND Type Application Examples 20CrMo5, Automotive Part, Face Profiling Target: - Higher rigidity - Vibration reduction - Chip control - Wear resistance performance Holder: Insert: GNDF R2525M 423-125 GCM N4020 RG Grooving width: 4mm Cutting conditions: vc= 200m/min f = 0,14mm/rev wet Stable machining free of vibration Excellent chip control using the GND type. C53, Cam Shaft Grooving / Finishing (Contin. to Heavy Interrupted) Target: - Higher rigidity - Vibration reduction - Chip control - Fracture resistance Stable machining free of vibration Excellent fracture resistance Stable chip control C48, Machine Part, Cut-Off r - Higher rigidity 0 04 - Vibration reduction - Fracture resistance L Chipping / Large Wear Conventional Tool Target: Holder: Insert: GNDL R2525M 320 GCM N3002 GG Grooving width: 3mm Cutting conditions: n = 1600min-1 vc= 200m/min f = 0,05mm/rev wet Stable machining free of vibration Excellent fracture resistance Stable fracture resistance 34CrMo4, Crank, Cut-Off £ I GND Conventional Tool Feed Rate (mm/rev) Target: - Higher rigidity - Vibration reduction - Chip control Improved efficiency Stable machining free of vibration Stable chip control X40CrVMo5-1, (45-48HRC), Machine Part, Cut-Off Target: - Higher rigidity - Vibration reduction - Chip control Holder: Insert: GNDL R2525M 425 GCM N4002 GG Grooving width: 4mm Cutting conditions: vc= 50m/min f = 0,03mm/rev wet Stable machining free of vibration Excellent chip control using the GND type. No more unexpected breakage 20Cr4, Gear Shaft, Grooving / Pocketing Target: - Higher rigidity - Vibration reduction - Chip control Stable machining free of vibration Excellent chip control using the GND type. F31 Grooving & Parting-Off
