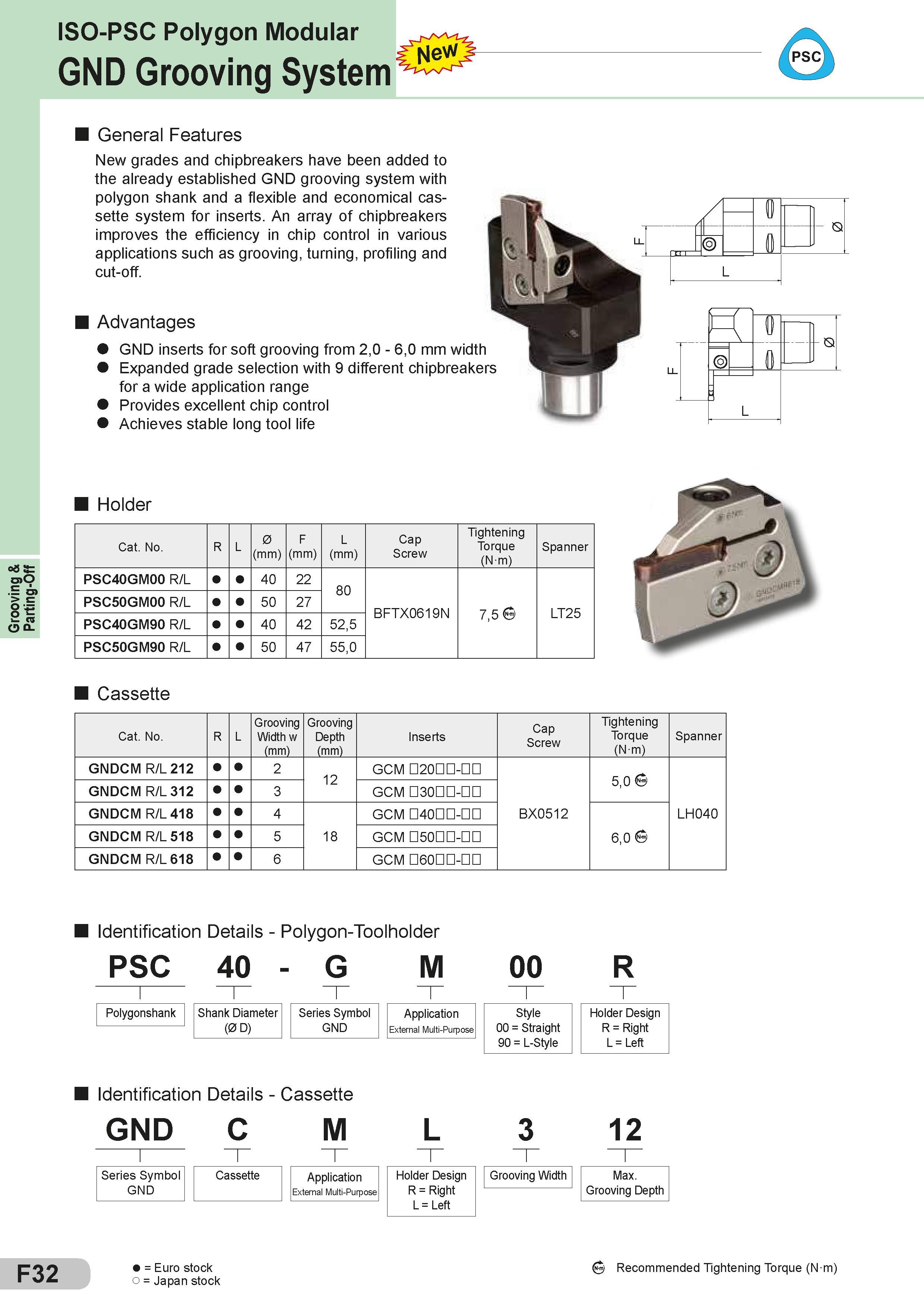

Grooving & Parting-Off ISO-PSC Polygon Modular GND Grooving System PSC General Features New grades and chipbreakers have been added to the already established GND grooving system with polygon shank and a flexible and economical cassette system for inserts. An array of chipbreakers improves the efficiency in chip control in various applications such as grooving, turning, profiling and cut-off. Advantages GND inserts for soft grooving from 2,0 - 6,0 mm width Expanded grade selection with 9 different chipbreakers for a wide application range Provides excellent chip control Achieves stable long tool life ID 0 L Holder Cat. No. R L 0 (mm) F (mm) L (mm) Cap Screw Tightening Torque (Nm) Spanner PSC40GM00 R/L 40 22 80 PSC50GM00 R/L 50 27 BFTX0619N 7,5 LT25 PSC40GM90 R/L 40 42 52,5 PSC50GM90 R/L 50 47 55,0 Cassette L Cat. No. R L Grooving Width w (mm) Grooving Depth (mm) Inserts Cap Screw Tightening Torque (Nm) Spanner GNDCM R/L 212 2 12 GCM 20m-m 5,0 <53> GNDCM R/L 312 3 GCM 30 M GNDCM R/L 418 4 GCM 40 M BX0512 LH040 GNDCM R/L 518 5 18 GCM 50 M 6,0 GNDCM R/L 618 6 GCM 60m-m Identification Details - Polygon-Toolholder PSC 40 - G M 00 R Polygonshank Shank Diameter (0 D) Series Symbol GND Application External Multi-Purpose Style 00 = Straight 90 = L-Style Holder Design R = Right L = Left Identification Details - Cassette GND C M Series Symbol Cassette Application GND External Multi-Purpose L 3 12 Holder Design Grooving Width Max. R = Right Grooving Depth L = Left F32 = Euro stock o = Japan stock Recommended Tightening Torque (N m)
