224 Каталог SUMITOMO 2018 Инструмент металлорежущий Пластины Резцы Фрезы Сверла Стр.F28

Каталог SUMITOMO 2018 Инструмент металлорежущий Стр. F28 0224 Lab2u

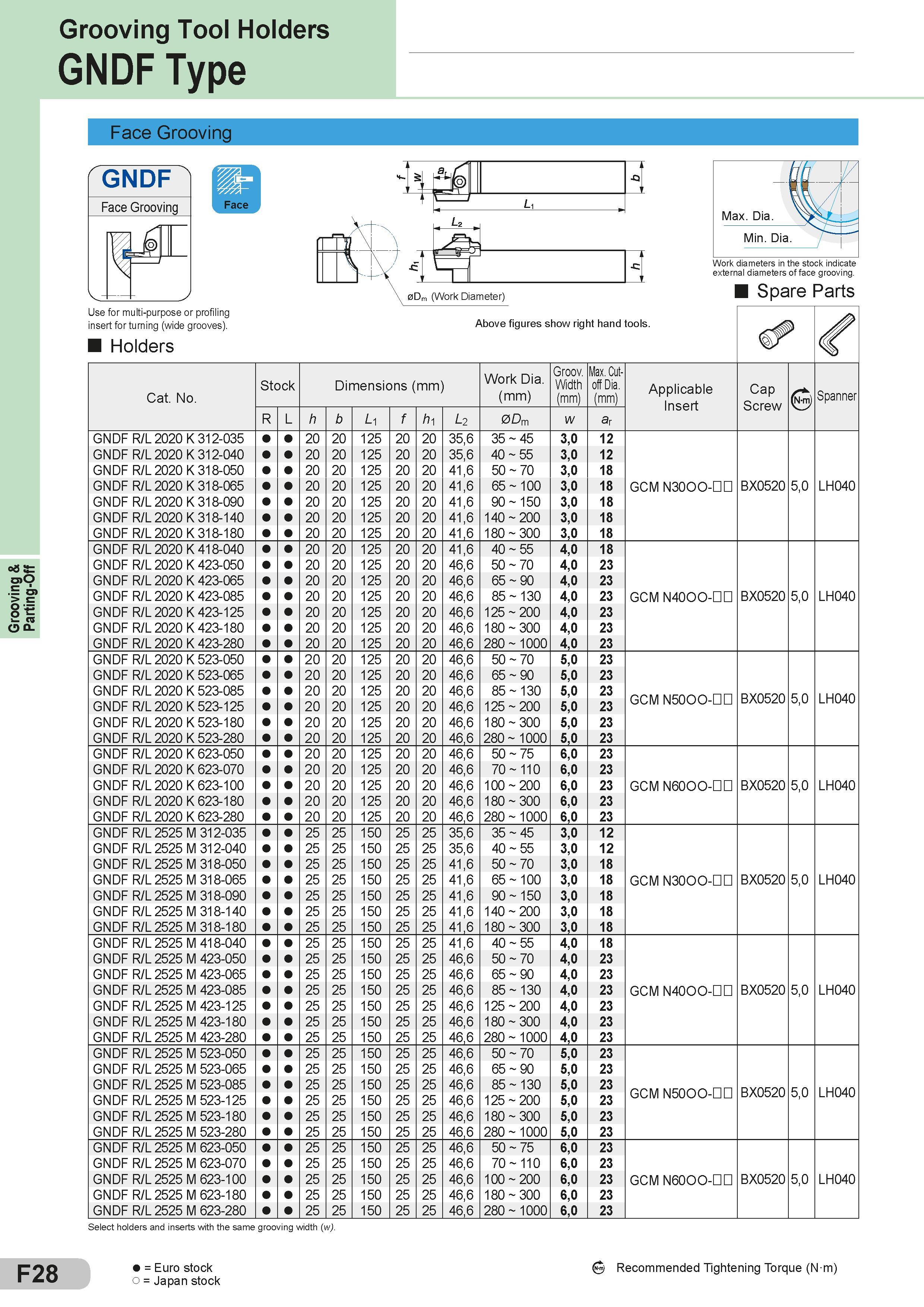

Grooving & Parting-Off Grooving Tool Holders GNDF Type F28 Face Grooving n r X-i x V \ 0Dm (Work Diameter) external diameters of face grooving. Spare Parts Запасные части Sumitomo и комплектующие Use for multi-purpose or profiling nsert for turning (wide grooves). Above figures show right hand tools На эскизе сверху показано правое исполнение инструмента Holders Cat. No. Stock Dimensions (mm) Размеры указаны в мм Work Dia. (mm) Groov. Width (mm) Max. Cutoff Dia. (mm) Applicable Insert Cap Screw Spanner R L h b L1 f h1 L2 0Dm w ar GNDF R/L 2020 K 312-035 20 20 125 20 20 35,6 35 45 3,0 12 GNDF R/L 2020 K 312-040 20 20 125 20 20 35,6 40 55 3,0 12 GNDF R/L 2020 K 318-050 20 20 125 20 20 41,6 50 70 3,0 18 GNDF R/L 2020 K 318-065 20 20 125 20 20 41,6 65 100 3,0 18 GCM N3000-m BX0520 5,0 LH040 GNDF R/L 2020 K 318-090 20 20 125 20 20 41,6 90 150 3,0 18 GNDF R/L 2020 K 318-140 20 20 125 20 20 41,6 140 200 3,0 18 GNDF R/L 2020 K 318-180 20 20 125 20 20 41,6 180 300 3,0 18 GNDF R/L 2020 K 418-040 20 20 125 20 20 41,6 40 55 4,0 18 GNDF R/L 2020 K 423-050 20 20 125 20 20 46,6 50 70 4,0 23 GNDF R/L 2020 K 423-065 20 20 125 20 20 46,6 65 90 4,0 23 GNDF R/L 2020 K 423-085 20 20 125 20 20 46,6 85 130 4,0 23 GCM N4000-M BX0520 5,0 LH040 GNDF R/L 2020 K 423-125 20 20 125 20 20 46,6 125 200 4,0 23 GNDF R/L 2020 K 423-180 20 20 125 20 20 46,6 180 300 4,0 23 GNDF R/L 2020 K 423-280 20 20 125 20 20 46,6 280 1000 4,0 23 GNDF R/L 2020 K 523-050 20 20 125 20 20 46,6 50 70 5,0 23 GNDF R/L 2020 K 523-065 20 20 125 20 20 46,6 65 90 5,0 23 GNDF R/L 2020 K 523-085 20 20 125 20 20 46,6 85 130 5,0 23 GCM N5000-M BX0520 5,0 LH040 GNDF R/L 2020 K 523-125 20 20 125 20 20 46,6 125 200 5,0 23 GNDF R/L 2020 K 523-180 20 20 125 20 20 46,6 180 300 5,0 23 GNDF R/L 2020 K 523-280 20 20 125 20 20 46,6 280 1000 5,0 23 GNDF R/L 2020 K 623-050 20 20 125 20 20 46,6 50 75 6,0 23 GNDF R/L 2020 K 623-070 20 20 125 20 20 46,6 70 110 6,0 23 GNDF R/L 2020 K 623-100 20 20 125 20 20 46,6 100 200 6,0 23 GCM N6000-M BX0520 5,0 LH040 GNDF R/L 2020 K 623-180 20 20 125 20 20 46,6 180 300 6,0 23 GNDF R/L 2020 K 623-280 20 20 125 20 20 46,6 280 1000 6,0 23 GNDF R/L 2525 M 312-035 25 25 150 25 25 35,6 35 45 3,0 12 GNDF R/L 2525 M 312-040 25 25 150 25 25 35,6 40 55 3,0 12 GNDF R/L 2525 M 318-050 25 25 150 25 25 41,6 50 70 3,0 18 GNDF R/L 2525 M 318-065 25 25 150 25 25 41,6 65 100 3,0 18 GCM N3000-M BX0520 5,0 LH040 GNDF R/L 2525 M 318-090 25 25 150 25 25 41,6 90 150 3,0 18 GNDF R/L 2525 M 318-140 25 25 150 25 25 41,6 140 200 3,0 18 GNDF R/L 2525 M 318-180 25 25 150 25 25 41,6 180 300 3,0 18 GNDF R/L 2525 M 418-040 25 25 150 25 25 41,6 40 55 4,0 18 GNDF R/L 2525 M 423-050 25 25 150 25 25 46,6 50 70 4,0 23 GNDF R/L 2525 M 423-065 25 25 150 25 25 46,6 65 90 4,0 23 GNDF R/L 2525 M 423-085 25 25 150 25 25 46,6 85 130 4,0 23 GCM N4000-M BX0520 5,0 LH040 GNDF R/L 2525 M 423-125 25 25 150 25 25 46,6 125 200 4,0 23 GNDF R/L 2525 M 423-180 25 25 150 25 25 46,6 180 300 4,0 23 GNDF R/L 2525 M 423-280 25 25 150 25 25 46,6 280 1000 4,0 23 GNDF R/L 2525 M 523-050 25 25 150 25 25 46,6 50 70 5,0 23 GNDF R/L 2525 M 523-065 25 25 150 25 25 46,6 65 90 5,0 23 GNDF R/L 2525 M 523-085 25 25 150 25 25 46,6 85 130 5,0 23 GCM N5000-M BX0520 5,0 LH040 GNDF R/L 2525 M 523-125 25 25 150 25 25 46,6 125 200 5,0 23 GNDF R/L 2525 M 523-180 25 25 150 25 25 46,6 180 300 5,0 23 GNDF R/L 2525 M 523-280 25 25 150 25 25 46,6 280 1000 5,0 23 GNDF R/L 2525 M 623-050 25 25 150 25 25 46,6 50 75 6,0 23 GNDF R/L 2525 M 623-070 25 25 150 25 25 46,6 70 110 6,0 23 GNDF R/L 2525 M 623-100 25 25 150 25 25 46,6 100 200 6,0 23 GCM N6000-M BX0520 5,0 LH040 GNDF R/L 2525 M 623-180 25 25 150 25 25 46,6 180 300 6,0 23 GNDF R/L 2525 M 623-280 25 25 150 25 25 46,6 280 1000 6,0 23 Select holders and inserts with the same grooving width (w = Euro stock o = Japan stock Recommended Tightening Torque (N m)
