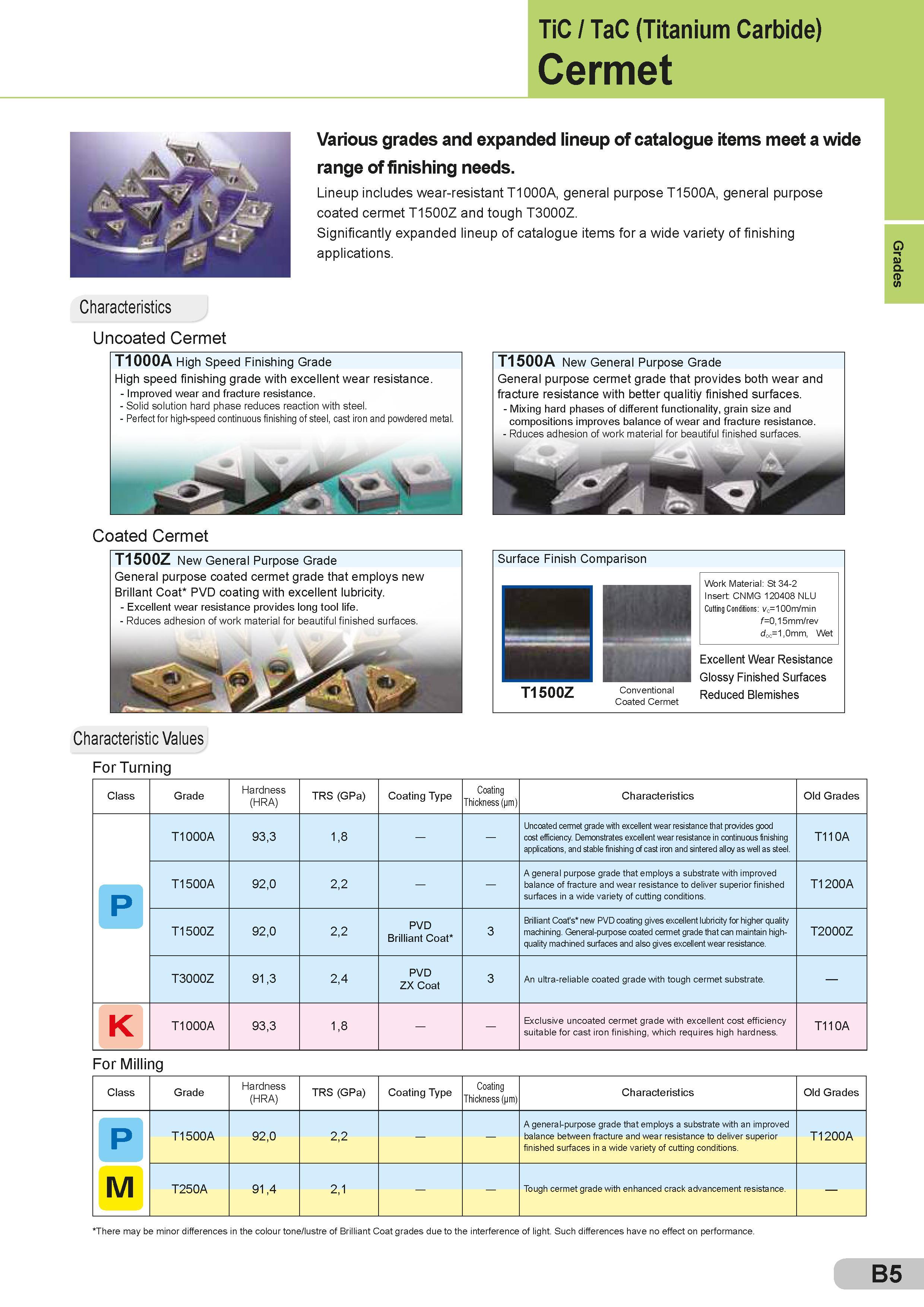

TiC / TaC (Titanium Carbide) Cermet Various grades and expanded lineup of catalogue items meet a wide range of finishing needs. Lineup includes wear-resistant T1000A, general purpose T1500A, general purpose coated cermet T1500Z and tough T3000Z. Significantly expanded lineup of catalogue items for a wide variety of finishing applications. Characteristics Uncoated Cermet T1000A High Speed Finishing Grade High speed finishing grade with excellent wear resistance. - Improved wear and fracture resistance. - Solid solution hard phase reduces reaction with steel. - Perfect for high-speed continuous finishing of steel, cast iron and powdered metal. T1500A New General Purpose Grade General purpose cermet grade that provides both wear and fracture resistance with better qualitiy finished surfaces. - Mixing hard phases of different functionality, grain size and compositions improves balance of wear and fracture resistance. - Rduces adhesion of work material for beautiful finished surfaces. Coated Cermet T1500Z New General Purpose Grade General purpose coated cermet grade that employs new Brillant Coat PVD coating with excellent lubricity. - Excellent wear resistance provides long tool life. - Rduces adhesion of work material for beautiful finished surfaces. Surface Finish Comparison T1500Z Conventional Coated Cermet Excellent Wear Resistance Glossy Finished Surfaces Reduced Blemishes Characteristic Values For Turning Class Grade Hardness (HRA) TRS (GPa) Coating Type Coating Thickness ((Jim) Characteristics Old Grades T1000A 93,3 1,8 - - Uncoated cermet grade with excellent wear resistance that provides good cost efficiency. Demonstrates excellent wear resistance in continuous finishing applications, and stable finishing of cast iron and sintered alloy as well as steel. T110A P T1500A 92,0 2,2 - - A general purpose grade that employs a substrate with improved balance of fracture and wear resistance to deliver superior finished surfaces in a wide variety of cutting conditions. T1200A T1500Z 92,0 2,2 PVD Brilliant Coat 3 Brilliant Coat's new PVD coating gives excellent lubricity for higher quality machining. General-purpose coated cermet grade that can maintain high-quality machined surfaces and also gives excellent wear resistance. T2000Z T3000Z 91,3 2,4 PVD ZX Coat 3 An ultra-reliable coated grade with tough cermet substrate. K T1000A 93,3 1,8 - - Exclusive uncoated cermet grade with excellent cost efficiency suitable for cast iron finishing, which requires high hardness. T110A For Milling Class Grade Hardness (HRA) TRS (GPa) Coating Type Coating Thickness ( m) Characteristics Old Grades P T1500A 92,0 2,2 - - A general-purpose grade that employs a substrate with an improved balance between fracture and wear resistance to deliver superior finished surfaces in a wide variety of cutting conditions. T1200A M T250A 91,4 2,1 - - Tough cermet grade with enhanced crack advancement resistance. There may be minor differences in the colour tone/lustre of Brilliant Coat grades due to the interference of light. Such differences have no effect on performance. B5 Grades
