29 Каталог SUMITOMO 2018 Инструмент металлорежущий Пластины Резцы Фрезы Сверла Стр.B3

Каталог SUMITOMO 2018 Инструмент металлорежущий Стр. B3 0029 Lab2u

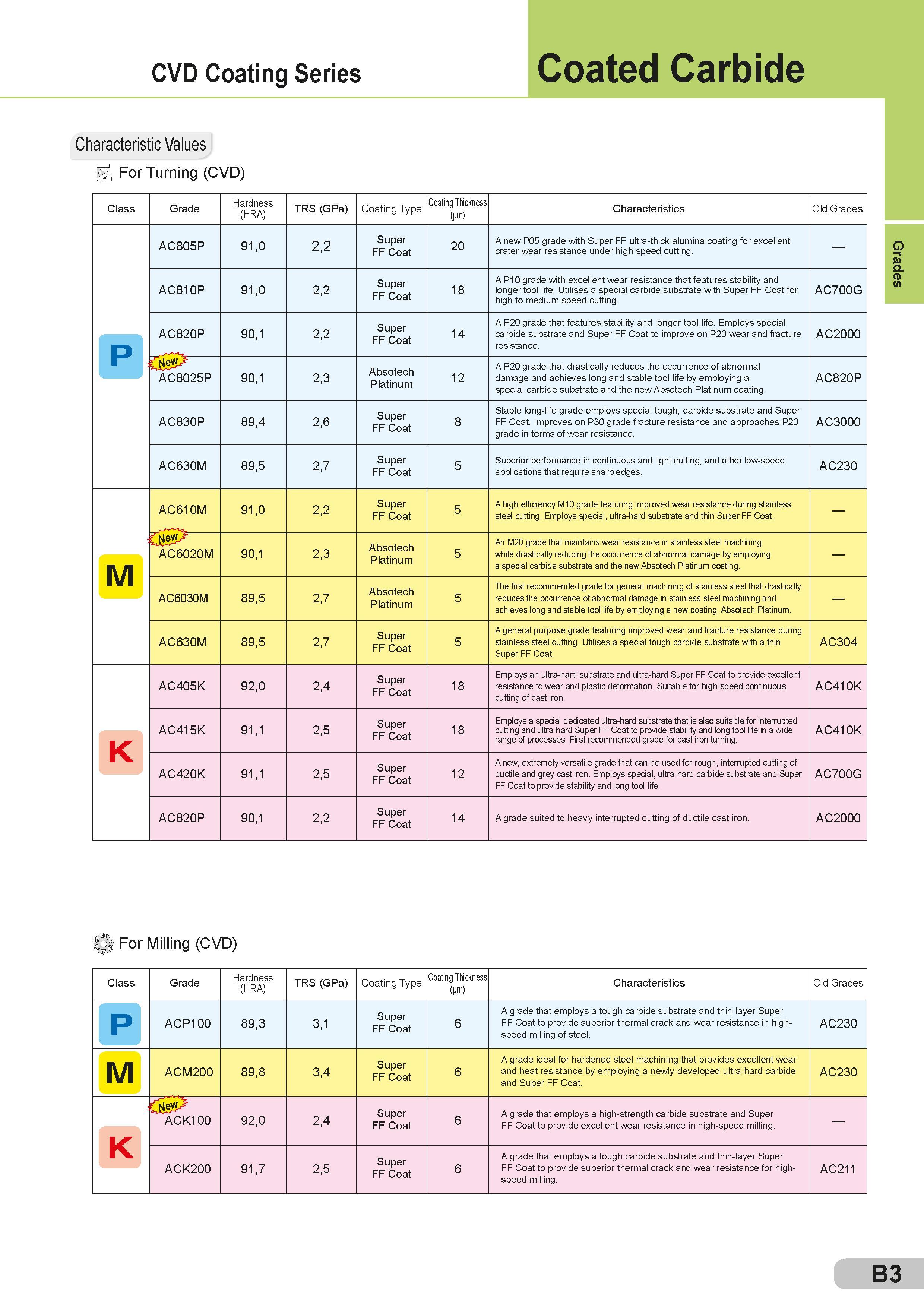

cvd Coating Series Coated Carbide Characteristic Values For Turning (CVD) Class Grade Hardness (HRA) TRS (GPa) Coating Type Coating Thickness W Characteristics Old Grades AC805P 91,0 2,2 Super FF Coat 20 A new P05 grade with Super FF ultra-thick alumina coating for excellent crater wear resistance under high speed cutting. AC810P 91,0 2,2 Super FF Coat 18 A P10 grade with excellent wear resistance that features stability and longer tool life. Utilises a special carbide substrate with Super FF Coat for high to medium speed cutting. AC700G P AC820P 90,1 2,2 Super FF Coat 14 A P20 grade that features stability and longer tool life. Employs special carbide substrate and Super FF Coat to improve on P20 wear and fracture resistance. AC2000 AC8025P 90,1 2,3 Absotech Platinum 12 A P20 grade that drastically reduces the occurrence of abnormal damage and achieves long and stable tool life by employing a special carbide substrate and the new Absotech Platinum coating. AC820P AC830P 89,4 2,6 Super FF Coat 8 Stable long-life grade employs special tough, carbide substrate and Super FF Coat. Improves on P30 grade fracture resistance and approaches P20 grade in terms of wear resistance. AC3000 AC630M 89,5 2,7 Super FF Coat 5 Superior performance in continuous and light cutting, and other low-speed applications that require sharp edges. AC230 AC610M 91,0 2,2 Super FF Coat 5 A high efficiency M10 grade featuring improved wear resistance during stainless steel cutting. Employs special, ultra-hard substrate and thin Super FF Coat. M AC6020M 90,1 2,3 Absotech Platinum 5 An M20 grade that maintains wear resistance in stainless steel machining while drastically reducing the occurrence of abnormal damage by employing a special carbide substrate and the new Absotech Platinum coating. AC6030M 89,5 2,7 Absotech Platinum 5 The first recommended grade for general machining of stainless steel that drastically reduces the occurrence of abnormal damage in stainless steel machining and achieves long and stable tool life by employing a new coating: Absotech Platinum. AC630M 89,5 2,7 Super FF Coat 5 A general purpose grade featuring improved wear and fracture resistance during stainless steel cutting. Utilises a special tough carbide substrate with a thin Super FF Coat. AC304 AC405K 92,0 2,4 Super FF Coat 18 Employs an ultra-hard substrate and ultra-hard Super FF Coat to provide excellent resistance to wear and plastic deformation. Suitable for high-speed continuous cutting of cast iron. AC410K K AC415K 91,1 2,5 Super FF Coat 18 Employs a special dedicated ultra-hard substrate that is also suitable for interrupted cutting and ultra-hard Super FF Coat to provide stability and long tool life in a wide range of processes. First recommended grade for cast iron turning. AC410K AC420K 91,1 2,5 Super FF Coat 12 A new, extremely versatile grade that can be used for rough, interrupted cutting of ductile and grey cast iron. Employs special, ultra-hard carbide substrate and Super FF Coat to provide stability and long tool life. AC700G AC820P 90,1 2,2 Super FF Coat 14 A grade suited to heavy interrupted cutting of ductile cast iron. AC2000 For Milling (CVD) Class Grade Hardness (HRA) TRS (GPa) Coating Type Coating Thickness (pm) Characteristics Old Grades P ACP100 89,3 3,1 Super FF Coat 6 A grade that employs a tough carbide substrate and thin-layer Super FF Coat to provide superior thermal crack and wear resistance in highspeed milling of steel. AC230 M ACM200 89,8 3,4 Super FF Coat 6 A grade ideal for hardened steel machining that provides excellent wear and heat resistance by employing a newly-developed ultra-hard carbide and Super FF Coat. AC230 K ACK100 92,0 2,4 Super FF Coat 6 A grade that employs a high-strength carbide substrate and Super FF Coat to provide excellent wear resistance in high-speed milling. ACK200 91,7 2,5 Super FF Coat 6 A grade that employs a tough carbide substrate and thin-layer Super FF Coat to provide superior thermal crack and wear resistance for highspeed milling. AC211 B3 Grades
