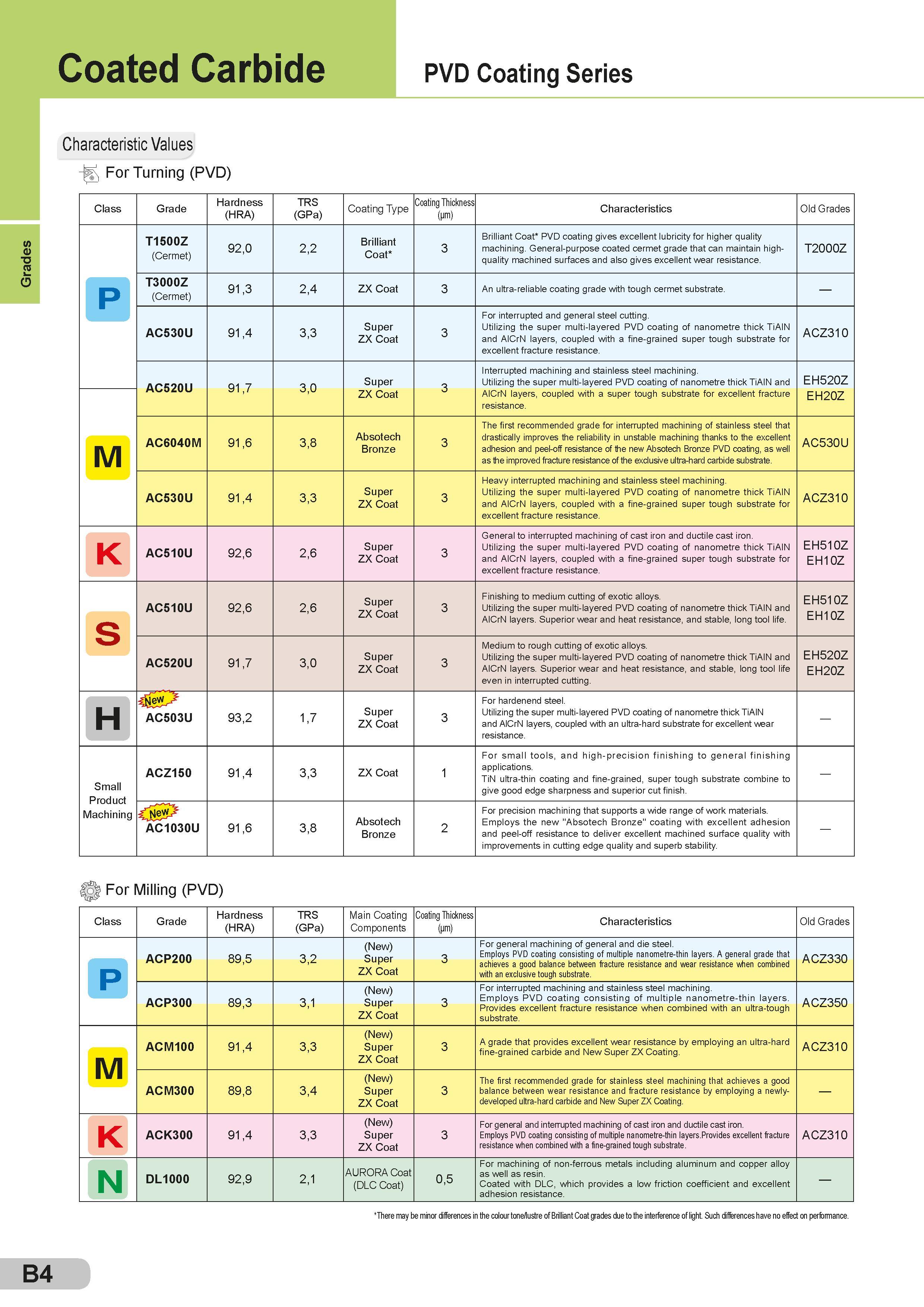

Grades Coated Carbide PVD Coating Series Characteristic Values For Turning (PVD) Class Grade Hardness (HRA) TRS (GPa) Coating Type Coating Thickness (pm) Characteristics Old Grades T1500Z (Cermet) 92,0 2,2 Brilliant Coat 3 Brilliant Coat PVD coating gives excellent lubricity for higher quality machining. General-purpose coated cermet grade that can maintain high-quality machined surfaces and also gives excellent wear resistance. T2000Z P T3000Z (Cermet) 91,3 2,4 ZX Coat 3 An ultra-reliable coating grade with tough cermet substrate. AC530U 91,4 3,3 Super ZX Coat 3 For interrupted and general steel cutting. Utilizing the super multi-layered PVD coating of nanometre thick TiAlN and AlCrN layers, coupled with a fine-grained super tough substrate for excellent fracture resistance. ACZ310 AC520U 91,7 3,0 Super ZX Coat 3 Interrupted machining and stainless steel machining. Utilizing the super multi-layered PVD coating of nanometre thick TiAlN and AlCrN layers, coupled with a super tough substrate for excellent fracture resistance. EH520Z EH20Z M AC6040M 91,6 3,8 Absotech Bronze 3 The first recommended grade for interrupted machining of stainless steel that drastically improves the reliability in unstable machining thanks to the excellent adhesion and peel-off resistance of the new Absotech Bronze PVD coating, as well as the improved fracture resistance of the exclusive ultra-hard carbide substrate. AC530U AC530U 91,4 3,3 Super ZX Coat 3 Heavy interrupted machining and stainless steel machining. Utilizing the super multi-layered PVD coating of nanometre thick TiAlN and AlCrN layers, coupled with a fine-grained super tough substrate for excellent fracture resistance. ACZ310 AC510U 92,6 2,6 Super ZX Coat 3 General to interrupted machining of cast iron and ductile cast iron. Utilizing the super multi-layered PVD coating of nanometre thick TiAlN and AlCrN layers, coupled with a fine-grained super tough substrate for excellent fracture resistance. EH510Z EH10Z K S AC510U 92,6 2,6 Super ZX Coat 3 Finishing to medium cutting of exotic alloys. Utilizing the super multi-layered PVD coating of nanometre thick TiAlN and AlCrN layers. Superior wear and heat resistance, and stable, long tool life. EH510Z EH10Z AC520U 91,7 3,0 Super ZX Coat 3 Medium to rough cutting of exotic alloys. Utilizing the super multi-layered PVD coating of nanometre thick TiAlN and AlCrN layers. Superior wear and heat resistance, and stable, long tool life even in interrupted cutting. EH520Z EH20Z H AC503U 93,2 1,7 Super ZX Coat 3 For hardenend steel. Utilizing the super multi-layered PVD coating of nanometre thick TiAlN and AlCrN layers, coupled with an ultra-hard substrate for excellent wear resistance. Small Product Machining ACZ150 91,4 3,3 ZX Coat 1 For small tools, and high-precision finishing to general finishing applications. TiN ultra-thin coating and fine-grained, super tough substrate combine to give good edge sharpness and superior cut finish. AC1030U 91,6 3,8 Absotech Bronze 2 For precision machining that supports a wide range of work materials. Employs the new "Absotech Bronze" coating with excellent adhesion and peel-off resistance to deliver excellent machined surface quality with improvements in cutting edge quality and superb stability. Class Grade Hardness (HRA) TRS (GPa) Main Coating Components Coating Thickness (pm) Characteristics Old Grades P ACP200 89,5 3,2 (New) Super ZX Coat 3 For general machining of general and die steel. Employs PVD coating consisting of multiple nanometre-thin layers. A general grade that achieves a good balance between fracture resistance and wear resistance when combined with an exclusive tough substrate. ACZ330 ACP300 89,3 3,1 (New) Super ZX Coat 3 For interrupted machining and stainless steel machining. Employs PVD coating consisting of multiple nanometre-thin layers. Provides excellent fracture resistance when combined with an ultra-tough substrate. ACZ350 M ACM100 91,4 3,3 (New) Super ZX Coat 3 A grade that provides excellent wear resistance by employing an ultra-hard fine-grained carbide and New Super ZX Coating. ACZ310 ACM300 89,8 3,4 (New) Super ZX Coat 3 The first recommended grade for stainless steel machining that achieves a good balance between wear resistance and fracture resistance by employing a newly-developed ultra-hard carbide and New Super ZX Coating. K ACK300 91,4 3,3 (New) Super ZX Coat 3 For general and interrupted machining of cast iron and ductile cast iron. Employs PVD coating consisting of multiple nanometre-thin layers.Provides excellent fracture resistance when combined with a fine-grained tough substrate. ACZ310 N DL1000 92,9 2,1 AURORA Coat (DLC Coat) 0,5 For machining of non-ferrous metals including aluminum and copper alloy as well as resin. Coated with DLC, which provides a low friction coefficient and excellent adhesion resistance. There may be minor differences in the colour tone/lustre of Brilliant Coat grades due to the interference of light. Such differences have no effect on performance. B4
