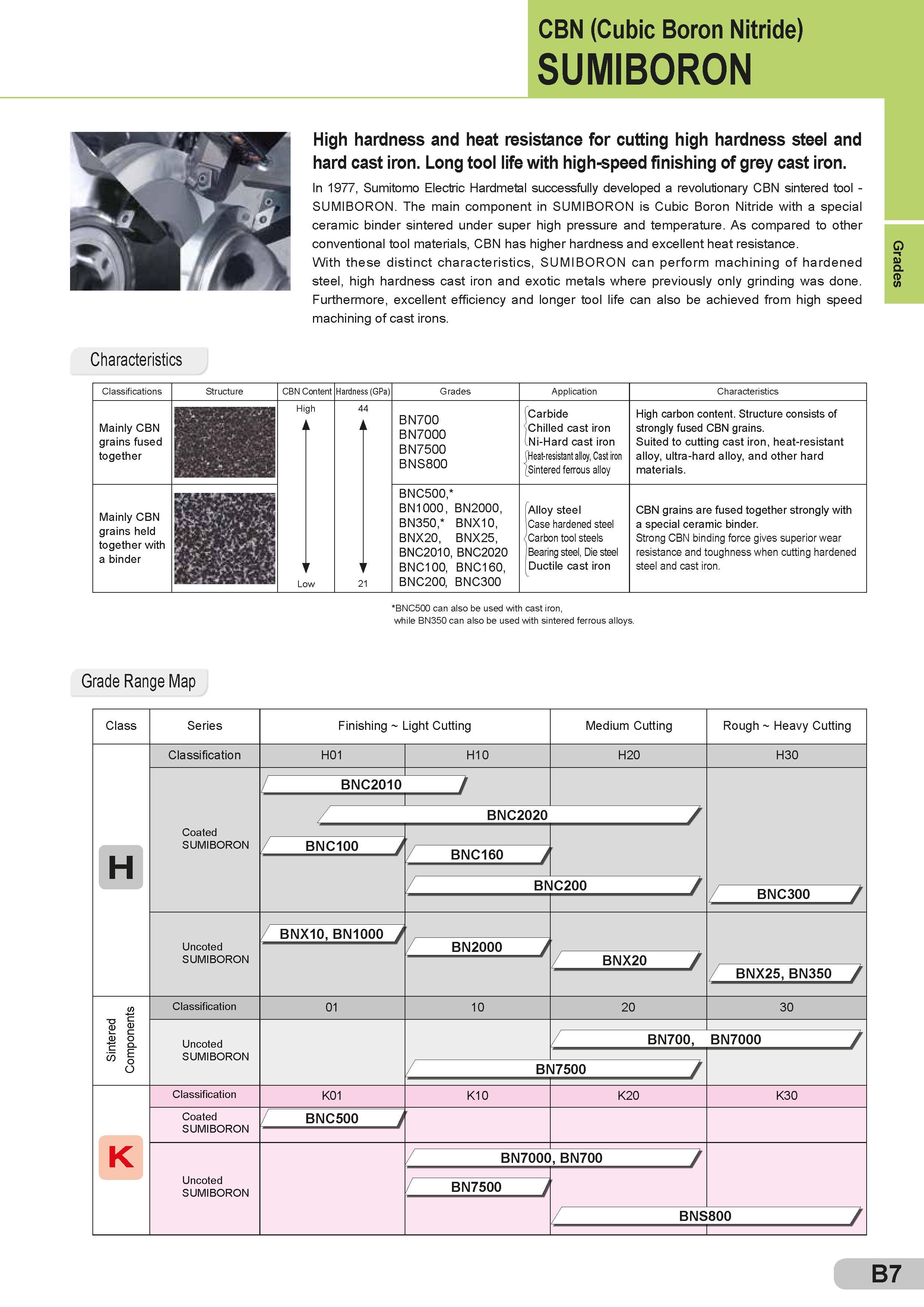

Сверхтвердые режущие материалы компании Сумитомо (Япония) КНБ (кубический нитрид бора) CBN (Cubic Boron Nitride) SUMIBORON Обработка закаленных сталей _ и чугуна High hardness and heat resistance for cutting high hardness steel and hard cast iron. Long tool life with high-speed finishing of grey cast iron. In 1977, Sumitomo Electric Hardmetal successfully developed a revolutionary CBN sintered tool -SUMIBORON. The main component in SUMIBORON is Cubic Boron Nitride with a special ceramic binder sintered under super high pressure and temperature. As compared to other conventional tool materials, CBN has higher hardness and excellent heat resistance. With these distinct characteristics, SUMIBORON can perform machining of hardened steel, high hardness cast iron and exotic metals where previously only grinding was done. Furthermore, excellent efficiency and longer tool life can also be achieved from high speed machining of cast irons. Characteristics Classifications Structure CBN Content Hardness (GPa) Grades Application Characteristics Mainly CBN grains fused together Hi i l Lo gh i f w 4 j 2 4 A J 1 BN700 BN7000 BN7500 BNS800 Carbide Chilled cast iron LNi-Hard cast iron Heat-resistant alloy, Cast iron Sintered ferrous alloy High carbon content. Structure consists of strongly fused CBN grains. Suited to cutting cast iron, heat-resistant alloy, ultra-hard alloy, and other hard materials. Mainly CBN grains held together with a binder BNC500, BN1000, BN2000, BN350, BNX10, BNX20, BNX25, BNC2010, BNC2020 BNC100, BNC160, BNC200, BNC300 Alloy steel Case hardened steel /Carbon tool steels Bearing steel, Die steel Ductile cast iron CBN grains are fused together strongly with a special ceramic binder. Strong CBN binding force gives superior wear resistance and toughness when cutting hardened steel and cast iron. BNC500 can also be used with cast iron, while BN350 can also be used with sintered ferrous alloys. Grade Range Map Class Series Finishing Light Cutting Medium Cutting Rough Heavy Cutting Classification H01 H10 H20 H30 BNC2010 BNC2020 Coated SUMIBORON BNC100 / BNC160 / BNC200 y j BNC300 / Uncoted SUMIBORON BNX10, BN1000 / BN2000 / BNX20 / BNX25, BN350 / Classification 01 10 20 30 Uncoted SUMIBORON BN700, BN7000 BN7500 y j Classification K01 K10 K20 K30 Coated SUMIBORON BNC500 BN7000, BN700 Uncoted SUMIBORON BN7500 7 BNS800 B7 Grades
