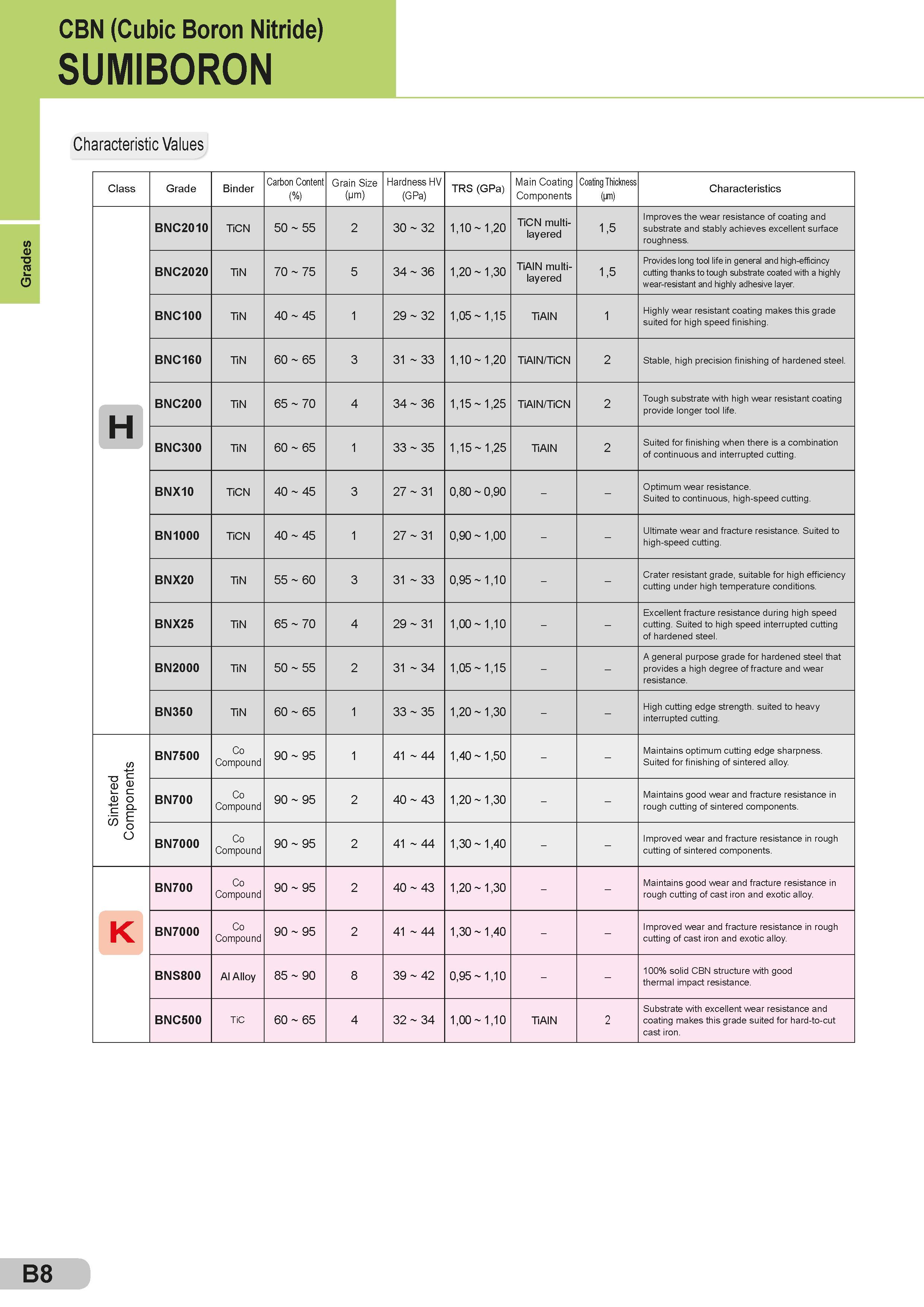

Grades CBN (Cubic Boron Nitride) SUMIBORON Characteristic Values Class Grade Binder Carbon Content (%) Grain Size (Mm) Hardness HV (GPa) TRS (GPa) Main Coating Components Coating Thickness (pm) Characteristics BNC2010 TiCN 50 55 2 30 32 1,10 1,20 TiCN multilayered 1,5 Improves the wear resistance of coating and substrate and stably achieves excellent surface roughness. BNC2020 TiN 70 75 5 34 36 1,20 1,30 TiAlN multilayered 1,5 Provides long tool life in general and high-efficincy cutting thanks to tough substrate coated with a highly wear-resistant and highly adhesive layer. BNC100 TiN 40 45 1 29 32 1,05 1,15 TiAlN 1 Highly wear resistant coating makes this grade suited for high speed finishing. BNC160 TiN 60 65 3 31 33 1,10 1,20 TiAlN/TiCN 2 Stable, high precision finishing of hardened steel. H BNC200 TiN 65 70 4 34 36 1,15 1,25 TiAlN/TiCN 2 Tough substrate with high wear resistant coating provide longer tool life. BNC300 TiN 60 65 1 33 35 1,15 1,25 TiAlN 2 Suited for finishing when there is a combination of continuous and interrupted cutting. BNX10 TiCN 40 45 3 27 31 0,80 0,90 - - Optimum wear resistance. Suited to continuous, high-speed cutting. BN1000 TiCN 40 45 1 27 31 0,90 1,00 - - Ultimate wear and fracture resistance. Suited to high-speed cutting. BNX20 TiN 55 60 3 31 33 0,95 1,10 - - Crater resistant grade, suitable for high efficiency cutting under high temperature conditions. BNX25 TiN 65 70 4 29 31 1,00 1,10 - - Excellent fracture resistance during high speed cutting. Suited to high speed interrupted cutting of hardened steel. BN2000 TiN 50 55 2 31 34 1,05 1,15 - - A general purpose grade for hardened steel that provides a high degree of fracture and wear resistance. BN350 TiN 60 65 1 33 35 1,20 1,30 - - High cutting edge strength. suited to heavy interrupted cutting. Sintered Components BN7500 Co Compound 90 95 1 41 44 1,40 1,50 - - Maintains optimum cutting edge sharpness. Suited for finishing of sintered alloy. BN700 Co Compound 90 95 2 40 43 1,20 1,30 - - Maintains good wear and fracture resistance in rough cutting of sintered components. BN7000 Co Compound 90 95 2 41 44 1,30 1,40 - - Improved wear and fracture resistance in rough cutting of sintered components. BN700 Co Compound 90 95 2 40 43 1,20 1,30 - - Maintains good wear and fracture resistance in rough cutting of cast iron and exotic alloy. K BN7000 Co Compound 90 95 2 41 44 1,30 1,40 - - Improved wear and fracture resistance in rough cutting of cast iron and exotic alloy. BNS800 Al Alloy 85 90 8 39 42 0,95 1,10 - - 100% solid CBN structure with good thermal impact resistance. BNC500 TiC 60 65 4 32 34 1,00 1,10 TiAlN 2 Substrate with excellent wear resistance and coating makes this grade suited for hard-to-cut cast iron. B8
