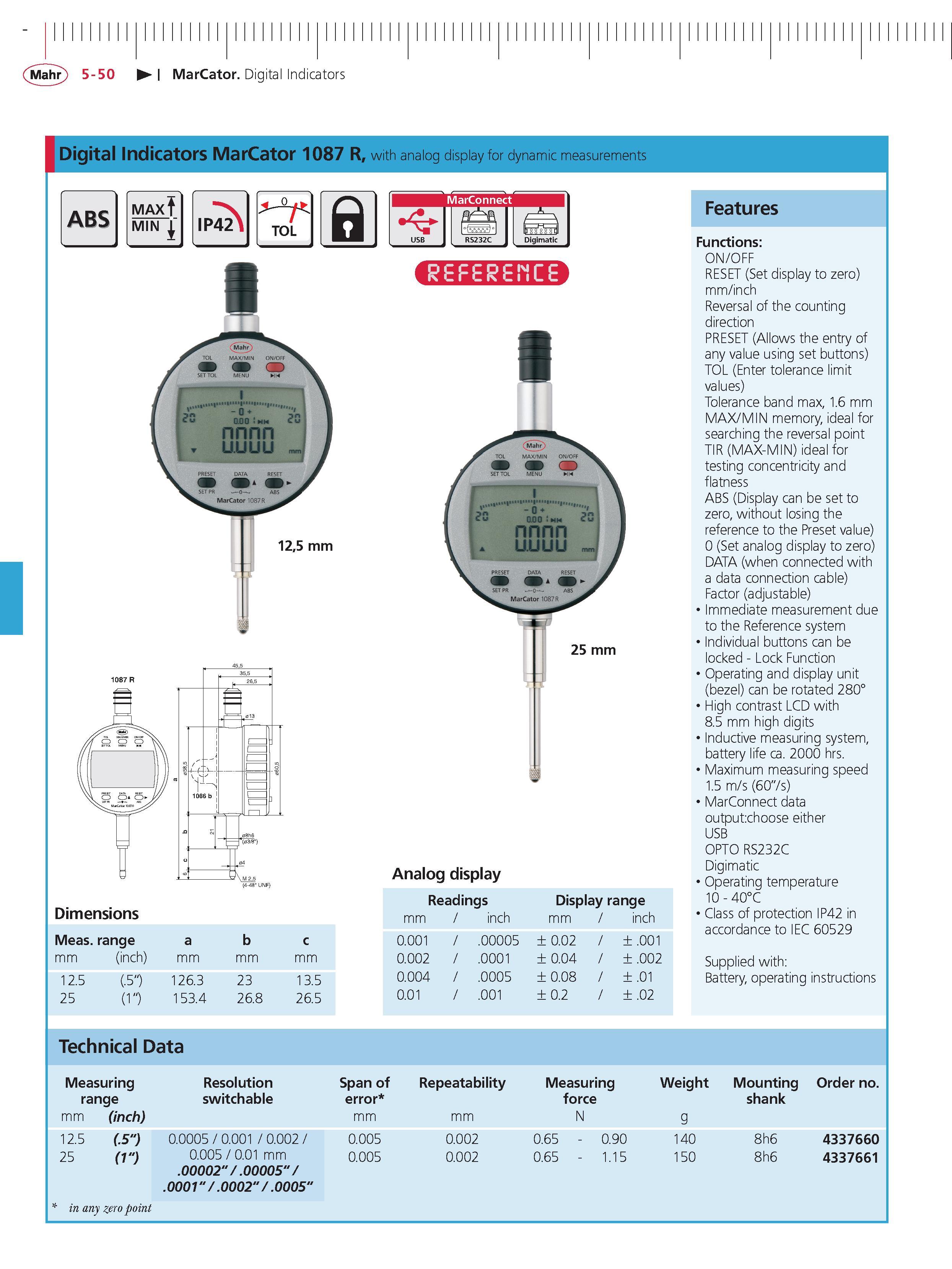

Mahr 5-50 MarCator Digital Indicators Digital Indicators MarCator 1087 R with analog display for dynamic measurements ABS MAX MIN IP42 TOL r MarConnect Digimatic Dimensions Analog display Meas. range a b c mm (inch) mm mm mm 12.5 (.5") 126.3 23 13.5 5 2 153.4 26.8 26.5 Features Functions ON/OFF RESET (Set display to zero) mm inch Reversal of the counting direction PRESET (Allows the entry of any value using set buttons) TOL (Enter tolerance limit values) Tolerance band max 1.6 mm MAX MIN memory ideal for searching the reversal point TIR (MAX-MIN) ideal for testing concentricity and flatness ABS (Display can be set to zero without losing the reference to the Preset value) 0 (Set analog display to zero) DATA (when connected with a data connection cable) Factor (adjustable) Immediate measurement due to the Reference system Individual buttons can be locked - Lock Function Operating and display unit (bezel) can be rotated 280 High contrast LCD with 8.5 mm high digits Inductive measuring system battery life ca. 2000 hrs. Maximum measuring speed 1.5 m s (60" s) MarConnect data output:choose either USB OPTO RS232C Digimatic Operating temperature 10 - 40C Class of protection IP42 in accordance to IEC 60529 Supplied with Battery operating instructions Technical Data Measuring range resolution switchable mm (inch) 12.5 (.5") 25 (1") 0.0005 0.001 0.002 0.005 0.01 mm .00002" .00005" .0001" .0002" .0005" Span of repeatability Measuring weight Mounting order no. error force shank mm mm N g 0.005 0.002 0.65 - 0.90 140 8h6 4337660 0.005 0.002 0.65 - 1.15 150 8h6 4337661 in any zero point
