187 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.5-49

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 5-49 0187 ENG Lab2u

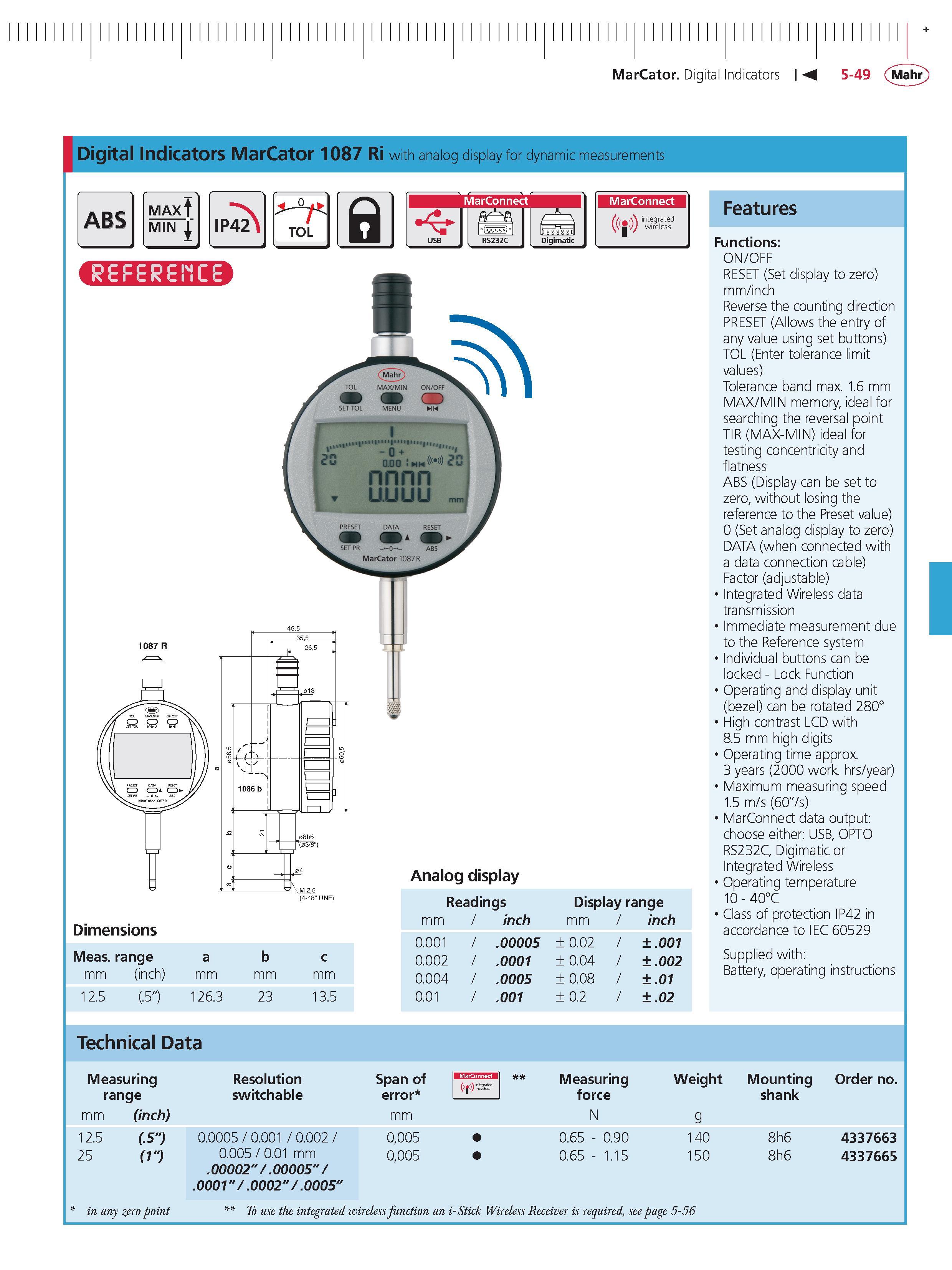

MarCator Digital Indicators M 5-49 Mahr Digital Indicators MarCator 1087 Ri with analog display for dynamic measurements TOL a r MarConnect Digimatic MarConnect ((f)) ins sd Analog display Features 5 08h6 '(03 8"; M 2.5 (4-48"UNF readings Display range mm inch mm inch Dimensions 0.001 .00005 0.02 .001 Meas. range a b c 0.002 .0001 0.04 .002 mm (inch) mm mm mm 0.004 .0005 0.08 .01 12.5 (.5") 126.3 23 13.5 0.01 .001 0.2 .02 Functions ON/OFF RESET (Set display to zero) mm inch Reverse the counting direction PRESET (Allows the entry of any value using set buttons) TOL (Enter tolerance limit values) Tolerance band max. 1.6 mm MAX MIN memory ideal for searching the reversal point TIR (MAX-MIN) ideal for testing concentricity and flatness ABS (Display can be set to zero without losing the reference to the Preset value) 0 (Set analog display to zero) DATA (when connected with a data connection cable) Factor (adjustable) Integrated Wireless data transmission Immediate measurement due to the Reference system Individual buttons can be locked - Lock Function Operating and display unit (bezel) can be rotated 280 High contrast LCD with 8.5 mm high digits Operating time approx. 3 years (2000 work. hrs year) Maximum measuring speed 1.5 m s (60" s) MarConnect data output choose either USB OPTO RS232C Digimatic or Integrated Wireless Operating temperature 10 - 40C Class of protection IP42 in accordance to IEC 60529 Supplied with Battery operating instructions Technical Data Measuring resolution Span of range switchable error mm (inch) mm 12.5 (.5") 0.0005 0.001 0.002 0005 25 (1") 0.005 0.01 mm .00002" .00005" .0001" .0002" .0005" 0005 Measuring force N 0.65 - 0.90 0.65 -1.15 weight g 140 150 Mounting shank 8h6 8h6 order no. 4337663 4337665 in any zero point To use the integrated wireless function an i-Stick Wireless Receiver is required see page 5-56
