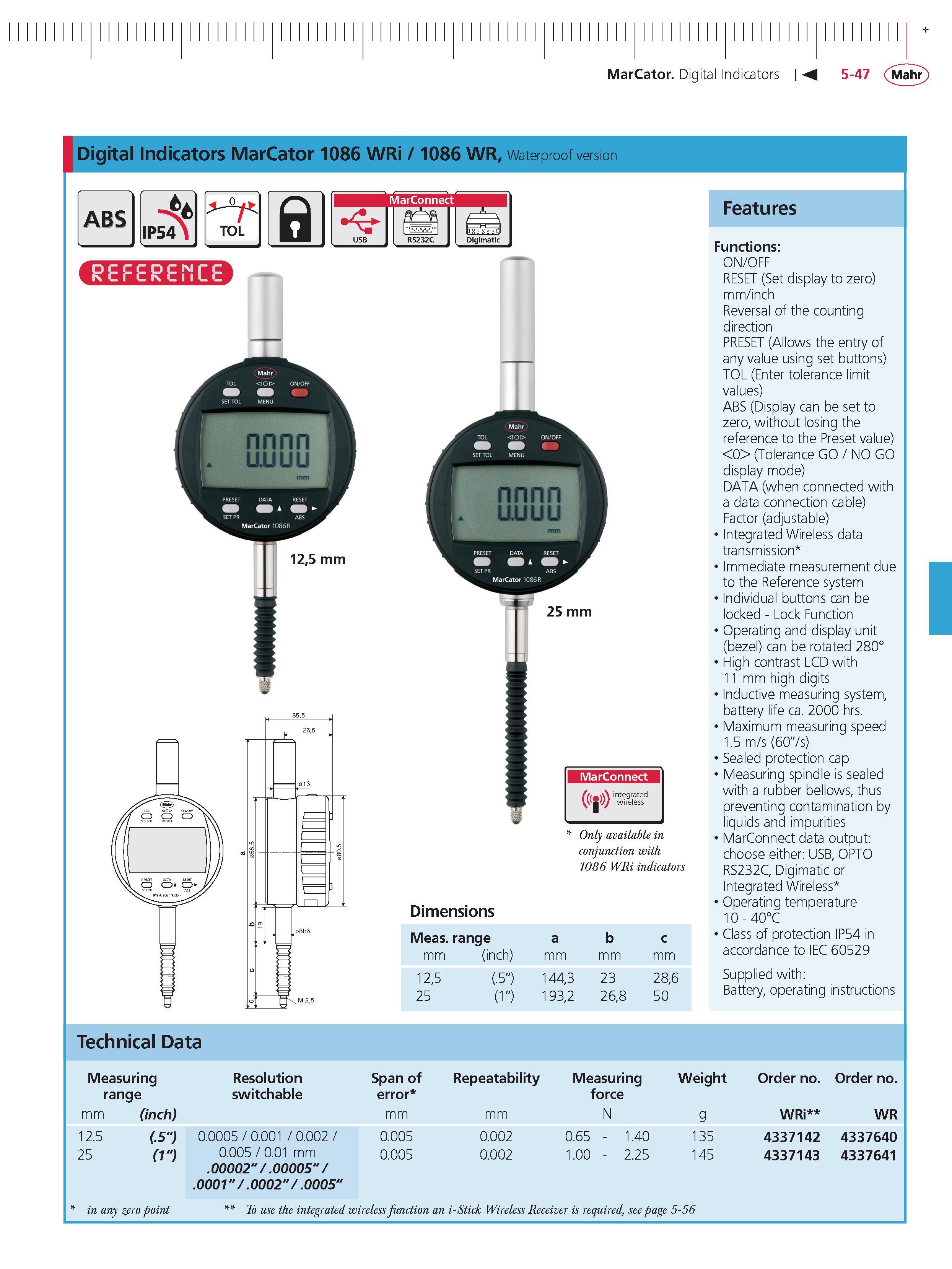

MarCator Digital Indicators 5-47 Mahr Digital Indicators MarCator 1086 WRi 1086 WR Waterproof version ABS TOL a MarConnect Digimatic 25 mm MarConnect 1 Only available in conjunction with 1086 WRi indicators Dimensions Meas. range a b c mm (inch) mm mm mm 125 (.5") 1443 23 286 25 (1") 1932 268 50 Features Functions ON/OFF RESET (Set display to zero) mm inch Reversal of the counting direction PRESET (Allows the entry of any value using set buttons) TOL (Enter tolerance limit values) ABS (Display can be set to zero without losing the reference to the Preset value) 0 (Tolerance GO NO GO display mode) DATA (when connected with a data connection cable) Factor (adjustable) Integrated Wireless data transmission Immediate measurement due to the Reference system Individual buttons can be locked - Lock Function Operating and display unit (bezel) can be rotated 280 High contrast LCD with 11 mm high digits Inductive measuring system battery life ca. 2000 hrs. Maximum measuring speed 1.5 m s (60" s) Sealed protection cap Measuring spindle is sealed with a rubber bellows thus preventing contamination by liquids and impurities MarConnect data output choose either USB OPTO RS232C Digimatic or Integrated Wireless Operating temperature 10 - 40C Class of protection IP54 in accordance to IEC 60529 Supplied with Battery operating instructions Technical Data Measuring range resolution switchable Span of error repeatability Measuring force weight order no. order no. mm (inch) mm mm N g wRi wr 12.5 (.5") 0.0005 0.001 0.002 0.005 0.002 0.65 - 1.40 135 4337142 4337640 ") 1 5 2 0.005 0.01 mm .00002" .00005" .0001" .0002" .0005" 0.005 0.002 1.00 - 2.25 145 4337143 4337641 in any zero point To use the integrated wireless function an i-Stick Wireless Receiver is required see page 5-56
