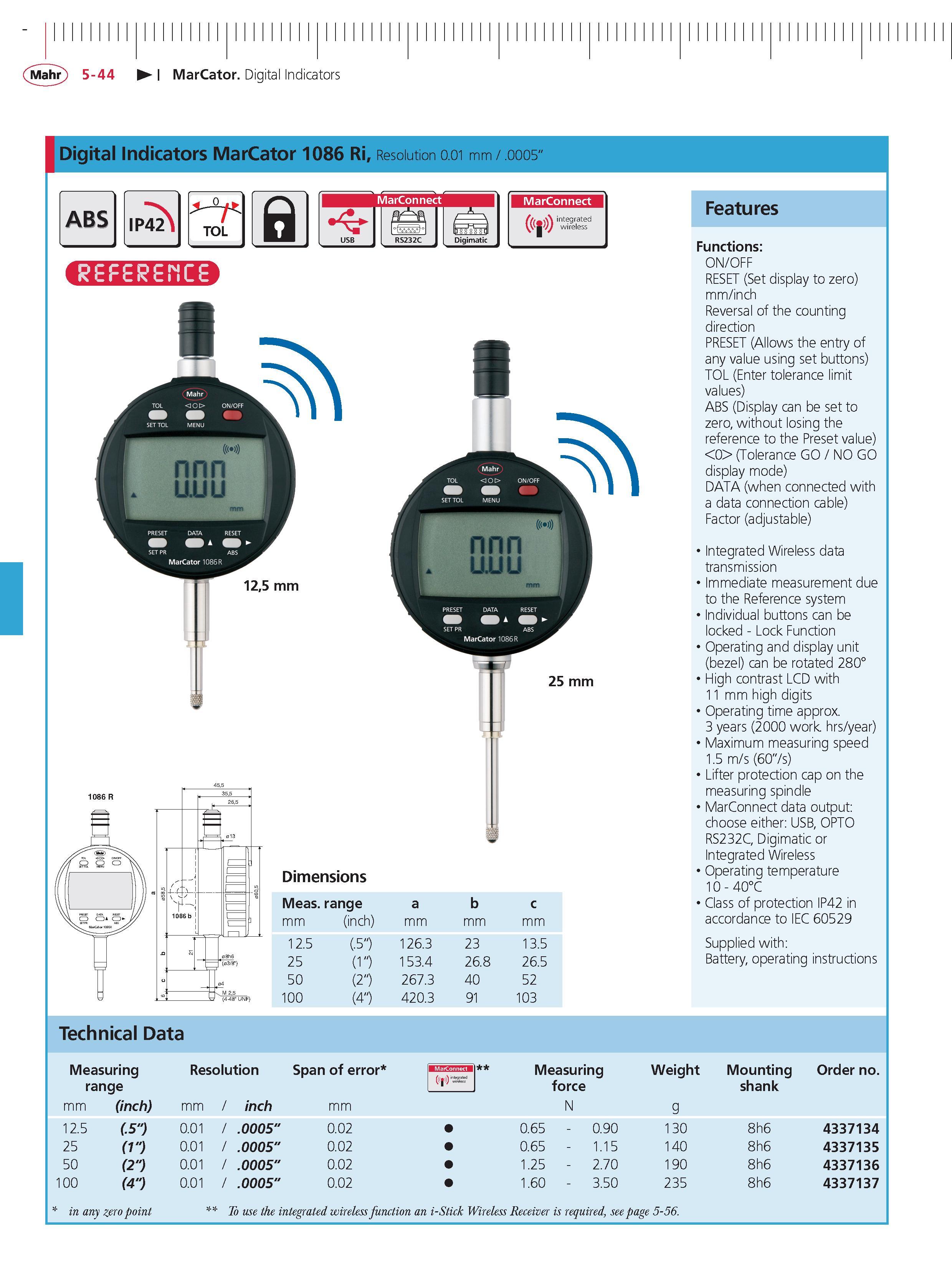

Mahr 5-44 MarCator Digital Indicators Digital Indicators MarCator 1086 Ri Resolution 0.01 mm .0005" ABS IP42 TOL a MarConnect Digimatic MarConnect integrated i ) 25 mm T' 1086 b Dimensions Meas. range a b c mm (inch) mm mm mm 12.5 (.5") 126.3 23 13.5 25 (1 ") 153.4 26.8 26.5 50 (2") 267.3 40 52 100 (4") 420.3 91 103 Features Functions ON/OFF RESET (Set display to zero) mm inch Reversal of the counting direction PRESET (Allows the entry of any value using set buttons) TOL (Enter tolerance limit values) ABS (Display can be set to zero without losing the reference to the Preset value) 0 (Tolerance GO NO GO display mode) DATA (when connected with a data connection cable) Factor (adjustable) Integrated Wireless data transmission Immediate measurement due to the Reference system Individual buttons can be locked - Lock Function Operating and display unit (bezel) can be rotated 280 High contrast LCD with 11 mm high digits Operating time approx. 3 years (2000 work. hrs year) Maximum measuring speed 1.5 m s (60" s) Lifter protection cap on the measuring spindle MarConnect data output choose either USB OPTO RS232C Digimatic or Integrated Wireless Operating temperature 10 - 40C Class of protection IP42 in accordance to IEC 60529 Supplied with Battery operating instructions Technical Data Measuring range resolution Span of error Measuring force weight Mounting shank order no. mm (inch) mm inch mm N g 12.5 (.5") 0.01 .0005 0.02 0.65 - 0.90 130 8h6 4337134 25 (1") 0.01 .0005 0.02 0.65 - 1.15 140 8h6 4337135 50 (2") 0.01 .0005 0.02 1.25 - 2.70 190 8h6 4337136 00 (4") 0.01 .0005 0.02 1.60 - 3.50 235 8h6 4337137 in any zero point To use the integrated wireless function an i-Stick Wireless Receiver is required see page 5-56.
