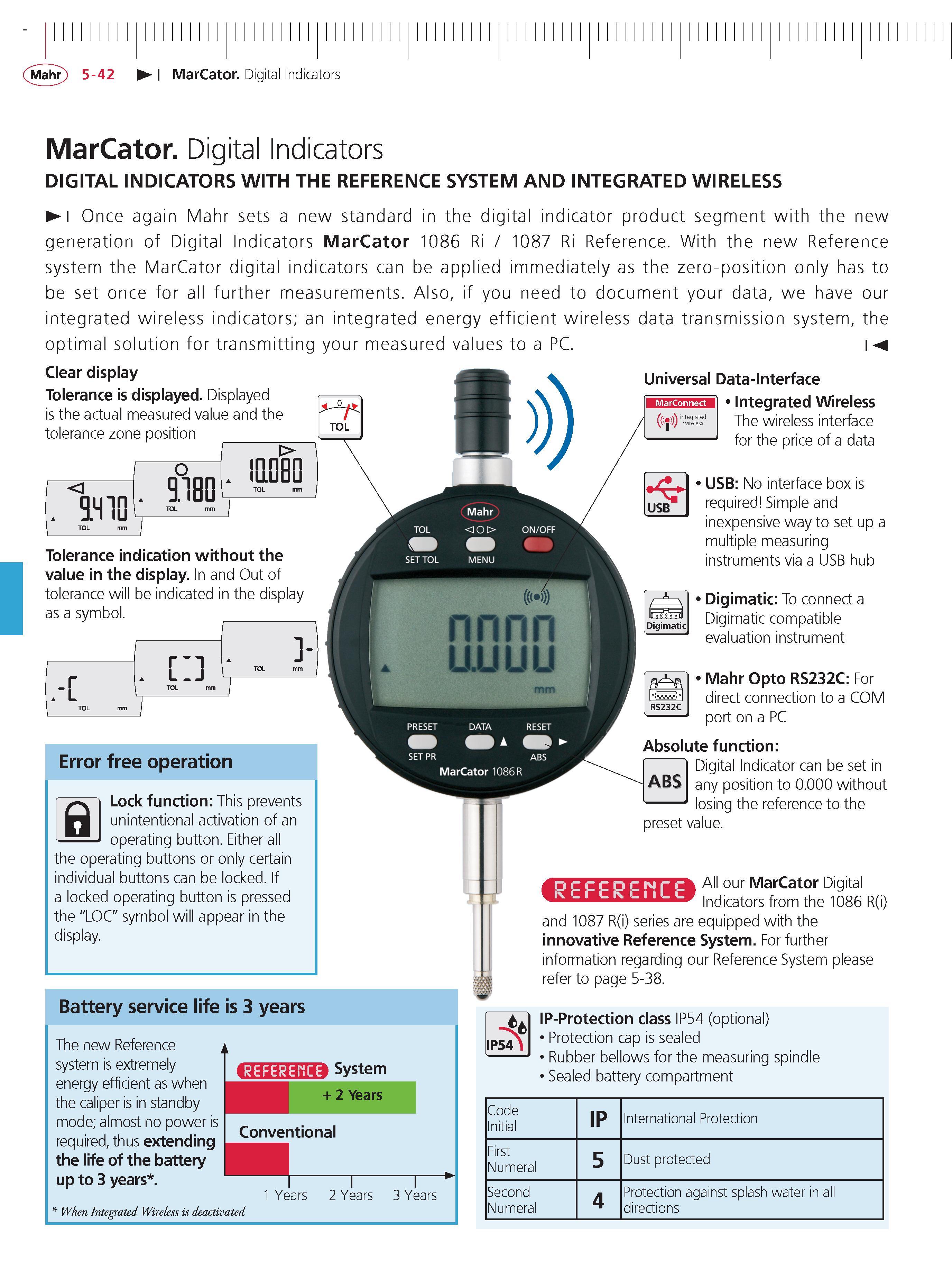

Mahr 5-42 MarCator Digital Indicators MarCator Digital Indicators DIGITAL INDICATORS WITH THE REFERENCE SYSTEM AND INTEGRATED WIRELESS Once again Mahr sets a new standard in the digital indicator product segment with the new generation of Digital Indicators MarCator 1086 Ri 1087 Ri Reference. With the new Reference system the MarCator digital indicators can be applied immediately as the zero-position only has to be set once for all further measurements. Also if you need to document your data we have our integrated wireless indicators; an integrated energy efficient wireless data transmission system the optimal solution for transmitting your measured values to a PC. Clear display Tolerance is displayed. Displayed is the actual measured value and the tolerance zone position m 10.080 v 1 MarConnect ill integrated )) 1 wireless Universal Data-Interface Integrated Wireless The wireless interface for the price of a data Tolerance indication without the value in the display. In and Out of tolerance will be indicated in the display as a symbol. A w Mahr f TOL Wt) o ON/OFF MB 1 r SET TOL MENU USB Error free operation Lock function This prevents unintentional activation of an - operating button. Either all the operating buttons or only certain individual buttons can be locked. If a locked operating button is pressed the "LOC" symbol will appear in the display. PRESET DATA RESET a . SET PR ABS larCator 1086 W' Battery service life is 3 years The new Reference i system is extremely energy efficient as when the caliper is in standby mode; almost no power is required thus extending the life of the battery System + 2 Years Conventional up to 3 years . " 1 Years 2 Years 3 Years When Integrated Wireless is deactivated IP54 i USB No interface box is required Simple and inexpensive way to set up a multiple measuring instruments via a USB hub Digimatic To connect a Digimatic compatible evaluation instrument Mahr Opto RS232C For direct connection to a COM port on a PC Absolute function Digital Indicator can be set in any position to 0.000 without losing the reference to the preset value. All our MarCator Digital Indicators from the 1086 R(i) and 1087 R(i) series are equipped with the innovative Reference System. For further information regarding our Reference System please refer to page 5-38. IP-Protection class IP54 (optional) Protection cap is sealed Rubber bellows for the measuring spindle Sealed battery compartment Code Initial IP International Protection First Numeral 5 Dust protected Second Numeral 4 Protection against splash water in all directions
