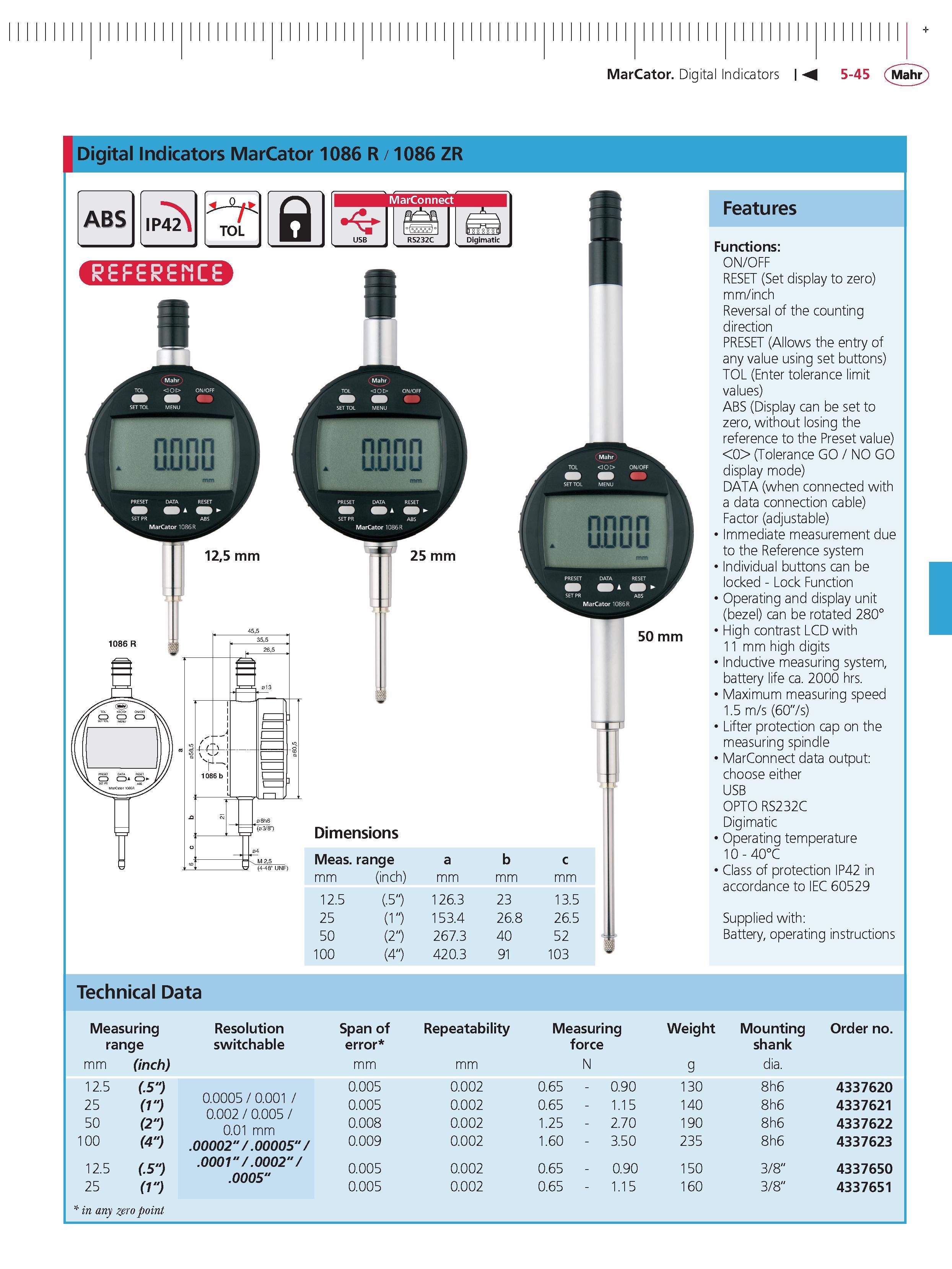

MarCator Digital Indicators 5-45 Mahr Digital Indicators MarCator 1086 R 1086 ZR Meas. range a b c mm (inch) mm mm mm 12.5 (.5") 126.3 23 13.5 25 (1 ") 153.4 26.8 26.5 50 (2") 267.3 40 52 100 (4") 420.3 91 103 Features Functions ON/OFF RESET (Set display to zero) mm inch Reversal of the counting direction PRESET (Allows the entry of any value using set buttons) TOL (Enter tolerance limit values) ABS (Display can be set to zero without losing the reference to the Preset value) 0 (Tolerance GO NO GO display mode) DATA (when connected with a data connection cable) Factor (adjustable) Immediate measurement due to the Reference system Individual buttons can be locked - Lock Function Operating and display unit (bezel) can be rotated 280 High contrast LCD with 11 mm high digits Inductive measuring system battery life ca. 2000 hrs. Maximum measuring speed 1.5 m s (60" s) Lifter protection cap on the measuring spindle MarConnect data output choose either USB OPTO RS232C Digimatic Operating temperature 10 - 40C Class of protection IP42 in accordance to IEC 60529 Supplied with Battery operating instructions Technical Data Measuring range resolution switchable mm (inch) 12.5 (.5") 25 (1") 50 (2") 100 (4") 12.5 (.5") 25 (1") 0.0005 0.001 0.002 0.005 0.01 mm .00002" .00005" .0001" .0002" .0005" h in any zero point Span of error repeatability Measuring force weight Mounting shank order no. mm mm N g dia. 0.005 0.002 0.65 - 0.90 130 8h6 4337620 0.005 0.002 0.65 - 1.15 140 8h6 4337621 0.008 0.002 1.25 - 2.70 190 8h6 4337622 0.009 0.002 1.60 - 3.50 235 8h6 4337623 0.005 0.002 0.65 - 0.90 150 8" 3 4337650 0.005 0.002 0.65 - 1.15 160 3 8" 4337651
