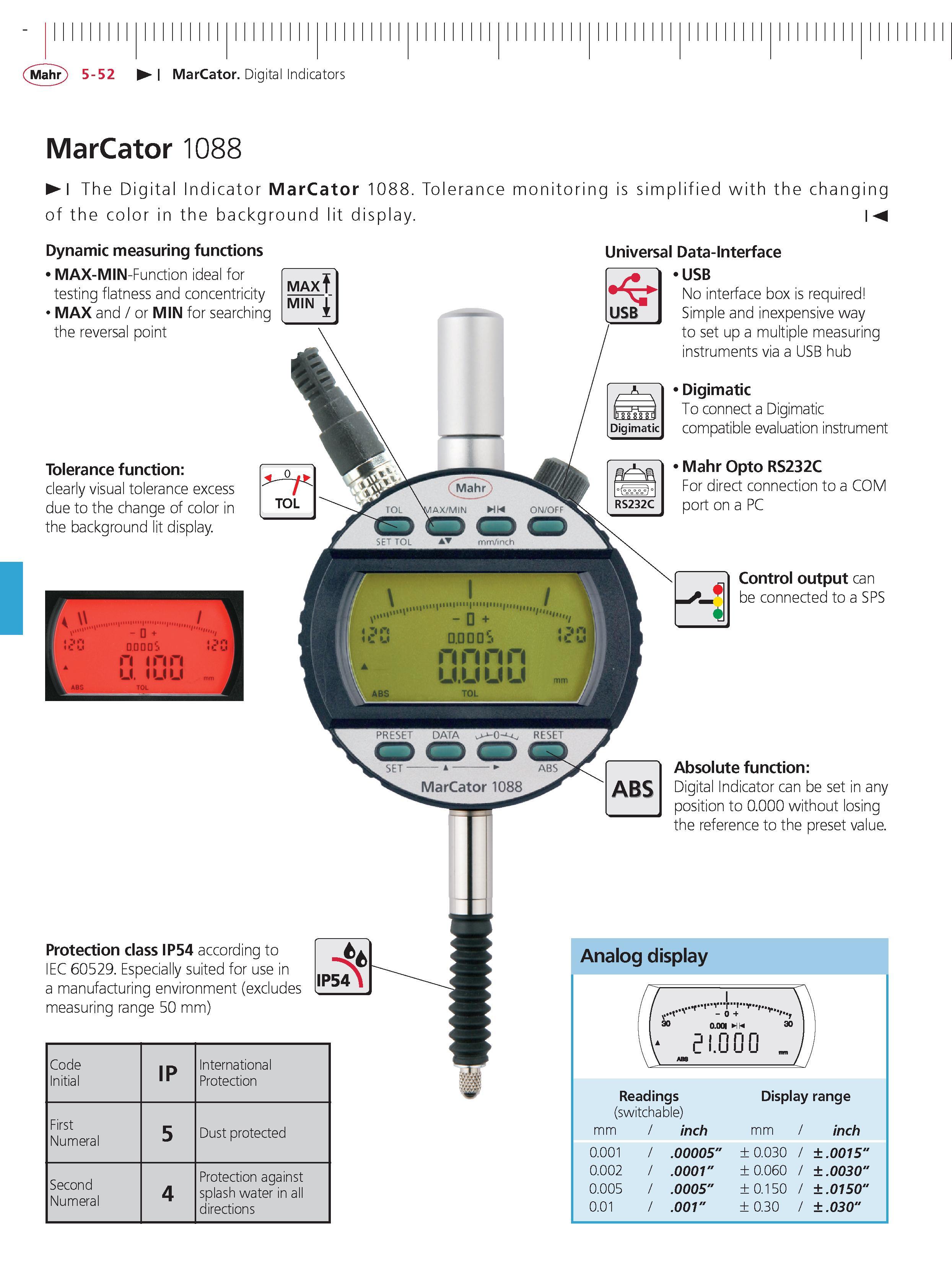

Mahr 5-52 MarCator Digital Indicators MarCator 1088 The Digital Indicator MarCator 1088. Tolerance monitoring is simplified with the changing of the color in the background lit display. Dynamic measuring functions MAX-MIN-Function ideal for testing flatness and concentricity MAX and or MIN for searching the reversal point Tolerance function clearly visual tolerance excess due to the change of color in the background lit display. Universal Data-Interface USB No interface box is required Simple and inexpensive way to set up a multiple measuring instruments via a USB hub Digimatic To connect a Digimatic compatible evaluation instrument Mahr Opto RS232C For direct connection to a COM port on a PC Control output can be connected to a SPS Protection class IP54 according to IEC 60529. Especially suited for use in a manufacturing environment (excludes measuring range 50 mm) Code Initial IP International Protection First Numeral 5 Dust protected Second Numeral 4 Protection against splash water in all directions Absolute function Digital Indicator can be set in any position to 0.000 without losing the reference to the preset value. inch .00005" .0001" .0005" .001" inch 0.030 .0015" 0.060 .0030" 0.150 .0150" 0.30 .030"
