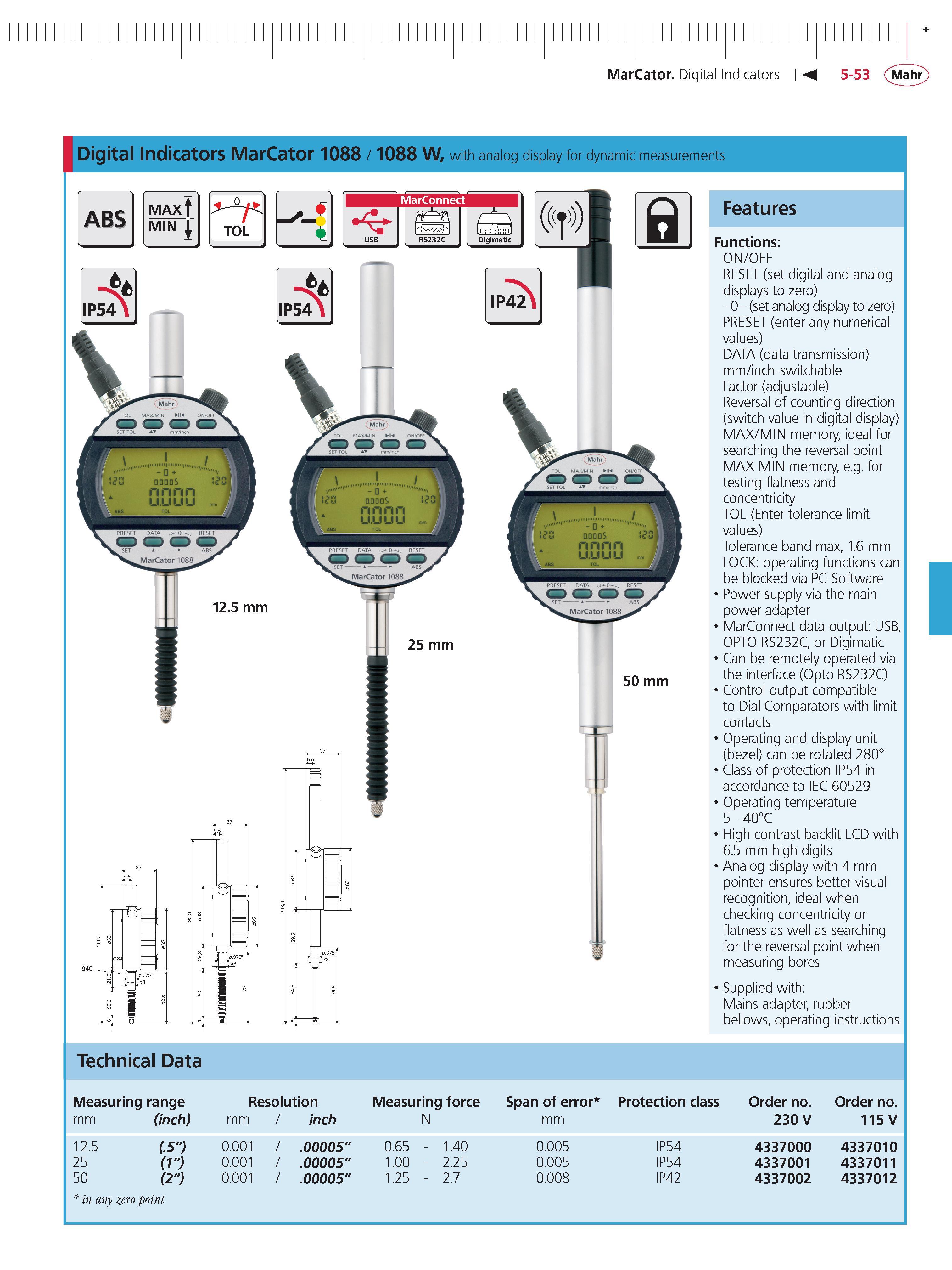

MarCator Digital Indicators 5-53 Mahr Digital Indicators MarCator 1088 1088 W with analog display for dynamic measurements Features Functions ON/OFF RESET (set digital and analog displays to zero) - 0 - (set analog display to zero) PRESET (enter any numerical values) DATA (data transmission) mm inch-switchable Factor (adjustable) Reversal of counting direction (switch value in digital display) MAX MIN memory ideal for searching the reversal point MAX-MIN memory e.g. for testing flatness and concentricity TOL (Enter tolerance limit values) Tolerance band max 1.6 mm LOCK operating functions can be blocked via PC-Software Power supply via the main power adapter MarConnect data output USB OPTO RS232C or Digimatic Can be remotely operated via the interface (Opto RS232C) Control output compatible to Dial Comparators with limit contacts Operating and display unit (bezel) can be rotated 280 Class of protection IP54 in accordance to IEC 60529 Operating temperature 5 - 40C High contrast backlit LCD with 6.5 mm high digits Analog display with 4 mm pointer ensures better visual recognition ideal when checking concentricity or flatness as well as searching for the reversal point when measuring bores Supplied with Mains adapter rubber bellows operating instructions Technical Data Measuring range Resolution Measuring force Span of error Protection class order no. order no. mm (inch) mm inch N mm 230 v 115 v 12.5 (.5") 0.001 .00005" 0.65 - 1.40 0.005 IP54 4337000 4337010 25 (1") 0.001 .00005" 1.00 - 2.25 0.005 IP54 4337001 4337011 50 (2") 0.001 .00005" 1.25 - 2.7 0.008 IP42 4337002 4337012 ' in any zero point
