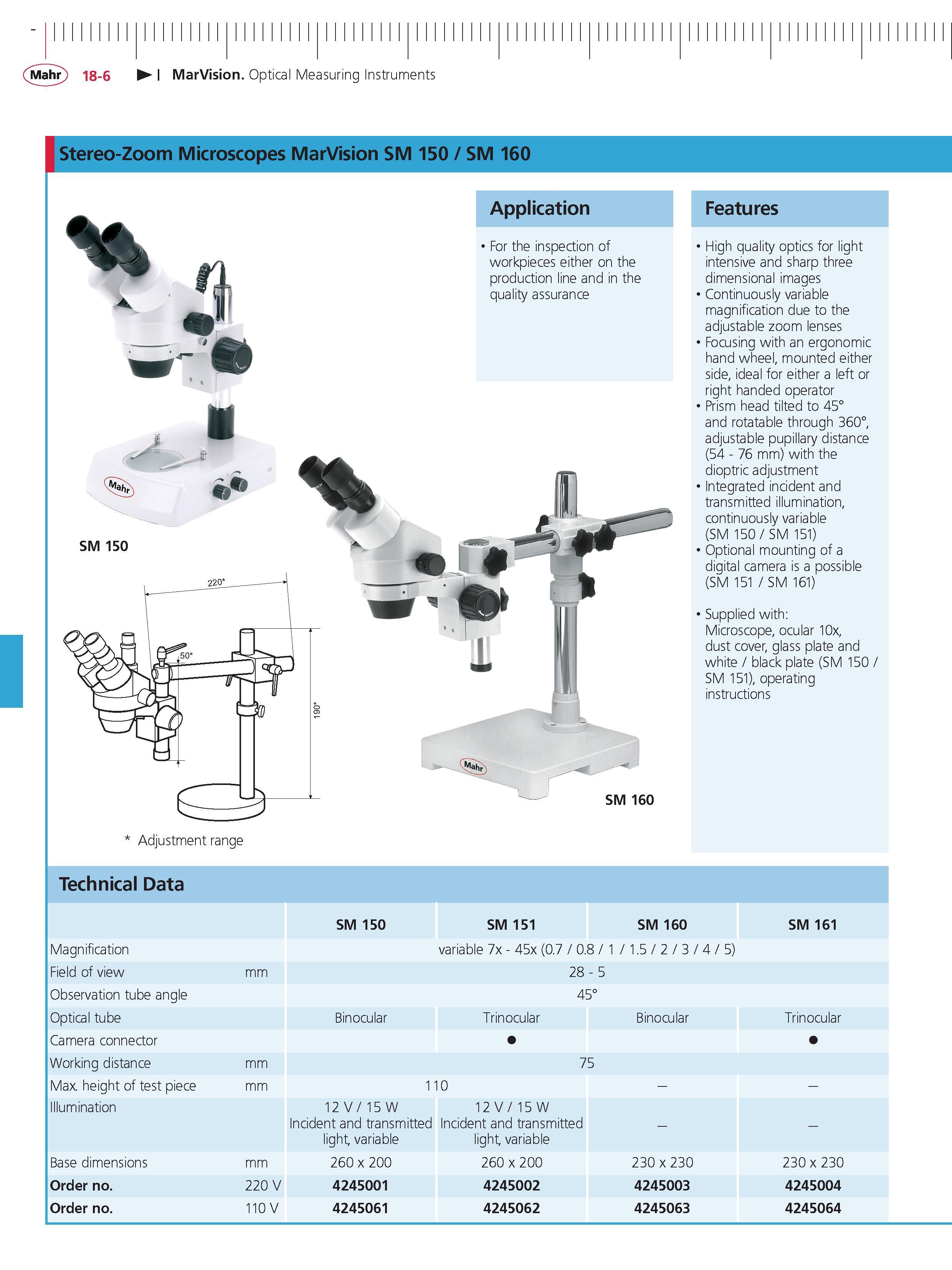

Mahr 18-6 MarVision Optical Measuring Instruments Stereo-Zoom Microscopes MarVision SM 150 SM 160 Application Features For the inspection of workpieces either on the production line and in the quality assurance a SM 150 V High quality optics for light intensive and sharp three dimensional images Continuously variable magnification due to the adjustable zoom lenses Focusing with an ergonomic hand wheel mounted either side ideal for either a left or right handed operator Prism head tilted to 45 and rotatable through 360 adjustable pupillary distance (54 - 76 mm) with the dioptric adjustment Integrated incident and transmitted illumination continuously variable (SM 150 SM 151) Optional mounting of a digital camera is a possible (SM 151 SM 161) Supplied with Microscope ocular 10x dust cover glass plate and white black plate (SM 150 SM 151) operating instructions Adjustment range SM 160 Technical Data SM 150 SM 151 SM 160 SM 161 Magnification variable 7x - 45x (0.7 0.8 1 1.5 2 3 4 5) Field of view mm 28 - 5 Observation tube angle 5 4 Optical tube Binocular Trinocular Binocular Trinocular Camera connector Working distance mm 75 Max. height of test piece mm 110 Illumination 12 V 15 W Incident and transmitted light variable 12 V 15 W Incident and transmitted light variable Base dimensions mm 260 x 200 260 x 200 230x230 230 x 230 Order no. 220 V 4245001 4245002 4245003 4245004 Order no. 110 V 4245061 4245062 4245063 4245064
