544 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.18-3

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 18-3 0544 ENG Lab2u

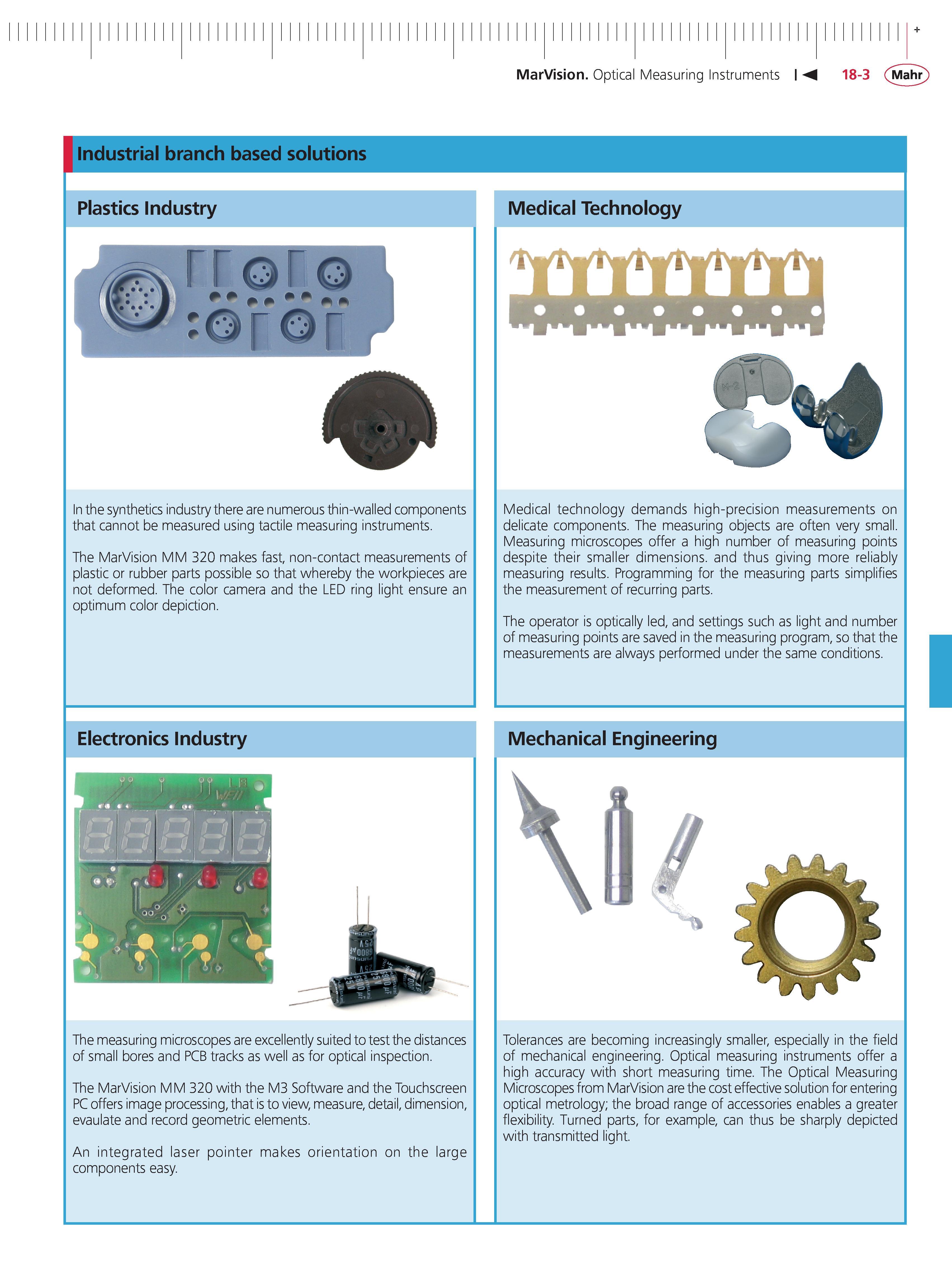

MarVision Optical Measuring Instruments 18-3 Mahr Industrial branch based solutions Plastics Industry In the synthetics industry there are numerous thin-walled components that cannot be measured using tactile measuring instruments. The MarVision MM 320 makes fast non-contact measurements of plastic or rubber parts possible so that whereby the workpieces are not deformed. The color camera and the LED ring light ensure an optimum color depiction. Medical Technology Medical technology demands high-precision measurements on delicate components. The measuring objects are often very small. Measuring microscopes offer a high number of measuring points despite their smaller dimensions. and thus giving more reliably measuring results. Programming for the measuring parts simplifies the measurement of recurring parts. The operator is optically led and settings such as light and number of measuring points are saved in the measuring program so that the measurements are always performed under the same conditions. Electronics Industry Mechanical Engineering The measuring microscopes are excellently suited to test the distances of small bores and PCB tracks as well as for optical inspection. The MarVision MM 320 with the M3 Software and the Touchscreen PC offers image processing that is to view measure detail dimension evaulate and record geometric elements. An integrated laser pointer makes orientation on the large components easy. Tolerances are becoming increasingly smaller especially in the field of mechanical engineering. Optical measuring instruments offer a high accuracy with short measuring time. The Optical Measuring Microscopes from MarVision are the cost effective solution for entering optical metrology; the broad range of accessories enables a greater flexibility. Turned parts for example can thus be sharply depicted with transmitted light.
