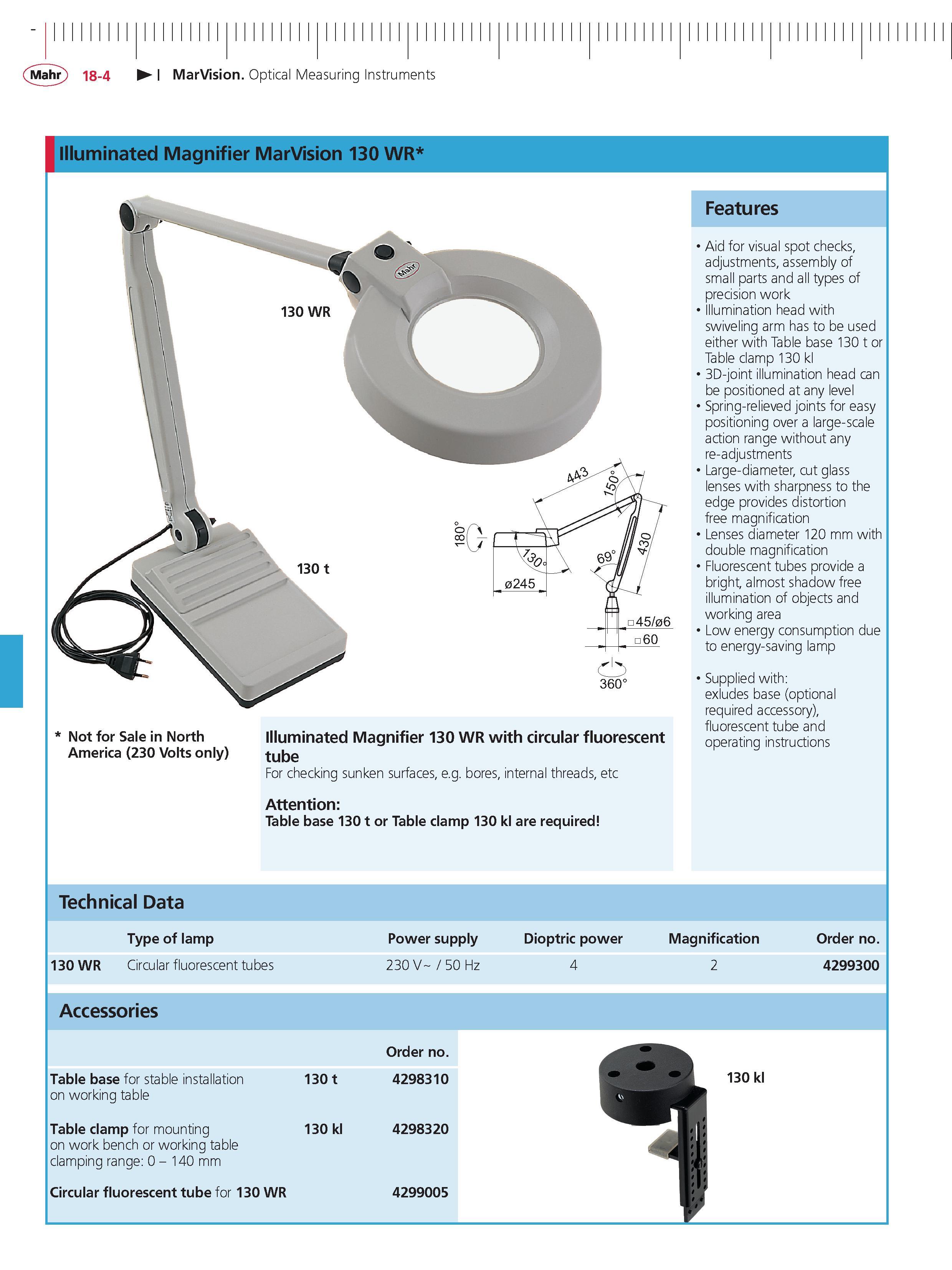

Mahr 18-4 MarVision Optical Measuring Instruments Illuminated Magnifier MarVision 130 WR Features % 130 WR ' 7 % 0245 Not for Sale in North America (230 Volts only) o 360 Illuminated Magnifier 130 WR with circular fluorescent tube For checking sunken surfaces e.g. bores internal threads etc Attention Table base 130 t or Table clamp 130 kl are required Aid for visual spot checks adjustments assembly of small parts and all types of precision work Illumination head with swiveling arm has to be used either with Table base 130 t or Table clamp 130 kl 3D-joint illumination head can be positioned at any level Spring-relieved joints for easy positioning over a large-scale action range without any re-adjustments Large-diameter cut glass lenses with sharpness to the edge provides distortion free magnification Lenses diameter 120 mm with double magnification Fluorescent tubes provide a bright almost shadow free illumination of objects and working area Low energy consumption due to energy-saving lamp Supplied with exludes base (optional required accessory) fluorescent tube and operating instructions Technical Data Type of lamp 130 WR Circular fluorescent tubes Power supply 230 V 50 Hz dioptric power 4 Magnification 2 Order no. 4299300 Accessories
