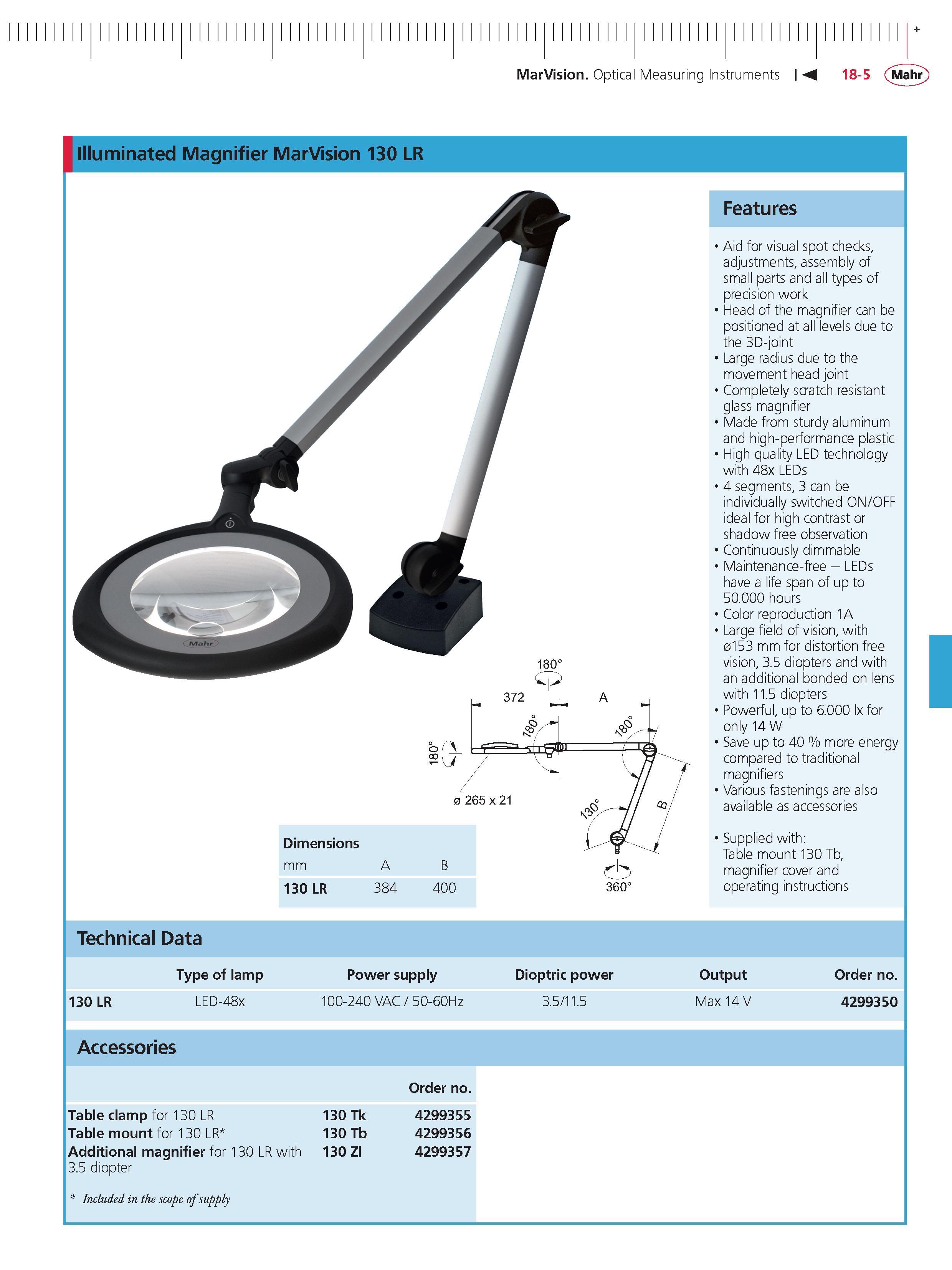

MarVision Optical Measuring Instruments M 18-5 Mahr Illuminated Magnifier MarVision 130 LR Features Aid for visual spot checks adjustments assembly of small parts and all types of precision work Head of the magnifier can be positioned at all levels due to the 3D-joint Large radius due to the movement head joint Completely scratch resistant glass magnifier Made from sturdy aluminum and high-performance plastic High quality LED technology with 48x LEDs 4 segments 3 can be individually switched ON/OFF ideal for high contrast or shadow free observation Continuously dimmable Maintenance-free LEDs have a life span of up to 50.000 hours Color reproduction 1A Large field of vision with o153 mm for distortion free vision 3.5 diopters and with an additional bonded on lens with 11.5 diopters Powerful up to 6.000 lx for only 14 W Save up to 40 % more energy compared to traditional magnifiers Various fastenings are also available as accessories dimensions Supplied with mm A B Table mount 130 Tb cb magnifier cover and 130 LR 384 400 360 operating instructions Technical Data 130 LR Type of lamp LED-48x Power supply 100-240 VAC 50-60Hz dioptric power 3.5 11.5 Output Max 14V Order no. 4299350 Accessories Table clamp for 130 LR 130 Tk Table mount for 130 LR 130 Tb Additional magnifier for 130 LR with 130 Zl 3.5 diopter Included in the scope of supply Order no. 4299355 4299356 4299357 +
