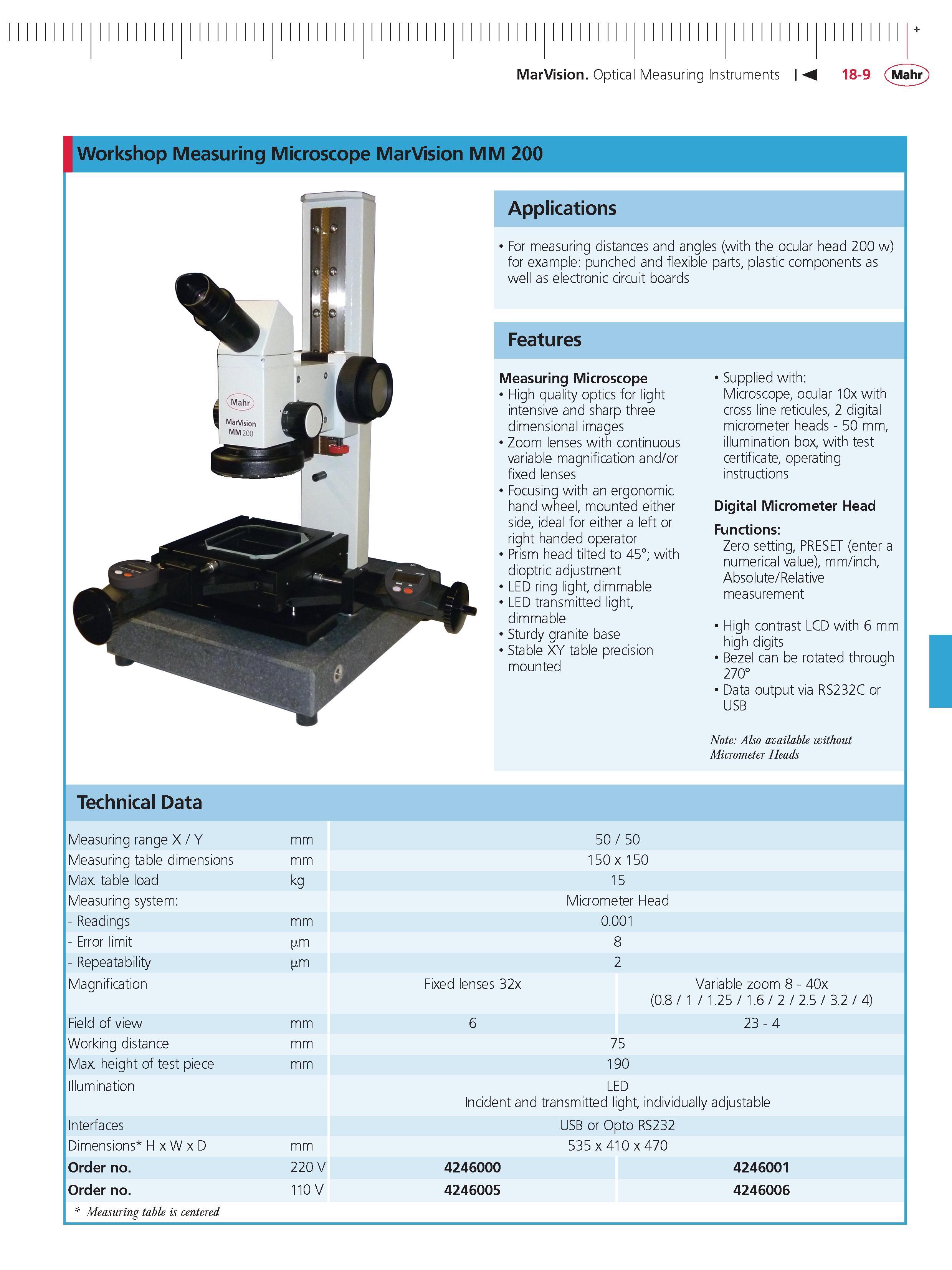

MarVision Optical Measuring Instruments M 18-9 Mahr Workshop Measuring Microscope MarVision MM 200 Applications For measuring distances and angles (with the ocular head 200 w) for example punched and flexible parts plastic components as well as electronic circuit boards Features Measuring Microscope High quality optics for light intensive and sharp three dimensional images Zoom lenses with continuous variable magnification and or fixed lenses Focusing with an ergonomic hand wheel mounted either side ideal for either a left or right handed operator Prism head tilted to 45; with dioptric adjustment LED ring light dimmable LED transmitted light dimmable Sturdy granite base Stable XY table precision mounted Supplied with Microscope ocular 10x with cross line reticules 2 digital micrometer heads - 50 mm illumination box with test certificate operating instructions Digital Micrometer Head Functions Zero setting PRESET (enter a numerical value) mm inch Absolute Relative measurement High contrast LCD with 6 mm high digits Bezel can be rotated through 270 Data output via RS232C or USB Note Also available without Micrometer Heads Technical data Measuring range X Y mm 50 50 Measuring table dimensions mm 150x 150 Max. table load kg 15 Measuring system Micrometer Head - Readings mm 0.001 - Error limit m 8 - Repeatability m 2 Magnification Fixed lenses 32x Variable zoom 8 - 40x (0.8 1 1.25 1.6 2 2.5 3.2 4) Field of view mm 6 23 - 4 Working distance mm 75 Max. height of test piece mm 190 Illumination LED Incident and transmitted light individually adjustable Interfaces USB or Opto RS232 Dimensions H x W x D mm 535 x 410 x 470 Order no. 220 V 4246000 4246001 Order no. 110 V 4246005 4246006 Measuring table is centered
