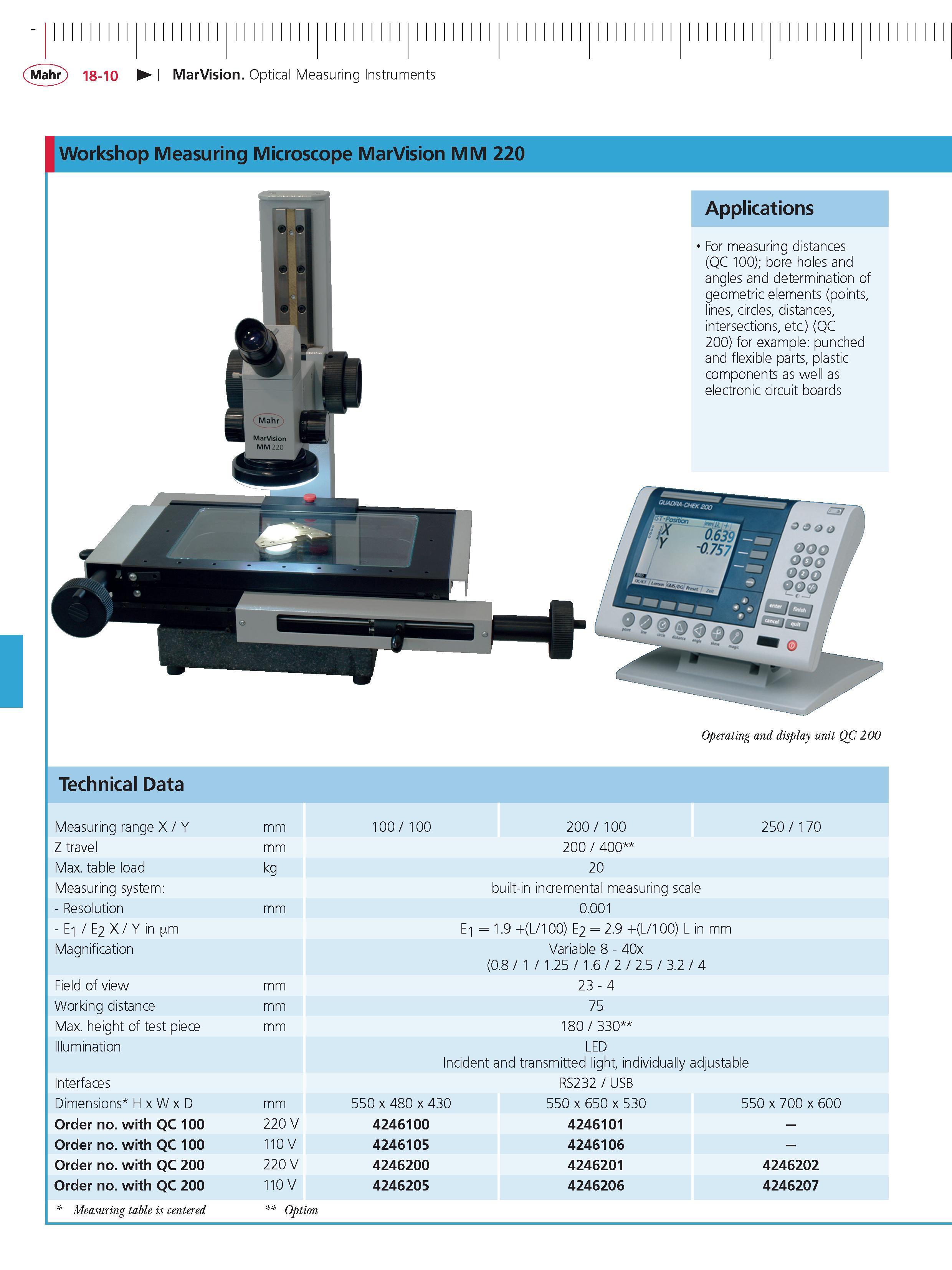

Mahr 18-10 MarVision Optical Measuring Instruments Workshop Measuring Microscope MarVision MM 220 Applications For measuring distances (QC 100); bore holes and angles and determination of geometric elements (points lines circles distances intersections etc.) (QC 200) for example punched and flexible parts plastic components as well as electronic circuit boards Operating and display unit QC 2 00 Technical Data Measuring range X Y mm 100 100 200 100 250 170 Z travel mm 200 400 Max. table load kg 20 Measuring system built-in incremental measuring scale - Resolution mm 0.001 - E1 E2 X Y in m E1 1.9 +(L 100) E2 2.9 +(L 100) L in mm Magnification Variable 8 - 40x (0.8 1 1.25 1.6 2 2.5 3.2 4 Field of view mm 23 - 4 Working distance mm 75 Max. height of test piece mm 180 330 Illumination LED Incident and transmitted light individually adjustable Interfaces RS232 USB Dimensions H x W x D mm 550 x 480 x 430 550 x 650 x 530 550 x 700 x 600 Order no. with QC 100 220 V 4246100 4246101 - Order no. with QC 100 110 V 4246105 4246106 - Order no. with QC 200 220 V 4246200 4246201 4246202 Order no. with QC 200 110 V 4246205 4246206 4246207 Measuring table is centered Option
