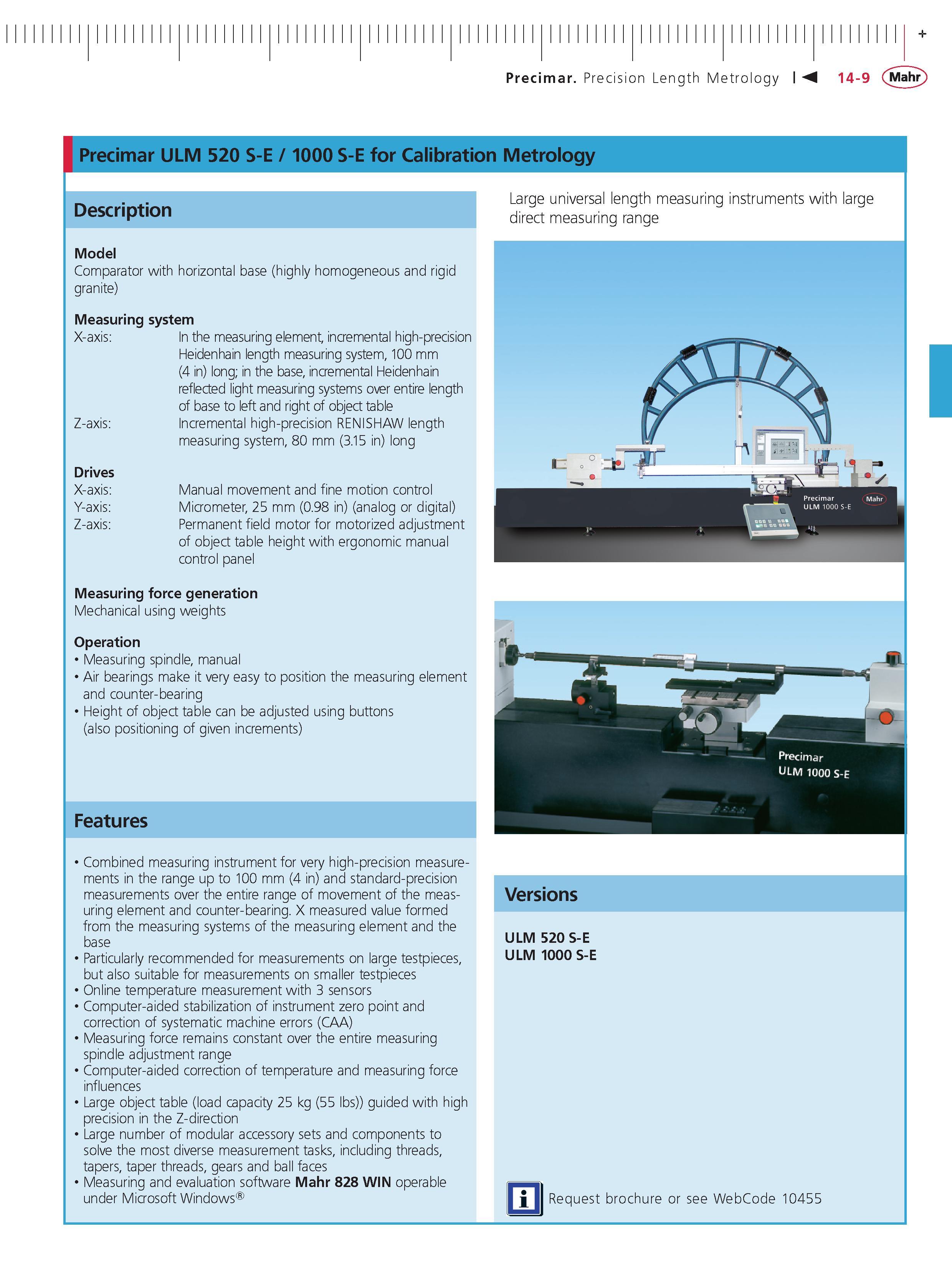

Precimar Precision Length Metrology 14-9 Mahr Precimar ULM 520 S-E 1000 S-E for Calibration Metrology Description Model Comparator with horizontal base (highly homogeneous and rigid granite) Measuring system X-axis Z-axis Drives X-axis Y-axis Z-axis In the measuring element incremental high-precision Heidenhain length measuring system 100 mm (4 in) long; in the base incremental Heidenhain reflected light measuring systems over entire length of base to left and right of object table Incremental high-precision RENISHAW length measuring system 80 mm (3.15 in) long Manual movement and fine motion control Micrometer 25 mm (0.98 in) (analog or digital) Permanent field motor for motorized adjustment of object table height with ergonomic manual control panel Measuring force generation Mechanical using weights Operation Measuring spindle manual Air bearings make it very easy to position the measuring element and counter-bearing Height of object table can be adjusted using buttons (also positioning of given increments) Features Combined measuring instrument for very high-precision measurements in the range up to 100 mm (4 in) and standard-precision measurements over the entire range of movement of the measuring element and counter-bearing. X measured value formed from the measuring systems of the measuring element and the base Particularly recommended for measurements on large testpieces but also suitable for measurements on smaller testpieces Online temperature measurement with 3 sensors Computer-aided stabilization of instrument zero point and correction of systematic machine errors (CAA) Measuring force remains constant over the entire measuring spindle adjustment range Computer-aided correction of temperature and measuring force influences Large object table (load capacity 25 kg (55 lbs)) guided with high precision in the Z-direction Large number of modular accessory sets and components to solve the most diverse measurement tasks including threads tapers taper threads gears and ball faces Measuring and evaluation software Mahr 828 WIN operable under Microsoft Windows Large universal length measuring instruments with large direct measuring range +
