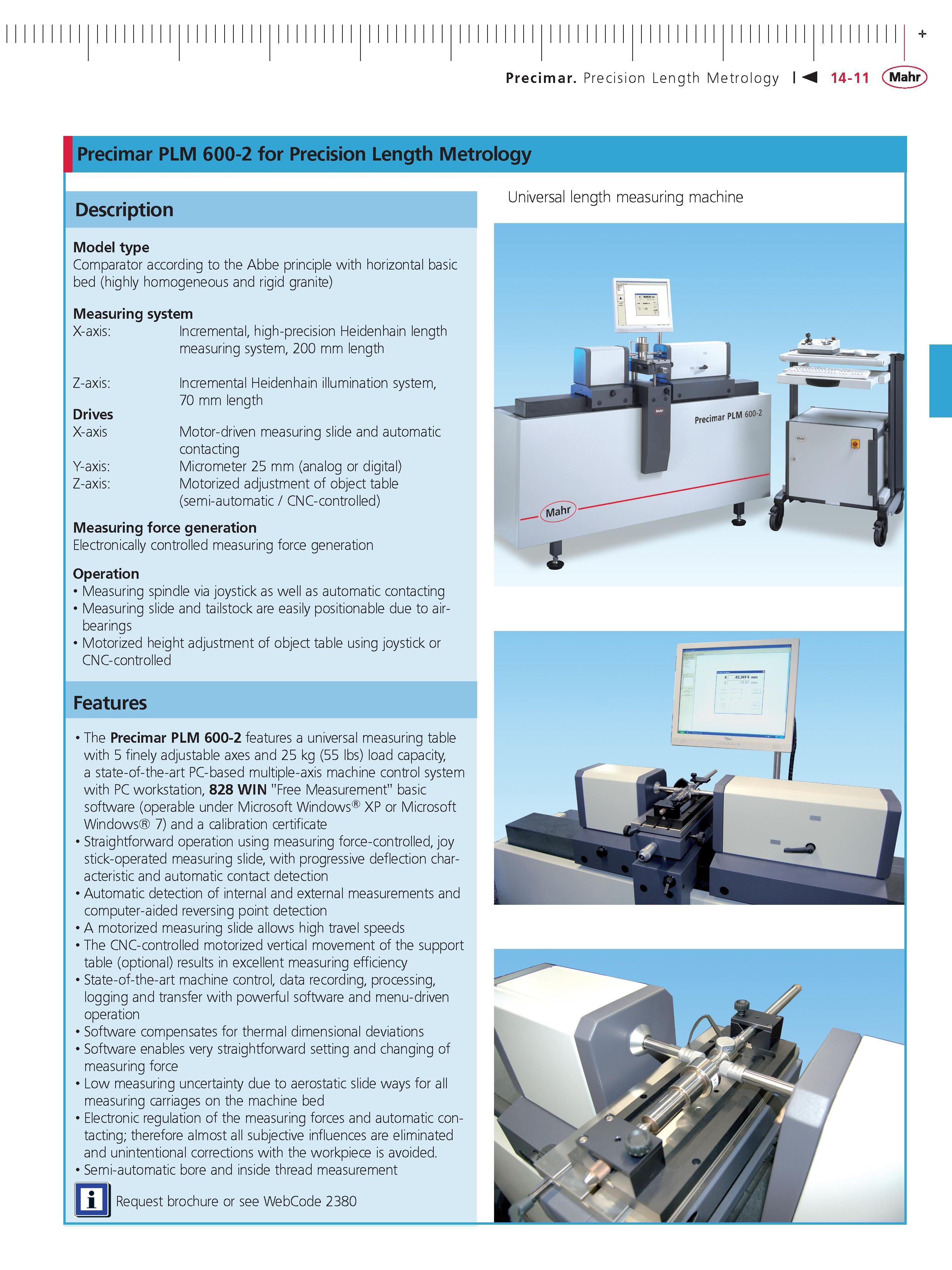

Precimar Precision Length Metrology 14-11 Mahr Precimar PLM 600-2 for Precision Length Metrology Description Model type Comparator according to the Abbe principle with horizontal basic bed (highly homogeneous and rigid granite) Measuring system X-axis Incremental high-precision Heidenhain length measuring system 200 mm length Z-axis Incremental Heidenhain illumination system 70 mm length Drives X-axis Motor-driven measuring slide and automatic contacting Y-axis Micrometer 25 mm (analog or digital) Z-axis Motorized adjustment of object table (semi-automatic CNC-controlled) Measuring force generation Electronically controlled measuring force generation Operation Measuring spindle via joystick as well as automatic contacting Measuring slide and tailstock are easily positionable due to air-bearings Motorized height adjustment of object table using joystick or CNC-controlled Features The Precimar PLM 600-2 features a universal measuring table with 5 finely adjustable axes and 25 kg (55 lbs) load capacity a state-of-the-art PC-based multiple-axis machine control system with PC workstation 828 WIN "Free Measurement" basic software (operable under Microsoft Windows XP or Microsoft Windows 7) and a calibration certificate Straightforward operation using measuring force-controlled joy stick-operated measuring slide with progressive deflection characteristic and automatic contact detection Automatic detection of internal and external measurements and computer-aided reversing point detection A motorized measuring slide allows high travel speeds The CNC-controlled motorized vertical movement of the support table (optional) results in excellent measuring efficiency State-of-the-art machine control data recording processing logging and transfer with powerful software and menu-driven operation Software compensates for thermal dimensional deviations Software enables very straightforward setting and changing of measuring force Low measuring uncertainty due to aerostatic slide ways for all measuring carriages on the machine bed Electronic regulation of the measuring forces and automatic contacting; therefore almost all subjective influences are eliminated and unintentional corrections with the workpiece is avoided. Semi-automatic bore and inside thread measurement Universal length measuring machine m Request brochure or see WebCode 2380 +
