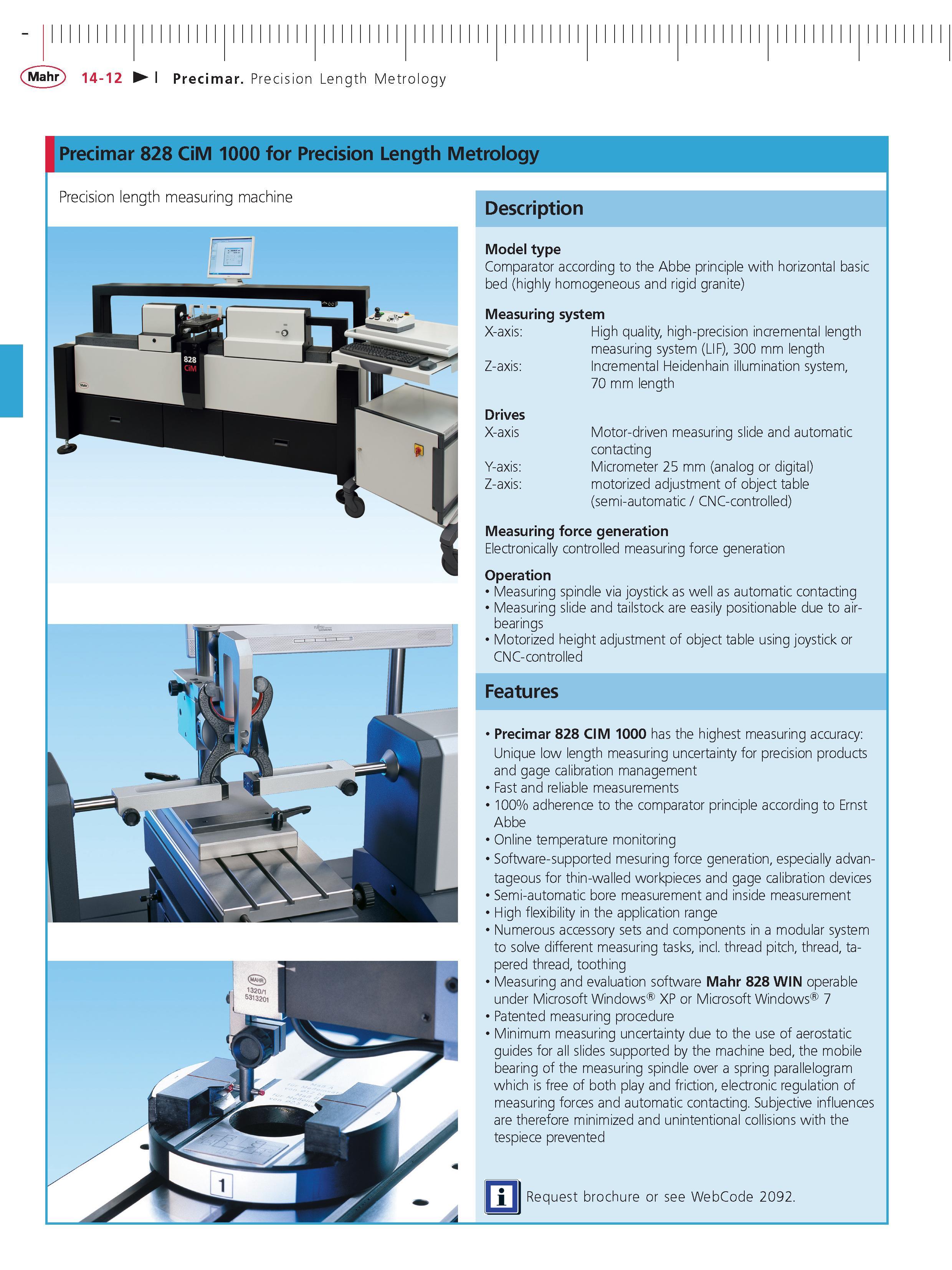

Precimar 828 CiM 1000 for Precision Length Metrology Precision length measuring machine Description Model type Comparator according to the Abbe principle with horizontal basic bed (highly homogeneous and rigid granite) Measuring system X-axis Z-axis Drives X-axis Y-axis Z-axis High quality high-precision incremental length measuring system (LIF) 300 mm length Incremental Heidenhain illumination system 70 mm length Motor-driven measuring slide and automatic contacting Micrometer 25 mm (analog or digital) motorized adjustment of object table (semi-automatic CNC-controlled) Measuring force generation Electronically controlled measuring force generation Operation Measuring spindle via joystick as well as automatic contacting Measuring slide and tailstock are easily positionable due to air-bearings Motorized height adjustment of object table using joystick or CNC-controlled Features Precimar 828 CIM 1000 has the highest measuring accuracy Unique low length measuring uncertainty for precision products and gage calibration management Fast and reliable measurements 100% adherence to the comparator principle according to Ernst Abbe Online temperature monitoring Software-supported mesuring force generation especially advantageous for thin-walled workpieces and gage calibration devices Semi-automatic bore measurement and inside measurement High flexibility in the application range Numerous accessory sets and components in a modular system to solve different measuring tasks incl. thread pitch thread tapered thread toothing Measuring and evaluation software Mahr 828 WIN operable under Microsoft Windows XP or Microsoft Windows 7 Patented measuring procedure Minimum measuring uncertainty due to the use of aerostatic guides for all slides supported by the machine bed the mobile bearing of the measuring spindle over a spring parallelogram which is free of both play and friction electronic regulation of measuring forces and automatic contacting. Subjective influences are therefore minimized and unintentional collisions with the tespiece prevented mi Request brochure or see WebCode 2092.
