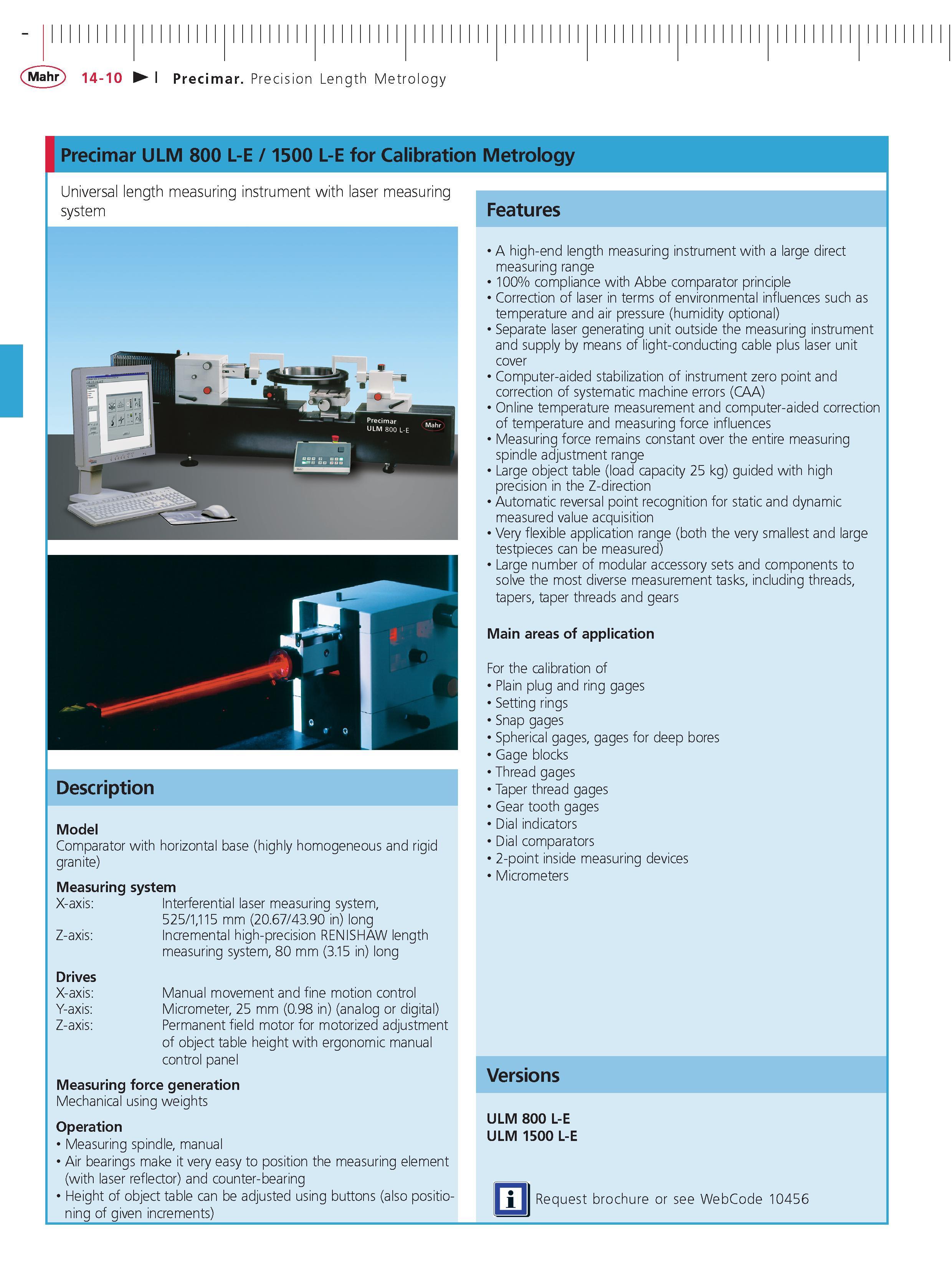

Precimar ULM 800 L-E 1500 L-E for Calibration Metrology Universal length measuring instrument with laser measuring system Description Model Comparator with horizontal base (highly homogeneous and rigid granite) Measuring system X-axis Z-axis Drives X-axis Y-axis Z-axis Interferential laser measuring system 525 1115 mm (20.67 43.90 in) long Incremental high-precision RENISHAW length measuring system 80 mm (3.15 in) long Manual movement and fine motion control Micrometer 25 mm (0.98 in) (analog or digital) Permanent field motor for motorized adjustment of object table height with ergonomic manual control panel Measuring force generation Mechanical using weights Operation Measuring spindle manual Air bearings make it very easy to position the measuring element (with laser reflector) and counter-bearing Height of object table can be adjusted using buttons (also positioning of given increments) Features A high-end length measuring instrument with a large direct measuring range 100% compliance with Abbe comparator principle Correction of laser in terms of environmental influences such as temperature and air pressure (humidity optional) Separate laser generating unit outside the measuring instrument and supply by means of light-conducting cable plus laser unit cover Computer-aided stabilization of instrument zero point and correction of systematic machine errors (CAA) Online temperature measurement and computer-aided correction of temperature and measuring force influences Measuring force remains constant over the entire measuring spindle adjustment range Large object table (load capacity 25 kg) guided with high precision in the Z-direction Automatic reversal point recognition for static and dynamic measured value acquisition Very flexible application range (both the very smallest and large testpieces can be measured) Large number of modular accessory sets and components to solve the most diverse measurement tasks including threads tapers taper threads and gears Main areas of application For the calibration of Plain plug and ring gages Setting rings Snap gages Spherical gages gages for deep bores Gage blocks Thread gages Taper thread gages Gear tooth gages Dial indicators Dial comparators 2-point inside measuring devices Micrometers Versions ULM 800 L-E ULM 1500 L-E m Request brochure or see WebCode 10456
