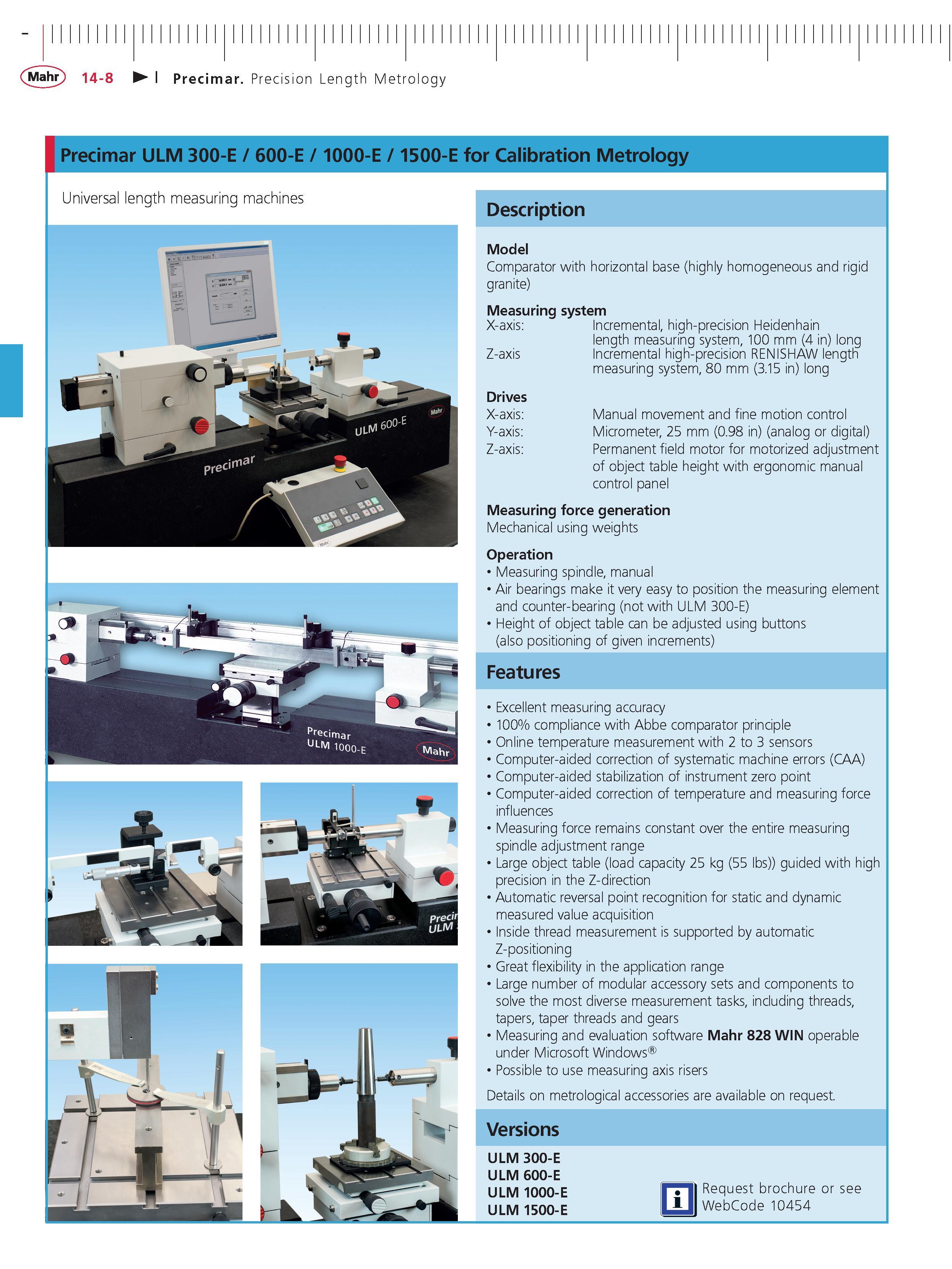

Precimar ULM 300-E 600-E 1000-E 1500-E for Calibration Metrology Universal length measuring machines Description Model Comparator with horizontal base (highly homogeneous and rigid granite) Measuring system X-axis Z-axis Drives X-axis Y-axis Z-axis Incremental high-precision Heidenhain length measuring system 100 mm (4 in) long Incremental high-precision RENISHAW length measuring system 80 mm (3.15 in) long Manual movement and fine motion control Micrometer 25 mm (0.98 in) (analog or digital) Permanent field motor for motorized adjustment of object table height with ergonomic manual control panel Measuring force generation Mechanical using weights Operation Measuring spindle manual Air bearings make it very easy to position the measuring element and counter-bearing (not with ULM 300-E) Height of object table can be adjusted using buttons (also positioning of given increments) Features Excellent measuring accuracy 100% compliance with Abbe comparator principle Online temperature measurement with 2 to 3 sensors Computer-aided correction of systematic machine errors (CAA) Computer-aided stabilization of instrument zero point Computer-aided correction of temperature and measuring force influences Measuring force remains constant over the entire measuring spindle adjustment range Large object table (load capacity 25 kg (55 lbs)) guided with high precision in the Z-direction Automatic reversal point recognition for static and dynamic measured value acquisition Inside thread measurement is supported by automatic Z-positioning Great flexibility in the application range Large number of modular accessory sets and components to solve the most diverse measurement tasks including threads tapers taper threads and gears Measuring and evaluation software Mahr 828 WIN operable under Microsoft Windows Possible to use measuring axis risers Details on metrological accessories are available on request. Versions ULM 300-E ULM 600-E ULM 1000-E ULM 1500-E ED Request brochure or see WebCode 10454
