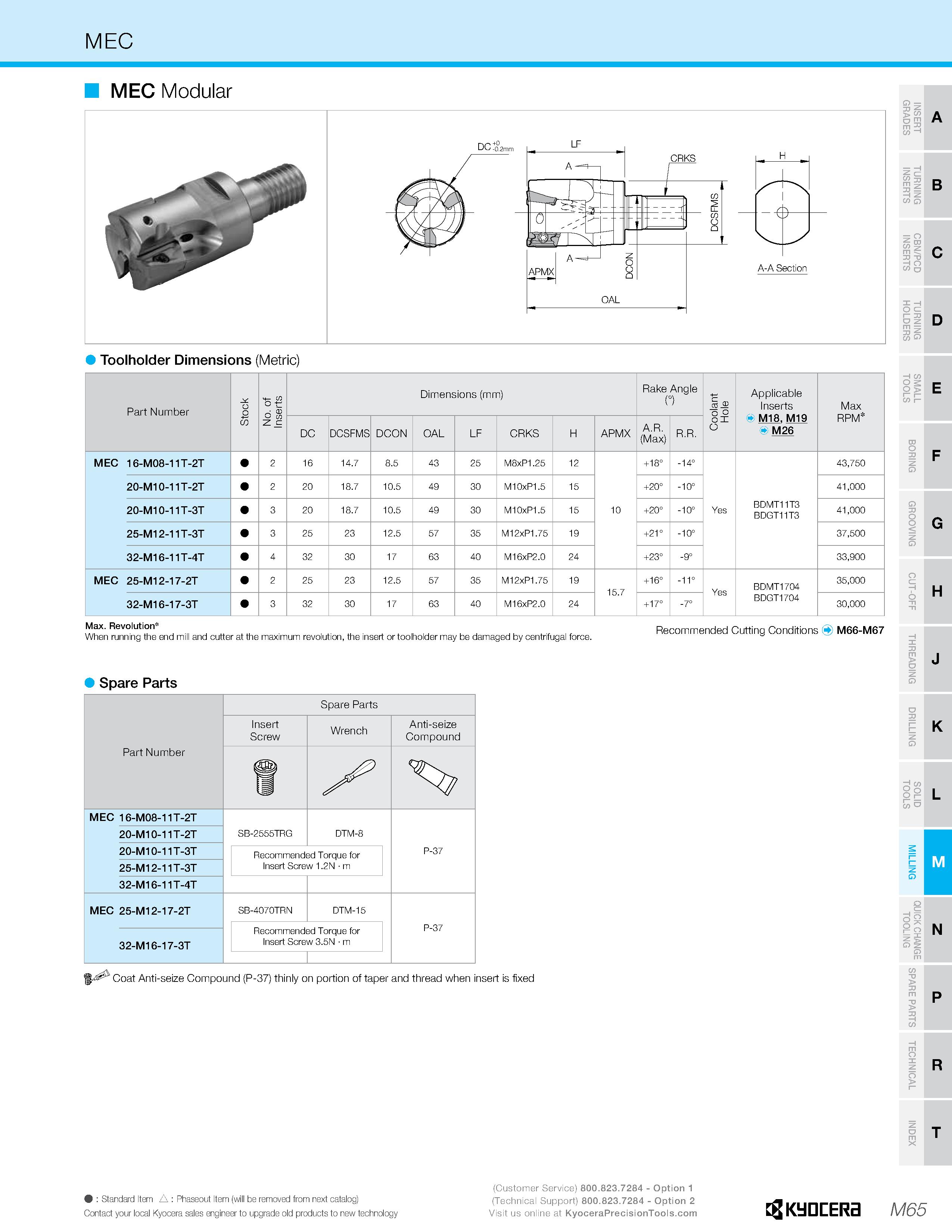

MEC MEC Modular o A 3 A B Toolholder Dimensions (Metric) Part Number o No. of Inserts Dimensions (mm) Rake Angle (°) Applicable Inserts h M18, M19 M26 Max RPM DC DCSFMS DCON OAL LF CRKS H APMX A.R. (Max) R.R. ox o MEC 16-M08-11T-2T 2 16 14.7 8.5 43 25 M8xP1.25 12 +18° -14° 43,750 20-M10-11T-2T 2 20 18.7 10.5 49 30 M10xP1.5 15 +20° -10° 41,000 20-M10-11T-3T 3 20 18.7 10.5 49 30 M10xP1.5 15 10 +20° -10° Yes BDMT11T3 BDGT11T3 41,000 25-M12-11T-3T 3 25 23 12.5 57 35 M12xP1.75 19 +21° -10° 37,500 32-M16-11T-4T 4 32 30 17 63 40 M16xP2.0 24 +23° -9° 33,900 MEC 25-M12-17-2T 2 25 23 12.5 57 35 M12xP1.75 19 15.7 +16° -11° Yes BDMT1704 35,000 32-M16-17-3T 3 32 30 17 63 40 M16xP2.0 24 +17° -7° BDGT1704 30,000 O c= I- T> O m = O S O > O 33 Z Q Max. Revolution'11 When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. o cz -H o H Recommended Cutting Conditions M66-M67 Spare Parts > o z. Q K N Coat Anti-seize Compound (P-37) thinly on portion of taper and thread when insert is fixed APMX : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera M65
