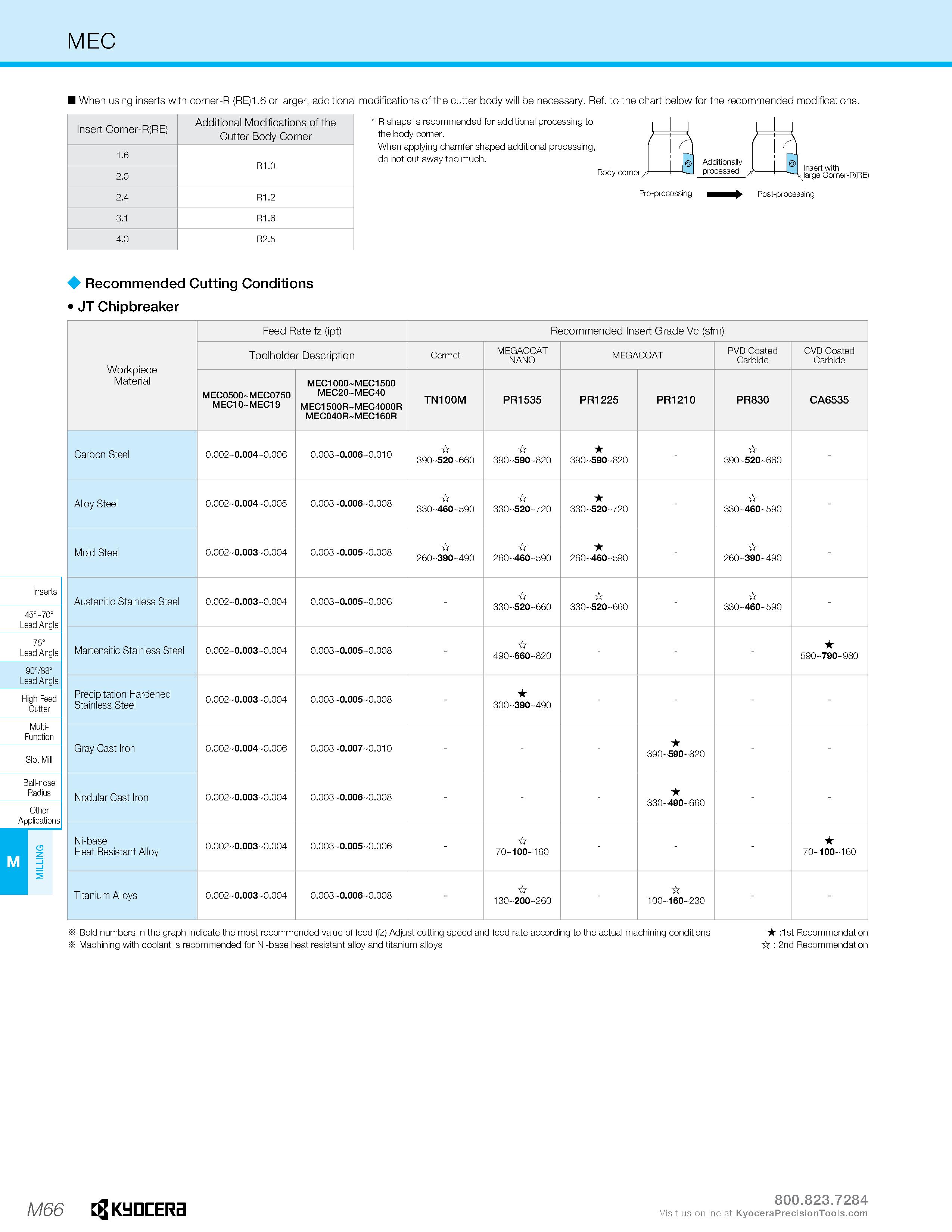

MEC I When using inserts with corner-R (RE)1.6 or larger, additional modifications of the cutter body will be necessary. Ref. to the chart below for the recommended modifications. h Insert Corner-R(RE) Additional Modifications of the Cutter Body Corner 1.6 R1.0 2.0 2.4 R1.2 3.1 R1.6 4.0 R2.5 k R shape is recommended for additional processing to the body corner. When applying chamfer shaped additional processing, do not cut away too much. Insert with large Corner- R(RE) Pre-processing Post-processing Recommended Cutting Conditions JT Chipbreaker Workpiece Material Feed Rate fz (ipt) Recommended Insert Grade Vc (sfm) Toolholder Description Cermet MEGACOAT NANO MEGACOAT PVD Coated Carbide CVD Coated Carbide MEC0500-MEC0750 MEC10-MEC19 MEC1000-MEC1500 MEC20-MEC40 MEC1500R-MEC4000R MEC040R-MEC160R TN100M PR1535 PR1225 PR1210 PR830 CA6535 Carbon Steel 0.002-0.004-0.006 0.003-0.006-0.010 390-520-660 390-590-820 390-590-820 - 390-520-660 - Alloy Steel 0.002-0.004-0.005 0.003-0.006-0.008 330-460-590 330-520-720 330-520-720 - 330-460-590 - Mold Steel 0.002-0.003-0.004 0.003-0.005-0.008 260-390-490 260-460-590 260-460-590 - 260-390-490 - Austen itic Stainless Steel 0.002-0.003-0.004 0.003-0.005-0.006 - 330-520-660 330-520-660 - 330-460-590 - Martensitic Stainless Steel 0.002-0.003-0.004 0.003-0.005-0.008 - 490-660-820 - - - 590-790-980 Precipitation Hardened Stain ess Steel 0.002-0.003-0.004 0.003-0.005-0.008 - 300-390-490 - - - - Gray Cast Iron 0.002-0.004-0.006 0.003-0.007-0.010 - - - 390-590-820 - - Nodular Cast Iron 0.002-0.003-0.004 0.003-0.006-0.008 - - - 330-490-660 - - Ni-base Heat Resistant Alloy 0.002-0.003-0.004 0.003-0.005-0.006 - 70-100-160 - - - 70-100-160 Titanium Alloys 0.002-0.003-0.004 0.003-0.006-0.008 - 130-200-260 - 100-160-230 - - 45" 70" Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications Bold numbers in the graph indicate the most recommended value of feed (fz) Adjust cutting speed and feed rate according to the actual machining conditions Machining with coolant is recommended for Ni-base heat resistant alloy and titanium alloys :1 st Recommendation it: 2nd Recommendation M66 Kyocera Visit us online at
