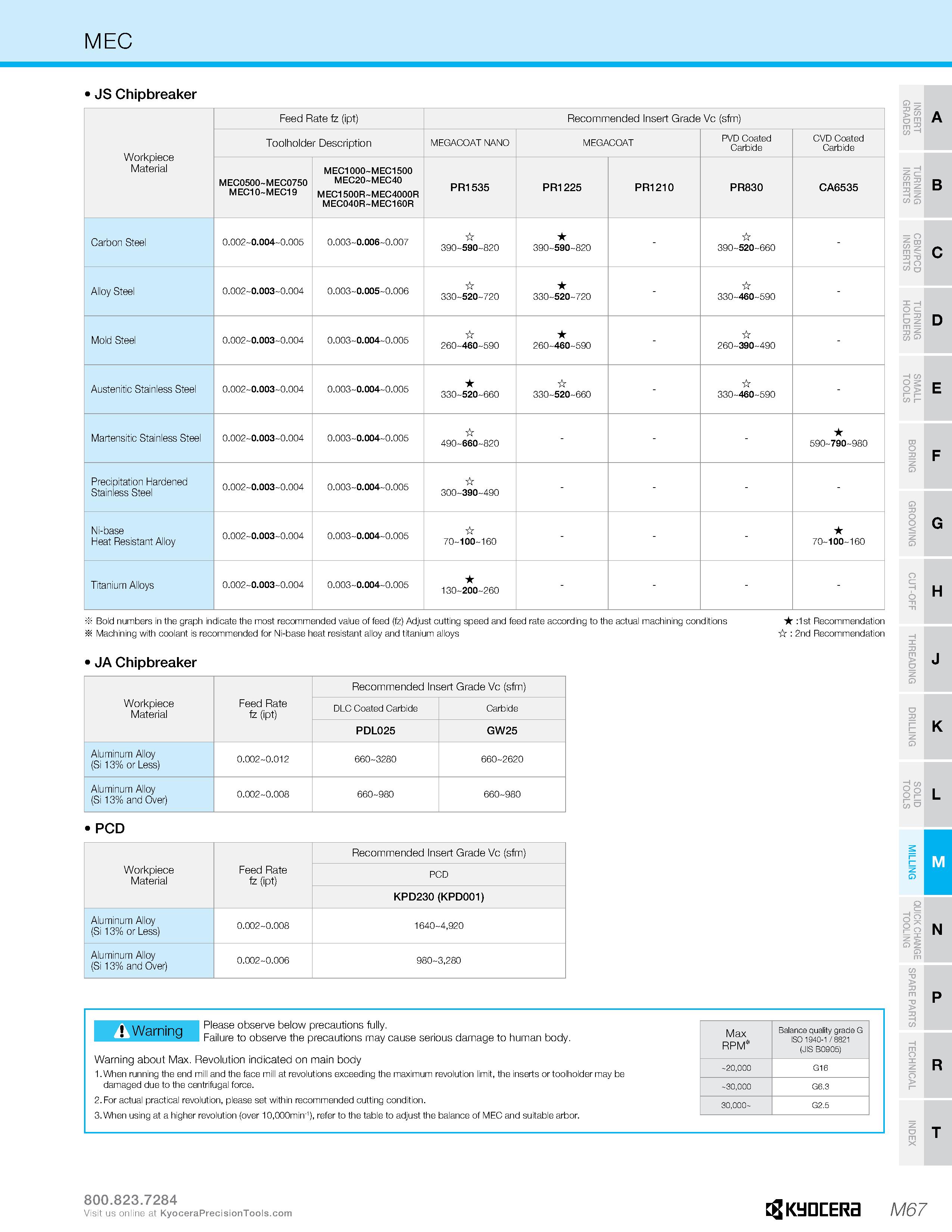

MEC ' JS Chipbreaker Feed Rate fz (ipt) Recommended Insert Grade Vc (sfm) Workpiece Material Toolholder Description MEGACOAT NANO MEGACOAT PVD Coated Carbide CVD Coated Carbide MEC0500 MEC0750 MEC10 MEC19 MEC1000 MEC1500 MEC20 MEC40 MEC1500R MEC4000R MEC040R MEC160R PR1535 PR1225 PR1210 PR830 CA6535 Carbon Steel 0.002 0.004 0.005 0.003 0.006 0.007 390 590 820 390 590 820 390 520 660 - Alloy Steel 0.002 0.003 0.004 0.003 0.005 0.006 330 520 720 330 520 720 330 460 590 - Mold Steel 0.002 0.003 0.004 0.003 0.004 0.005 260 460 590 260 460 590 260 390 490 - Austenitic Stainless Steel 0.002 0.003 0.004 0.003 0.004 0.005 330 520 660 330 520 660 330 460 590 - Martensitic Stainless Steel 0.002 0.003 0.004 0.003 0.004 0.005 490 660 820 590 790 980 Precipitation Hardened Stainless Steel 0.002 0.003 0.004 0.003 0.004 0.005 300 390 490 - Ni-base Heat Resistant Alloy 0.002 0.003 0.004 0.003 0.004 0.005 70 100 160 70 100 160 Titanium Alloys 0.002 0.003 0.004 0.003 0.004 0.005 130 200 260 - O g T> > E D R E R R i= T Z C/5 O DO "O SD B C O c i 33 z D m z S s o> E o g z Q V G O cz - 0 H X Bold numbers in the graph indicate the most recommended value of feed (fz) Adjust cutting speed and feed rate according to the actual machining conditions Machining with coolant is recommended for Ni-base heat resistant alloy and titanium alloys :1st Recommendation : 2nd Recommendation J> Chipbreaker Recommended Insert Grade Vc (sfm) Workpiece Material Feed Rate fz (ipt) DLC Coated Carbide Carbide PDL025 GW25 Aluminum Alloy (Si 13% or Less) 0.002 0.012 660 3280 660 2620 Aluminum Alloy (Si 13% and Over) 0.002 0.008 660 980 660 980 PCD Recommended Insert Grade Vc (sfm) Workpiece Material Feed Rate fz (ipt) PCD KPD230 (KPD001) Aluminum Alloy (Si 13% or Less) 0.002 0.008 1640 4,920 Aluminum Alloy (Si 13% and Over) 0.002 0.006 980 3,280 > g z o K ip N P R I Warning Please observe below precautions fully. Failure to observe the precautions may cause serious damage to human body. Warning about Max. Revolution indicated on main body 1. When running the end mill and the face mill at revolutions exceeding the maximum revolution limit, the inserts or toolholder may be damaged due to the centrifugal force. 2. For actual practical revolution, please set within recommended cutting condition. 3. When using at a higher revolution (over 10,000min-1), refer to the table to adjust the balance of MEC and suitable arbor. Max RPM Balance quality grade G ISO 1940-1 / 8821 (JIS B0905) 20,000 G16 30,000 G6.3 30,000 G2.5 D T E Visit us online at Kyocera M67 F J L M
