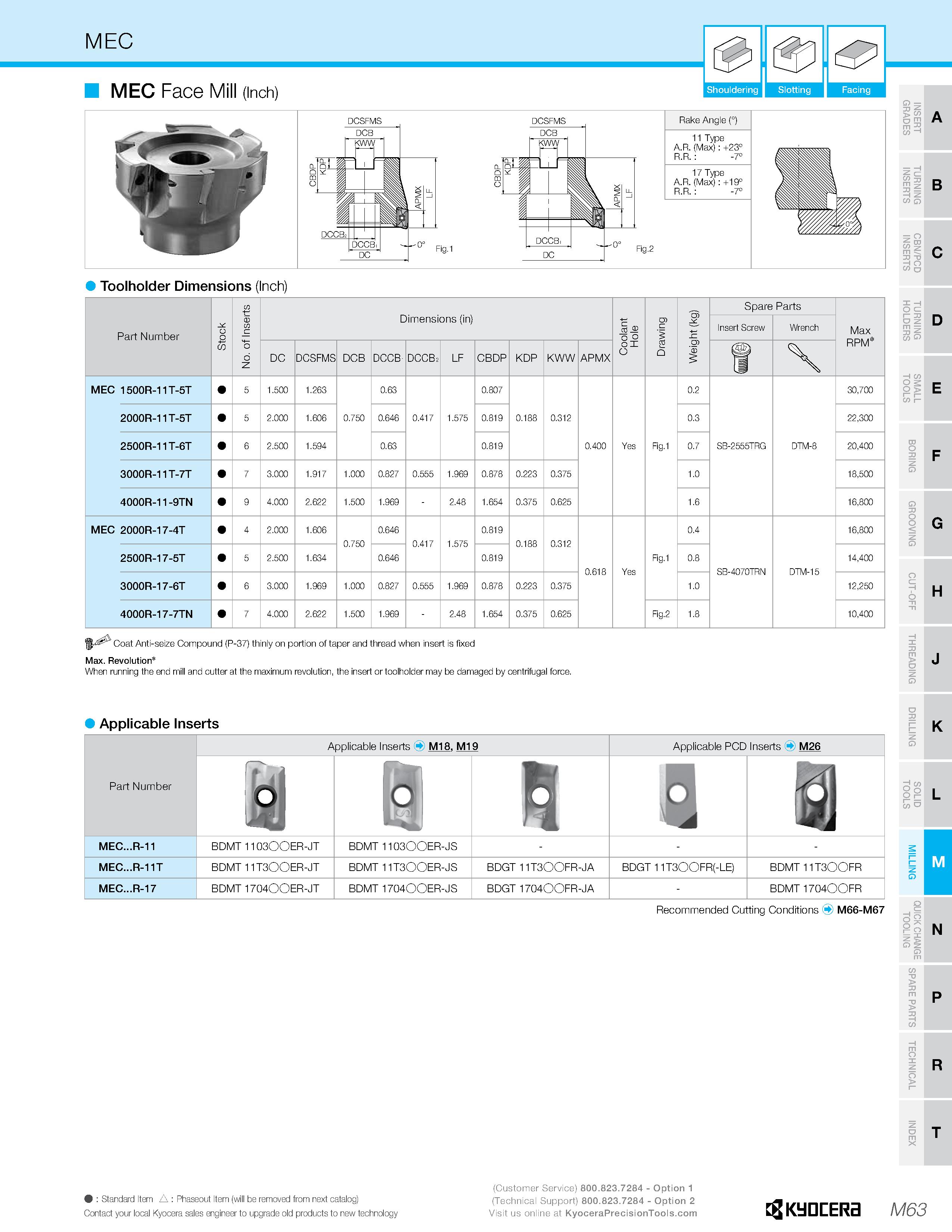

MEC 0 & MEC Face Mill (inch) Shouldering Slotting Facing CJ m m 2 c/) -i %> T> C/> Q B Toolholder Dimensions (Inch) Part Number Stock No. of Inserts Dimensions (in) Coolant Hole Drawing Weight (kg) Spare Parts Max RPM Insert Screw Wrench DC DCSFMS DCB DCCB DCCB LF CBDP KDP KWW APMX f \ MEC 1500R-11T-5T 5 1.500 1.263 0.750 0.63 0.417 1.575 0.807 0.188 0.312 0.400 Yes Fig-1 0.2 SB-2555TRG DTM-8 30,700 2000R-11T-5T 5 2.000 1.606 0.646 0.819 0.3 22,300 2500R-11T-6T 6 2.500 1.594 0.63 0.819 0.7 20,400 3000R-11T-7T 7 3.000 1.917 1.000 0.827 0.555 1.969 0.878 0.223 0.375 1.0 18,500 4000R-11-9TN 9 4.000 2.622 1.500 1.969 2.48 1.654 0.375 0.625 1.6 16,800 MEC 2000R-17-4T 4 2.000 1.606 0.750 0.646 0.417 1.575 0.819 0.188 0.312 0.618 Yes Fig-1 0.4 SB-4070TRN DTM-15 16,800 2500R-17-5T 5 2.500 1.634 0.646 0.819 0.8 14,400 3000R-17-6T 6 3.000 1.969 1.000 0.827 0.555 1.969 0.878 0.223 0.375 1.0 12,250 4000R-17-7TN 7 4.000 2.622 1.500 1.969 2.48 1.654 0.375 0.625 Fig.2 1.8 10,400 TI U S8 O cz I- TI O m = W C5 O c h o 5 z Q O cz -H o > o z. Q H Coat Anti-seize Compound (P-37) thinly on portion of taper and thread when insert is fixed Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Applicable Inserts Part Number Applicable Inserts M18. M19 Applicable PCD Inserts M26 I u C n a l 4 MEC...R-11 BDMT 1103OOER-JT BDMT 1103OOER-JS - - - MEC...R-11T BDMT 11T300ER-JT BDMT 11T3QOER-JS BDGT 11T3QOFR-JA BDGT 11T300FR(-LE) BDMT 11T3QOFR MEC...R-17 BDMT 1704OOER-JT BDMT 1704OOER-JS BDGT 1704OOFR-JA - BDMT 1704OOFR K Recommended Cutting Conditions M66-M67 T Rake Angle (°) 11 Type A.R. (Max): +23° R.R. : -7° 17 Type A.R. (Max): +19° R.R. : -7° DCSFMS DCSFMS : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera M63
