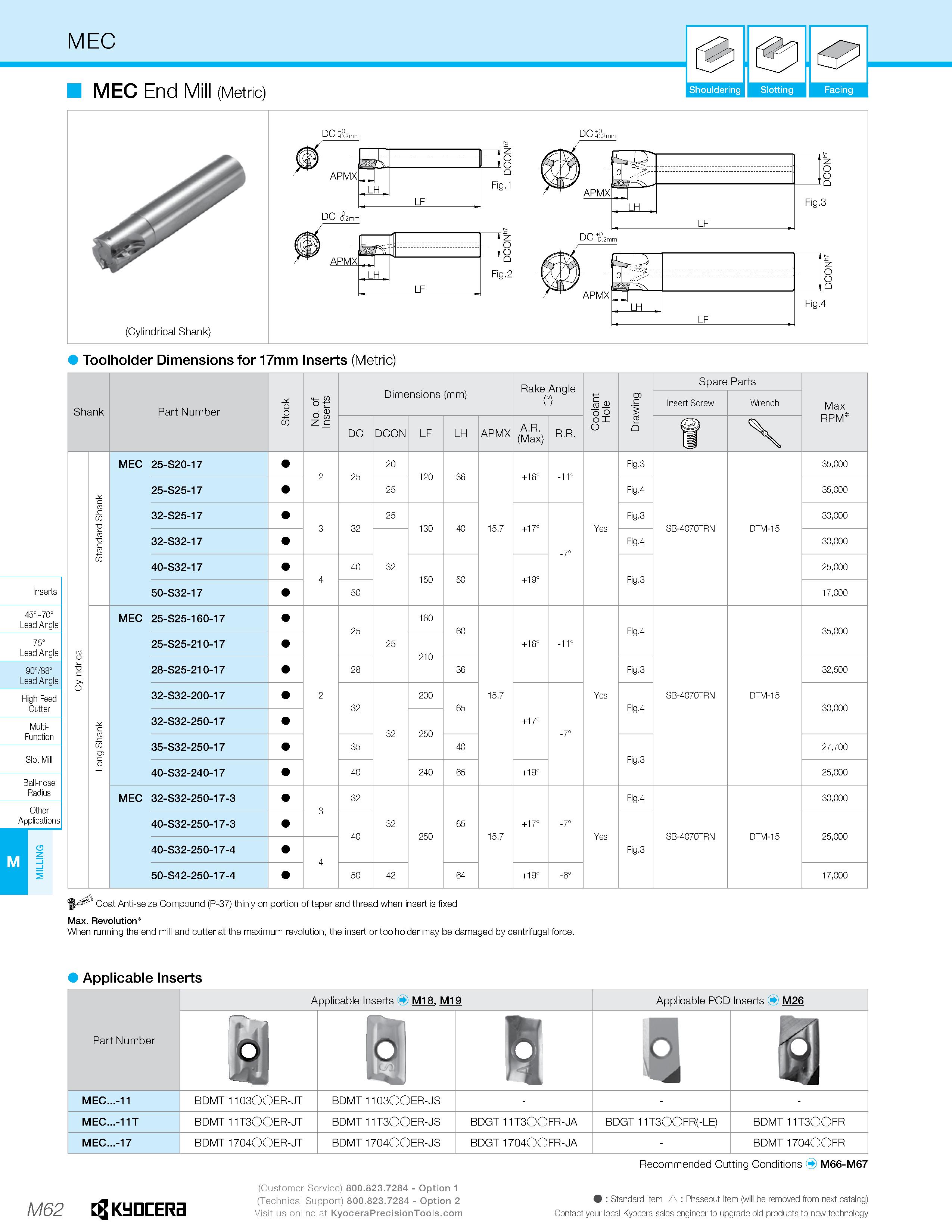

MEC 0 1 MEC End Mill (Metric) Shouldering Slotting Facing Toolholder Dimensions for 17mm Inserts (Metric) 45° 70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function Ball-nose Radius Other Applications Rake Angle (°) Spare Parts Shank Part Number Stock No. of Inserts Dimensions (mm) Coolant Hole Drawing Insert Screw Wrench Max DC DCON LF LH APMX A.R. (Max) R.R. f RPM MEC 25-S20-17 2 25 20 120 36 +16° -11° Fig.3 35,000 Standard Shank 25-S25-17 25 Fig.4 35,000 32-S25-17 3 32 25 130 40 15.7 +17° Yes Fig.3 SB-4070TRN DTM-15 30,000 32-S32-17 -7° Fig.4 30,000 40-S32-17 4 40 32 150 50 +19° Fig.3 25,000 50-S32-17 50 17,000 MEC 25-S25-160-17 25 160 60 Fig.4 35,000 Cylindrical 25-S25-210-17 25 210 +16° -11° 28-S25-210-17 28 36 Fig.3 32,500 32-S32-200-17 2 32 200 65 15.7 Yes Fig.4 SB-4070TRN DTM-15 30,000 Long Shank 32-S32-250-17 32 250 +17° -7° 35-S32-250-17 35 40 Fig.3 27,700 40-S32-240-17 40 240 65 +19° 25,000 MEC 32-S32-250-17-3 3 32 Fig.4 30,000 40-S32-250-17-3 40 32 250 65 15.7 +17° -7° Yes SB-4070TRN DTM-15 25,000 40-S32-250-17-4 4 Fig.3 50-S42-250-17-4 50 42 64 +19° -6° 17,000 Coat Anti-seize Compound (P-37) thinly on portion of taper and thread when insert is fixed Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Applicable Inserts nserts Slot Mill M Part Number Applicable Inserts M18, M19 Applicable PCD Inserts M26 n q MEC...-11 BDMT 1103OOER-JT BDMT 1103OOER-JS MEC...-11T BDMT 11T3OOER-JT BDMT 11T3OOER-JS BDGT 11T3OOFR-JA BDGT 11T3OOFR(-LE) BDMT 11T3OOFR MEC...-17 BDMT 1704OOER-JT BDMT 1704OOER-JS BDGT 1704OOFR-JA BDMT 1704OOFR Recommended Cutting Conditions M66-M67 M62 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
