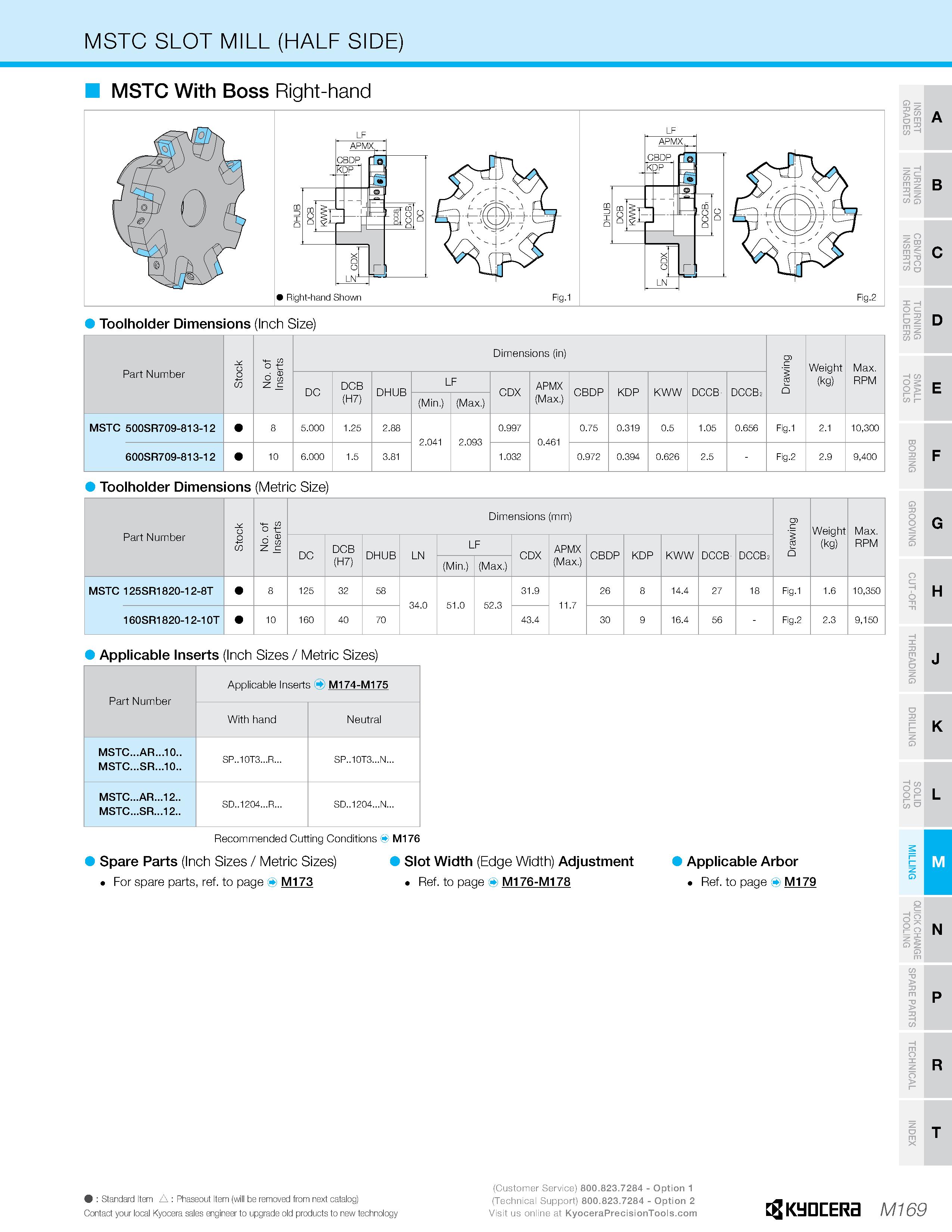

MSTC SLOT MILL (HALF SIDE) MSTC With Boss Right-hand Fig.1 Fig.2 Toolholder Dimensions (Inch Size) Part Number Stock No. of Inserts Dimensions (in) Drawing Weight (kg) Max. RPM DC DCB (H7) DHUB LF CDX APMX (Max.) CBDP KDP KWW DCCB1 DCCB2 (Min.) (Max.) MSTC 500SR709-813-12 8 5.000 1.25 2.88 2.041 2.093 0.997 0.461 0.75 0.319 0.5 1.05 0.656 Fig.1 2.1 10,300 600SR709-813-12 10 6.000 1.5 3.81 1.032 0.972 0.394 0.626 2.5 Fig.2 2.9 9,400 Toolholder Dimensions (Metric Size) Part Number Stock No. of Inserts Dimensions (mm) Drawing Weight (kg) Max. RPM DC DCB (H7) DHUB LN LF CDX APMX (Max.) CBDP KDP KWW DCCB1 DCCB2 (Min.) (Max.) MSTC 125SR1820-12-8T 8 125 32 58 34.0 51.0 52.3 31.9 11.7 26 8 14.4 27 18 Fig.1 1.6 10,350 160SR1820-12-10T 10 160 40 70 43.4 30 9 16.4 56 Fig.2 2.3 9,150 Applicable Inserts (Inch Sizes / Metric Sizes) Part Number Applicable Inserts M174-M175 With hand Neutral MSTC...AR...10.. MSTC...SR...10.. SP..10T3...R... SP..10T3...N... MSTC...AR...12.. MSTC...SR...12.. SD..1204...R... SD..1204...N... Recommended Cutting Conditions M176 Spare Parts (Inch Sizes / Metric Sizes) For spare parts, ref. to page M173 Slot Width (Edge Width) Adjustment Ref. to page M176-M178 Applicable Arbor Ref. to page M179 E R T Z C/5 G DO "O SD B C D 0 s oa E 0 1 N Q O CZ - 0 > I N O G H K N P R F J L M : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera M169
