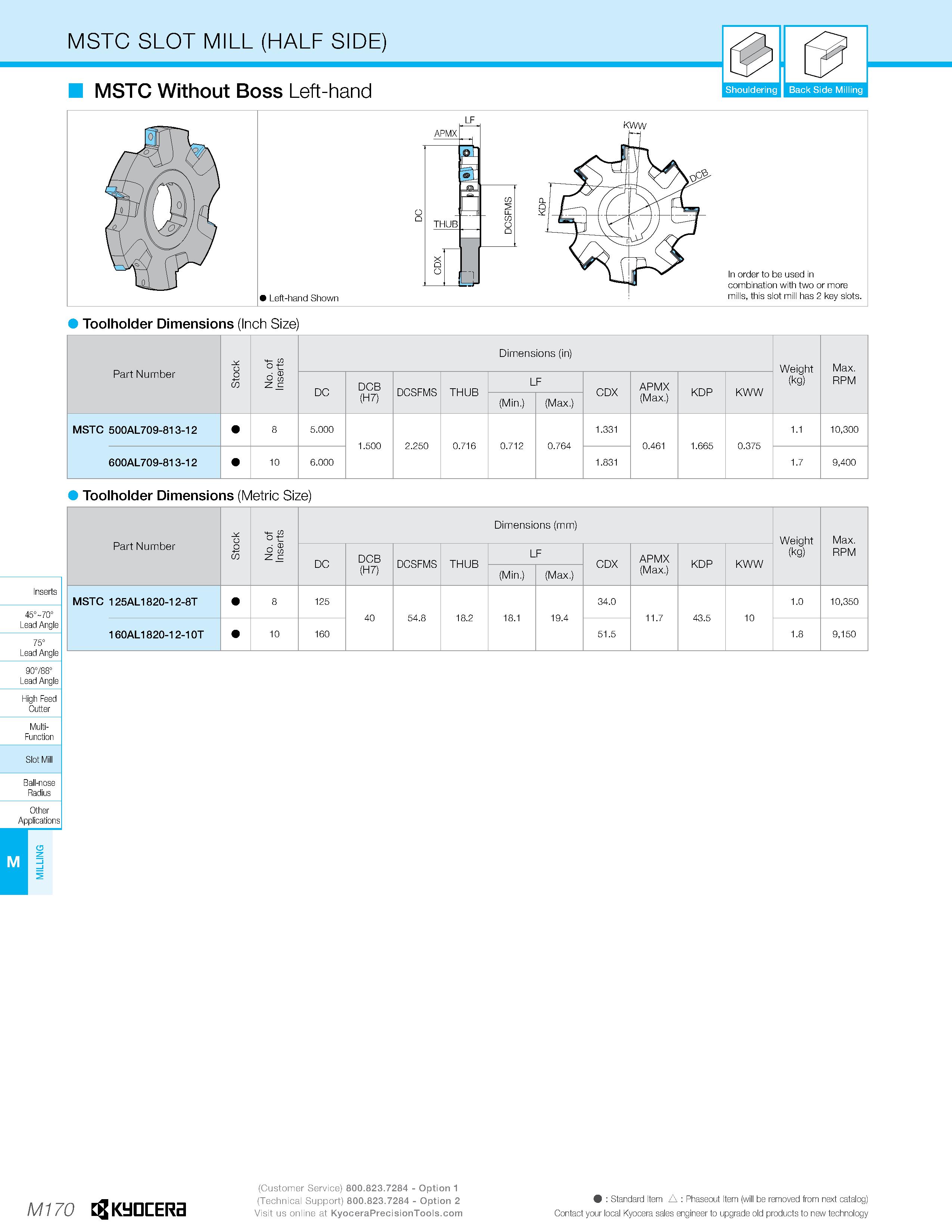

MSTC SLOT MILL (HALF SIDE) MSTC Without Boss Left-hand Shouldering I Back Side Milling KWW Toolholder Dimensions (Inch Size) Part Number Stock No. of Inserts Dimensions (in) Weight (kg) Max. RPM DC DCB (H7) DCSFMS THUB LF CDX APMX (Max.) KDP KWW (Min.) (Max.) MSTC 500AL709-813-12 8 5.000 1.500 2.250 0.716 0.712 0.764 1.331 0.461 1.665 0.375 1.1 10,300 600AL709-813-12 10 6.000 1.831 1.7 9,400 Toolholder Dimensions (Metric Size) 45° 70° Lead Angle 75° Lead Angle 90°/88 Lead Angle High Feed Cutter Multi- Function Ball-nose Radius Other Applications nserts Slot Mill M Part Number Stock No. of Inserts Dimensions (mm) Weight (kg) Max. RPM DC DCB (H7) DCSFMS THUB LF CDX APMX (Max.) KDP KWW (Min.) (Max.) MSTC 125AL1820-12-8T 8 125 40 54.8 18.2 18.1 19.4 34.0 11.7 43.5 10 1.0 10,350 160AL1820-12-10T 10 160 51.5 1.8 9,150 M170 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
