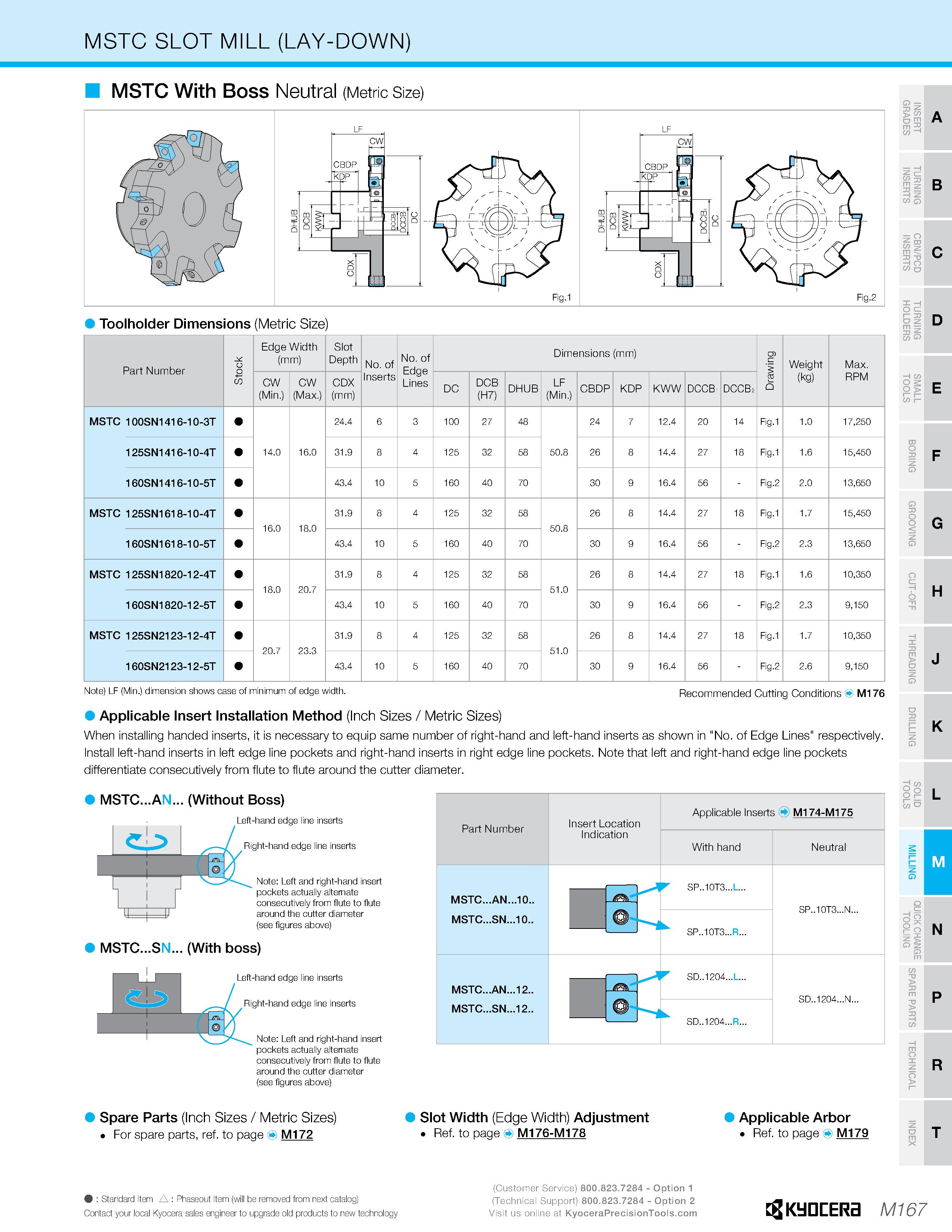

MSTC SLOT MILL (LAY-DOWN) MSTC With Boss Neutral (Metric Size) Toolholder Dimensions (Metric Size) Part Number c ot Edge Width (mm) Slot Depth No. of Inserts No. of Edge Lines Dimensions (mm) Drawing Weight (kg) Max. RPM CW (Min.) CW (Max.) CDX (mm) DC DCB (H7) DHUB LF (Min.) CBDP KDP KWW DCCB1 DCCB2 MSTC 100SN1416-10-3T 14.0 16.0 24.4 6 3 100 27 48 50.8 24 7 12.4 20 14 Fig.1 1.0 17,250 125SN1416-10-4T 31.9 8 4 125 32 58 26 8 14.4 27 18 Fig.1 1.6 15,450 160SN1416-10-5T 43.4 10 5 160 40 70 30 9 16.4 56 Fig.2 2.0 13,650 MSTC 125SN1618-10-4T 16.0 18.0 31.9 8 4 125 32 58 50.8 26 8 14.4 27 18 Fig.1 1.7 15,450 160SN1618-10-5T 43.4 10 5 160 40 70 30 9 16.4 56 Fig.2 2.3 13,650 MSTC 125SN1820-12-4T 18.0 20.7 31.9 8 4 125 32 58 51.0 26 8 14.4 27 18 Fig.1 1.6 10,350 160SN1820-12-5T 43.4 10 5 160 40 70 30 9 16.4 56 Fig.2 2.3 9,150 MSTC 125SN2123-12-4T 20.7 23.3 31.9 8 4 125 32 58 51.0 26 8 14.4 27 18 Fig.1 1.7 10,350 160SN2123-12-5T 43.4 10 5 160 40 70 30 9 16.4 56 Fig.2 2.6 9,150 MSTC...AN... (Without Boss) Left-hand edge line inserts Right-hand edge line inserts Note: Left and right-hand insert pockets actually alternate consecutively from flute to flute around the cutter diameter (see figures above) MSTC...SN... (With boss) Left-hand edge line inserts Right-hand edge line inserts Note: Left and right-hand insert pockets actually alternate consecutively from flute to flute around the cutter diameter (see figures above) E 3 35 T Z C/5 G DO Tl SD B C O c i 33 ON D m N 0 s 0A E 0 1 N Q O cz 0 > I N Q G H Note) LF (Min.) dimension shows case °f minimum of edge width. Recommended Cutting Conditions M176 Applicable Insert Installation Method (Inch Sizes / Metric Sizes) When installing handed inserts, it is necessary to equip same number of right-hand and left-hand inserts as shown in "No. of Edge Lines" respectively. Install left-hand inserts in left edge line pockets and right-hand inserts in right edge line pockets. Note that left and right-hand edge line pockets differentiate consecutively from flute to flute around the cutter diameter. K ip N P R Spare Parts (Inch Sizes / Metric Sizes) For spare parts, ref. to page M172 Slot Width (Edge Width) Adjustment Ref. to page M176-M178 Applicable Arbor Ref. to page M179 D T m F J L M : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera M167
