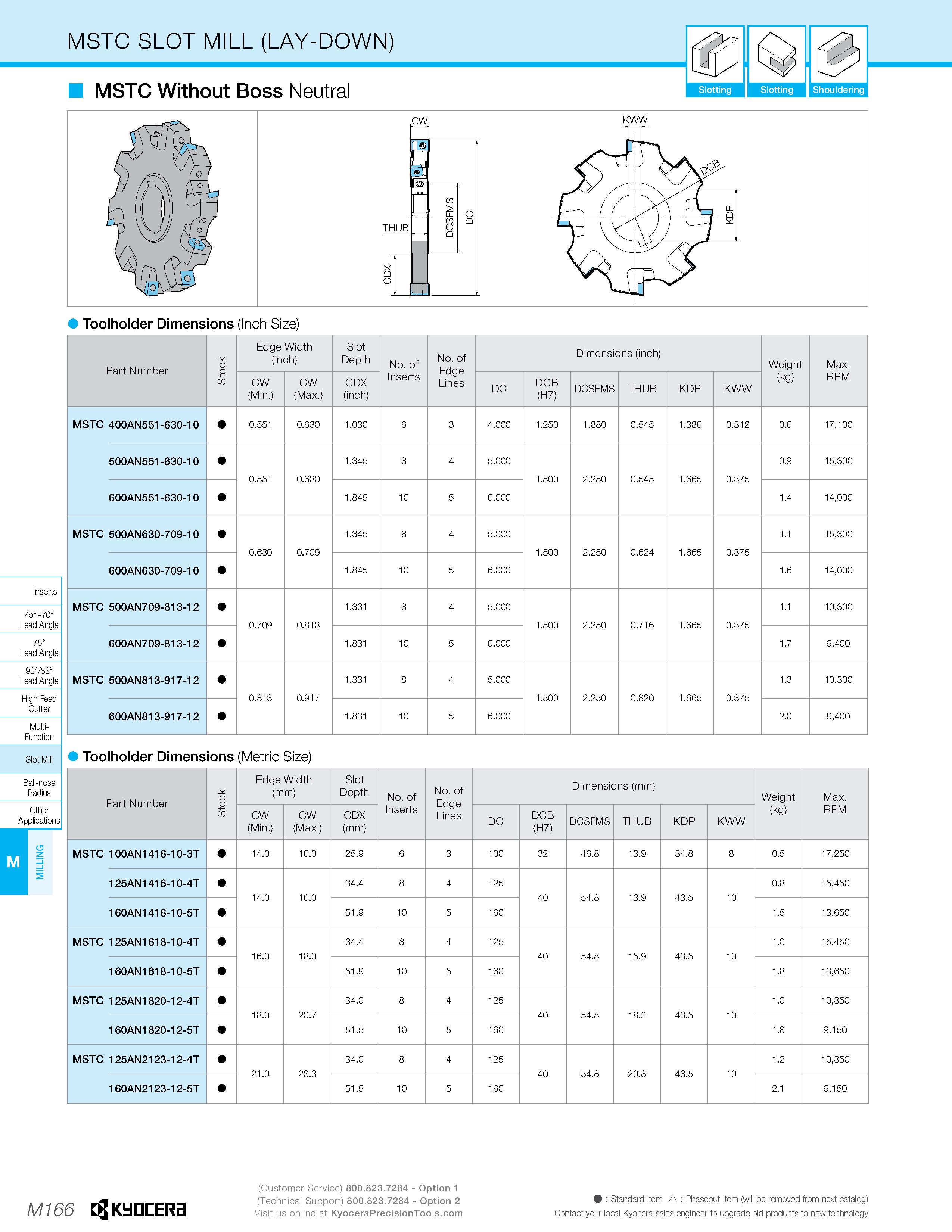

MSTC SLOT MILL (LAY-DOWN) MSTC Without Boss Neutral 03 Slotting Slotting Shouldering Toolholder Dimensions (Inch Size) 45°-70° Lead Angle 75° Lead Angle Part Number c ot Edge Width (inch) Slot Depth No. of Inserts No. of Edge Lines Dimensions (inch) Weight (kg) Max. RPM CW (Min.) CW (Max.) CDX (inch) DC DCB (H7) DCSFMS THUB KDP KWW MSTC 400AZ551-630-10 0.551 0.630 1.030 6 3 4.000 1.250 1.880 0.545 1.386 0.312 0.6 17,100 500AZ551-630-10 0.551 0.630 1.345 8 4 5.000 1.500 2.250 0.545 1.665 0.375 0.9 15,300 600AZ551-630-10 1.845 10 5 6.000 1.4 14,000 MSTC 500AZ630-709-10 0.630 0.709 1.345 8 4 5.000 1.500 2.250 0.624 1.665 0.375 1.1 15,300 600AZ630-709-10 1.845 10 5 6.000 1.6 14,000 MSTC 500AZ709-813-12 0.709 0.813 1.331 8 4 5.000 1.500 2.250 0.716 1.665 0.375 1.1 10,300 600AZ709-813-12 1.831 10 5 6.000 1.7 9,400 MSTC 500AZ813-917-12 0.813 0.917 1.331 8 4 5.000 1.500 2.250 0.820 1.665 0.375 1.3 10,300 600AZ813-917-12 1.831 10 5 6.000 2.0 9,400 90°/88° Lead Angle High Feed Cutter Multi- Function Toolholder Dimensions (Metric Size) Ball-nose Radius Other Applications Part Number c ot tS Edge Width (mm) Slot Depth No. of Inserts No. of Edge Lines Dimensions (mm) Weight (kg) Max. RPM CW (Min.) CW (Max.) CDX (mm) DC DCB (H7) DCSFMS THUB KDP KWW MSTC 100AZ1416-10-3T 14.0 16.0 25.9 6 3 100 32 46.8 13.9 34.8 8 0.5 17,250 125AZ1416-10-4T 14.0 16.0 34.4 8 4 125 40 54.8 13.9 43.5 10 0.8 15,450 160AZ1416-10-5T 51.9 10 5 160 1.5 13,650 MSTC 125AZ1618-10-4T 16.0 18.0 34.4 8 4 125 40 54.8 15.9 43.5 10 1.0 15,450 160AZ1618-10-5T 51.9 10 5 160 1.8 13,650 MSTC 125AZ1820-12-4T 18.0 20.7 34.0 8 4 125 40 54.8 18.2 43.5 10 1.0 10,350 160AZ1820-12-5T 51.5 10 5 160 1.8 9,150 MSTC 125AZ2123-12-4T 21.0 23.3 34.0 8 4 125 40 54.8 20.8 43.5 10 1.2 10,350 160AZ2123-12-5T 51.5 10 5 160 2.1 9,150 M166 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology nserts Slot Mill M
