1133 Каталог KYOCERA 2019 Режущий инструмент для металлообработки на станках Стр.M163

Каталог KYOCERA 2019 Режущий инструмент по металлу Стр. M163 1133 Lab2u

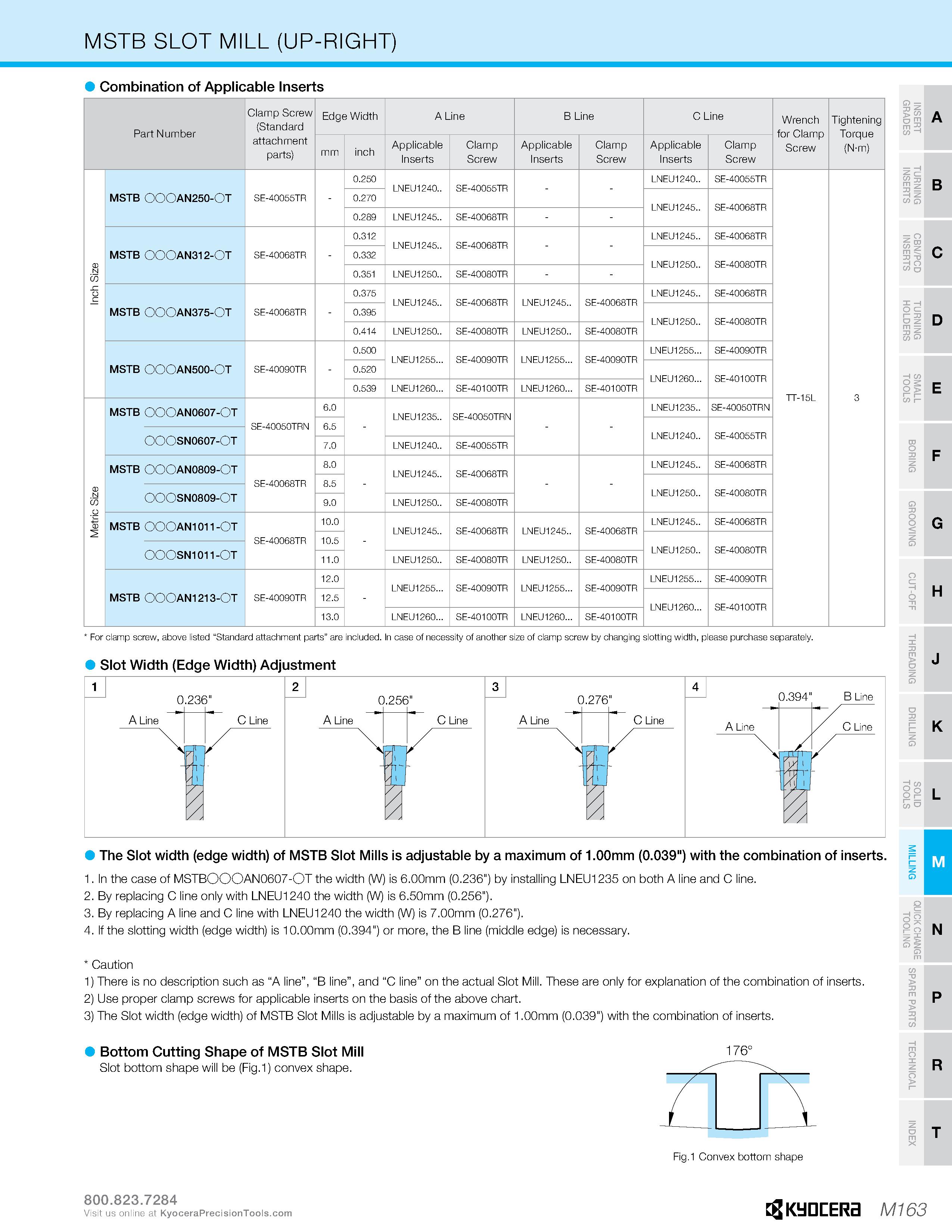

MSTB SLOT MILL (UP-RIGHT) Combination of Applicable Inserts Clamp Screw (Standard Edge Width A Line B Line C Line Wrench for Clamp Screw Tightening Torque (N-m) attachment parts) mm inch Applicable Inserts Clamp Screw Applicable Inserts Clamp Screw Applicable Inserts Clamp Screw 0.250 LNEU1240.. SE-40055TR LNEU1240.. SE-40055TR MSTB OOOAN250-OT SE-40055TR 0.270 LNEU1245.. SE-40068TR 0.289 LNEU1245.. SE-40068TR 0.312 LNEU1245.. SE-40068TR LNEU1245.. SE-40068TR Inch Size MSTB OOOAN312-OT SE-40068TR 0.332 LNEU1250.. SE-40080TR 0.351 LNEU1250.. SE-40080TR 0.375 LNEU1245.. SE-40068TR LNEU1245.. SE-40068TR LNEU1245.. SE-40068TR MSTB OOOAN375-OT SE-40068TR 0.395 LNEU1250.. SE-40080TR 0.414 LNEU1250.. SE-40080TR LNEU1250.. SE-40080TR 0.500 LNEU1255... SE-40090TR LNEU1255... SE-40090TR LNEU1255... SE-40090TR MSTB OOOAN500-OT SE-40090TR 0.520 LNEU1260... SE-40100TR 0.539 LNEU1260... SE-40100TR LNEU1260... SE-40100TR TT-15L 3 MSTB OOOAN0607-OT 6.0 LNEU1235.. SE-40050TRN LNEU1235.. SE-40050TRN SE-40050TRN 6.5 OOOSN0607-OT LNEU1240.. SE-40055TR 7.0 LNEU1240.. SE-40055TR MSTB OOOAN0809-OT 8.0 LNEU1245.. SE-40068TR LNEU1245.. SE-40068TR SE-40068TR 8.5 Metric Size OOOSN0809-OT LNEU1250.. SE-40080TR 9.0 LNEU1250.. SE-40080TR MSTB OOOAN1011-OT 10.0 LNEU1245.. SE-40068TR LNEU1245.. SE-40068TR LNEU1245.. SE-40068TR SE-40068TR 10.5 OOOSN1011-OT LNEU1250.. SE-40080TR 11.0 LNEU1250.. SE-40080TR LNEU1250.. SE-40080TR 12.0 LNEU1255... SE-40090TR LNEU1255... SE-40090TR LNEU1255... SE-40090TR MSTB OOOAN1213-OT SE-40090TR 12.5 LNEU1260... SE-40100TR 13.0 LNEU1260... SE-40100TR LNEU1260... SE-40100TR E R T Z C/5 O DO "O SD B C O c i 33 ON D m N 0 s o> E 0 1 N Q O cz - 0 > I N O G H For clamp screw, above listed “Standard attachment parts” are included. In case of necessity of another size of clamp screw by changing slotting width, please purchase separately. Slot Width (Edge Width) Adjustment 1 0.236" 2 0.256" 3 0.276" 4 0.394" B Line K The Slot width (edge width) of MSTB Slot Mills is adjustable by a maximum of 1.00mm (0.039") with the combination of inserts. 1. In the case of MSTBOOOAN0607-OT the width (W) is 6.00mm (0.236") by installing LNEU1235 on both A line and C line. 2. By replacing C line only with LNEU1240 the width (W) is 6.50mm (0.256"). 3. By replacing A line and C line with LNEU1240 the width (W) is 7.00mm (0.276"). 4. If the slotting width (edge width) is 10.00mm (0.394") or more, the B line (middle edge) is necessary. . These are only for explanation of the combination of inserts. Caution 1) There is no description such as “A line”, “B line”, and “C line” on the actual Slot I 2) Use proper clamp screws for applicable inserts on the basis of the above chart. 3) The Slot width (edge width) of MSTB Slot Mills is adjustable by a maximum of 1.00mm (0.039") with the combination of inserts. Bottom Cutting Shape of MSTB Slot Mill Slot bottom shape will be (Fig.1) convex shape. 176° N P R T Fig.1 Convex bottom shape F J L M Visit us online at IVII63
