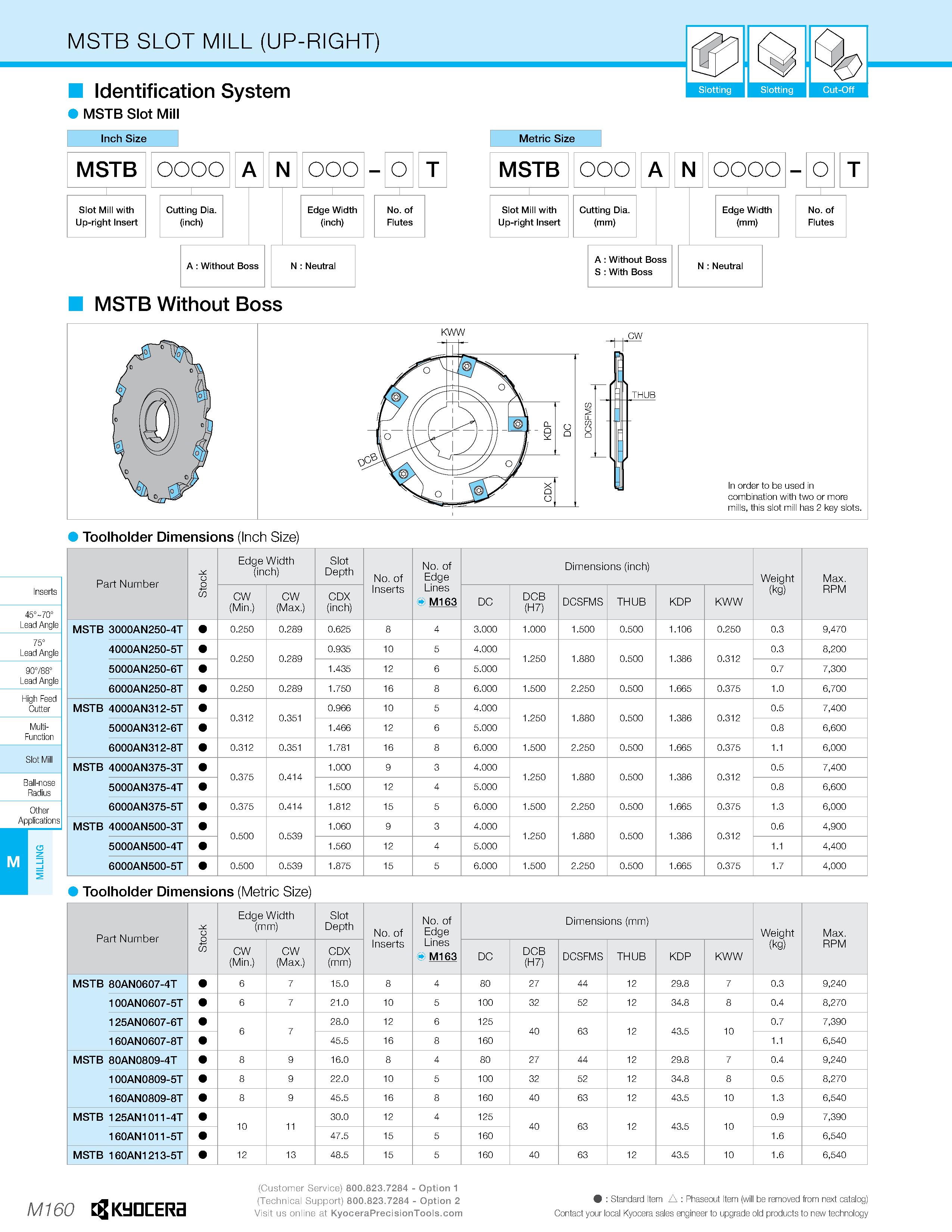

MSTB SLOT MILL (UP-RIGHT) Identification System MSTB Slot Mill Inch Size Slotting I Slotting I Cut-Off Metric Size 45° 70° Lead Angle 75° Lead Angle 90°/88° Lead Angle High Feed Cutter Multi- Function Ball-nose Radius Other Applications MSTB oooo A N ooo o T MSTB ooo A N oooo o T Slot Mill with Up-right Insert Cutting Dia. (inch) A : Without Boss Edge Width (inch) No. of Flutes Slot Mill with Up-right Insert Cutting Dia. (mm) A : Without Boss S : With Boss Edge Width (mm) No. of Flutes MSTB Without Boss KWW In order to be used in combination with two or more mills, this slot mill has 2 key slots. Toolholder Dimensions (Inch Size) Part Number c ot tS Edge Width (inch) Slot Depth No. of Inserts No. of Edge Lines M163 Dimensions (inch) Weight (kg) Max. RPM CW (Min.) CW (Max.) CDX (inch) DC DCB (H7) DCSFMS THUB KDP KWW MSTB 3000AN250-4T 0.250 0.289 0.625 8 4 3.000 1.000 1.500 0.500 1.106 0.250 0.3 9,470 4000AN250-5T 0.250 0.289 0.935 10 5 4.000 1.250 1.880 0.500 1.386 0.312 0.3 8,200 5000AN250-6T 1.435 12 6 5.000 0.7 7,300 6000AN250-8T 0.250 0.289 1.750 16 8 6.000 1.500 2.250 0.500 1.665 0.375 1.0 6,700 MSTB 4000AN312-5T 0.312 0.351 0.966 10 5 4.000 1.250 1.880 0.500 1.386 0.312 0.5 7,400 5000AN312-6T 1.466 12 6 5.000 0.8 6,600 6000AN312-8T 0.312 0.351 1.781 16 8 6.000 1.500 2.250 0.500 1.665 0.375 1.1 6,000 MSTB 4000AN375-3T 0.375 0.414 1.000 9 3 4.000 1.250 1.880 0.500 1.386 0.312 0.5 7,400 5000AN375-4T 1.500 12 4 5.000 0.8 6,600 6000AN375-5T 0.375 0.414 1.812 15 5 6.000 1.500 2.250 0.500 1.665 0.375 1.3 6,000 MSTB 4000AN500-3T 0.500 0.539 1.060 9 3 4.000 1.250 1.880 0.500 1.386 0.312 0.6 4,900 5000AN500-4T 1.560 12 4 5.000 1.1 4,400 6000AN500-5T 0.500 0.539 1.875 15 5 6.000 1.500 2.250 0.500 1.665 0.375 1.7 4,000 Toolholder Dimensions (Metric Size) Part Number c ot tS Edge Width (mm) Slot Depth No. of Inserts No. of Edge Lines M163 Dimensions (mm) Weight (kg) Max. RPM CW (Min.) CW (Max.) CDX (mm) DC DCB (H7) DCSFMS THUB KDP KWW MSTB 80AN0607-4T 6 7 15.0 8 4 80 27 44 12 29.8 7 0.3 9,240 100AN0607-5T 6 7 21.0 10 5 100 32 52 12 34.8 8 0.4 8,270 125AN0607-6T 6 7 28.0 12 6 125 40 63 12 43.5 10 0.7 7,390 160AN0607-8T 45.5 16 8 160 1.1 6,540 MSTB 80AN0809-4T 8 9 16.0 8 4 80 27 44 12 29.8 7 0.4 9,240 100AN0809-5T 8 9 22.0 10 5 100 32 52 12 34.8 8 0.5 8,270 160AN0809-8T 8 9 45.5 16 8 160 40 63 12 43.5 10 1.3 6,540 MSTB 125AN1011-4T 10 11 30.0 12 4 125 40 63 12 43.5 10 0.9 7,390 160AN1011-5T 47.5 15 5 160 1.6 6,540 MSTB 160AN1213-5T 12 13 48.5 15 5 160 40 63 12 43.5 10 1.6 6,540 M160 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology N : Neutral N : Neutral nserts Slot Mill M
